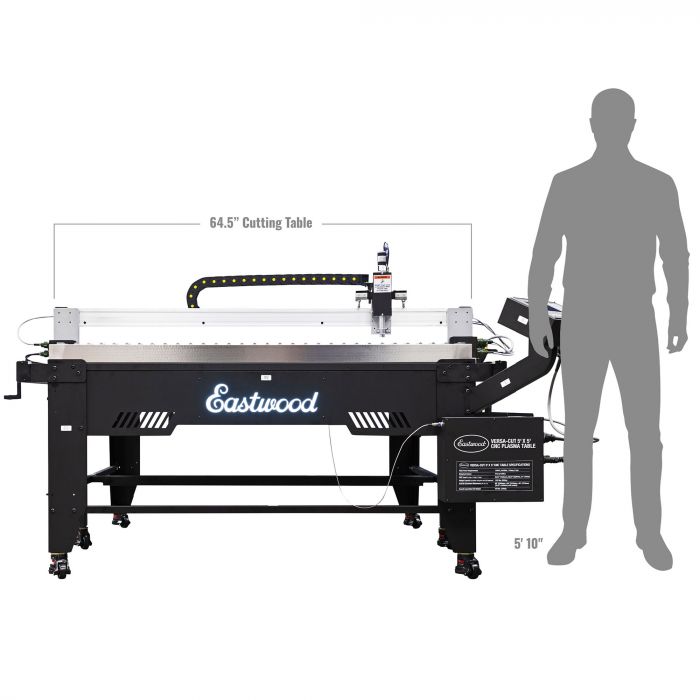

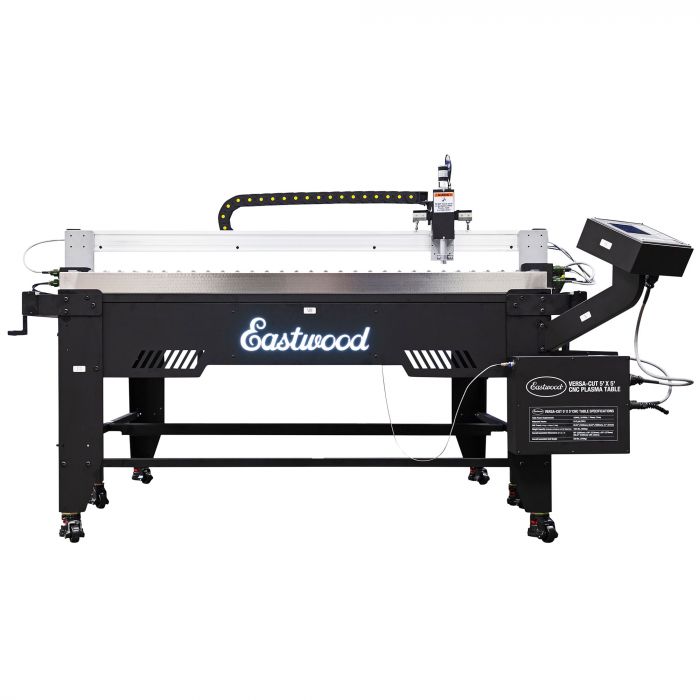

Eastwood Versa-Cut 5x5 CNC Plasma Cutting Table

Professional-Grade 60" × 60" Precision Motion System, Integrated Standalone Color LCD Controller, Automatic Torch Height Control, 54-Gallon Water Table, and Rigid Double-Sided Gantry

Bring industrial-level metal fabrication, highly accurate component manufacturing, and rapid prototyping capabilities directly to your shop with the Eastwood Versa-Cut 5x5 CNC Plasma Cutting Table. Custom-engineered to offer small production shops, custom builders, and serious fabricators the features of a high-end commercial machine, this 5-foot by 5-foot CNC system handles full $4\text{-ft} \times 4\text{-ft}$ or oversized pre-cut metal sheets straight from the mill. It eliminates the high cost, complex software setups, and separate laptop requirements of standard hobbyist tables.

The system features an independent, integrated color LCD controller that operates completely free of a separate shop PC—simply load your standard G-code files directly via a USB flash drive. Built on a rigid, all-welded steel chassis with a robust double-sided gantry, the torch is driven by high-torque stepper motors and a high-precision rack-and-pinion drive system to deliver an outstanding movement accuracy of $\pm0.2\text{ mm}$. Equipped with standard Automatic Torch Height Control (THC) to prevent torch tip crashes, integrated limit switches, and a massive 54.3-gallon water bed to reduce fumes, sparks, and material warping, the Versa-Cut 5x5 is a complete, turnkey cutting solution.

Key Product Features & Core Engineering

• Generous 5' x 5' Cutting Envelope: Features a full $60\text{-in.} \times 60\text{-in.}$ torch travel area to handle oversized sheets, nest multiple parts, or execute diagonal cuts on long panels.

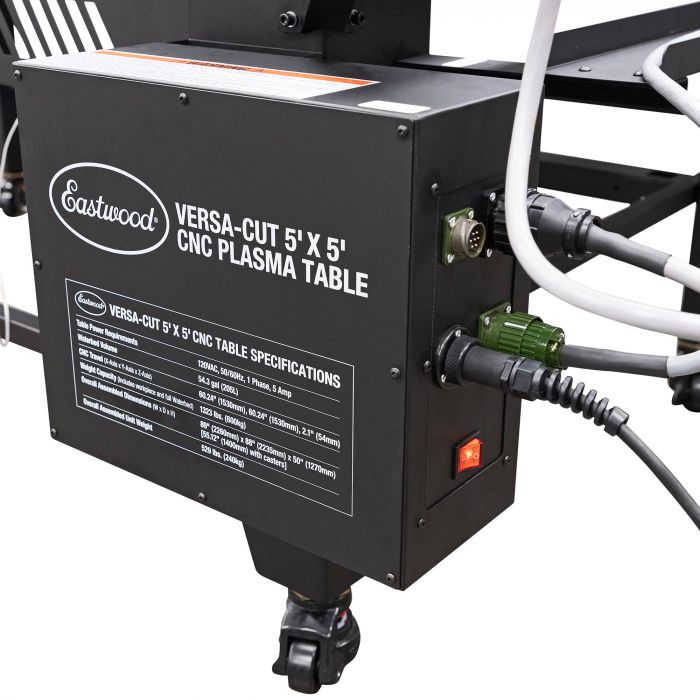

• Standalone Touchscreen Controller: Outfitted with an integrated color LCD CNC computer that eliminates the need for a separate, delicate shop laptop. Simply plug in a USB drive with your G-code designs and cut.

• Double-Sided Gantry Rigidity: Powered by dual Y-axis stepper motors to ensure stable, flex-free gantry movement, leading to clean, completely square-cut edges.

• All-Inclusive Advanced Features: Includes Automatic Torch Height Control (THC), integrated safety limit switches, and heavy-duty locking casters as standard equipment rather than expensive add-ons.

• Integrated 54-Gallon Water Table: Designed with an integrated, high-volume water pan that suppresses sparks, reduces noise, and cools the workpiece to prevent thermal warping.

• Open-Frame Pass-Through Design: Open-sided frame allows long stock pieces to pass directly through the cutting area for processing larger plates in stages.

• Blowback-Start Compatibility: Engineered for flawless, plug-and-play operation with the Eastwood Versa-Cut 40A or 60A CNC plasma cutters, or any standard low-frequency blowback-start plasma unit.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Eastwood Versa-Cut 5x5 CNC Plasma Table Frame & Legs Assembly

• 1 × Double-Sided X-Axis Gantry Beam and Y-Axis Gantry Tracks

• 1 × Integrated Standalone Color LCD CNC Controller Console & Mounting Arm

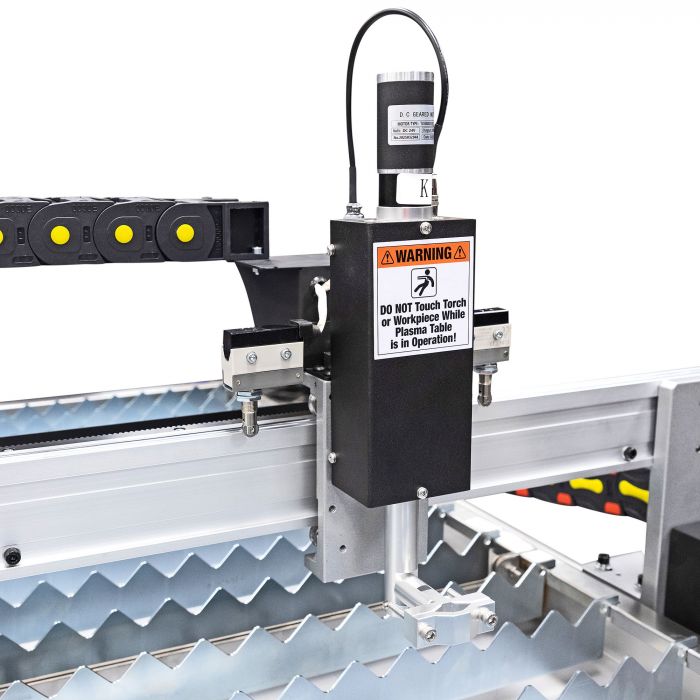

• 1 × Automatic Torch Height Control (THC) Motor Assembly

• 1 × Master 54.3-Gallon Water Table Base (Front and Rear Pan halves)

• 20 × Heavy-Duty Replaceable Water Table Slats

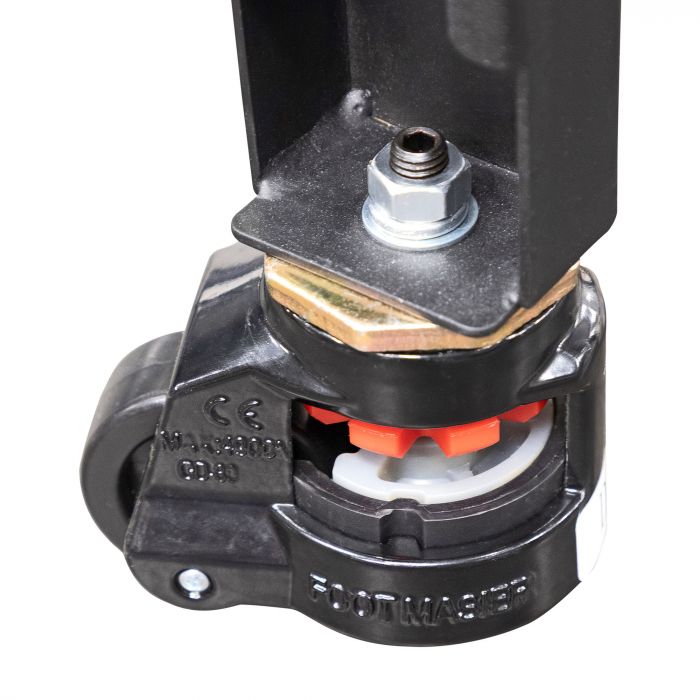

• 6 × Heavy-Duty Leveling and Locking Swivel Casters

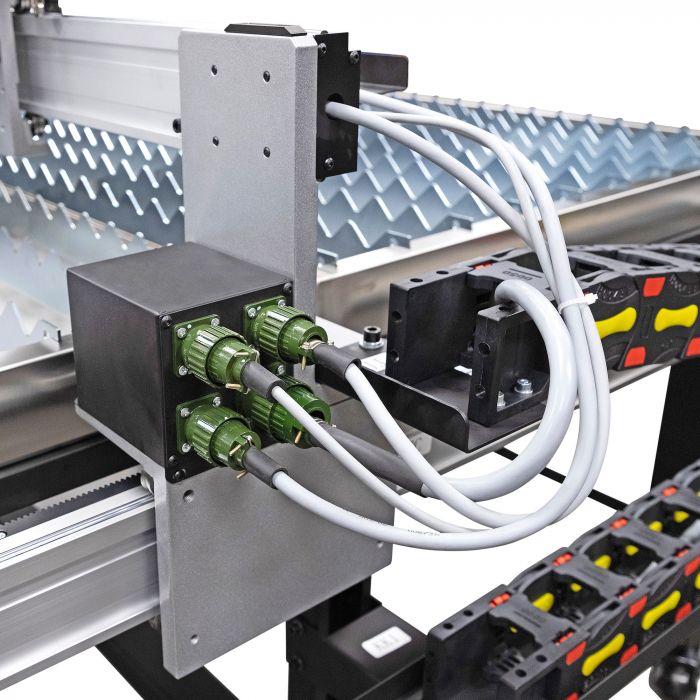

• 1 × Complete CNC Table Wiring Harness, Limit Switches, Drag Chains, and Assembly Hardware Kit

Critical Field Installation & Operational Guidelines

• Precise Frame Squaring During Assembly: Keep all frame and leg bolts hand-tight until the entire table structure is fully built, leveled, and squared using a diagonal measurement check. Once completely square, torque down all fasteners. This ensures the dual-sided gantry tracks remain perfectly parallel to prevent any binding during fast travel moves.

• Strict Low-Frequency Plasma Source Rule: Only use plasma cutters that feature a blowback (low-frequency) start mechanism (such as the Eastwood Versa-Cut 40/60 CNC cutters). Never connect a high-frequency start plasma cutter to this table, as the high-frequency electrical arc discharge can severely damage or destroy the sensitive CNC control box electronics.

• Water Table Rust Inhibitor Fluid: To prevent rust on your steel parts, minimize dross buildup, and prevent the water pan from corroding, always fill the table with a mixture of clean water and a specialized CNC plasma cutting fluid (such as Eastwood's 5-Gallon Cutting Fluid). Do not use plain tap water alone.

• Linear Rails and Gear Rack Cleaning: Wipe down the polished steel linear guide rails and gear racks weekly with a dry microfiber cloth to remove metal dust and slag overspray. Apply a very thin layer of dry PTFE spray lubricant to keep travel smooth. Avoid sticky oils or grease, which trap metallic dust and wear down the stepper drive gears.
