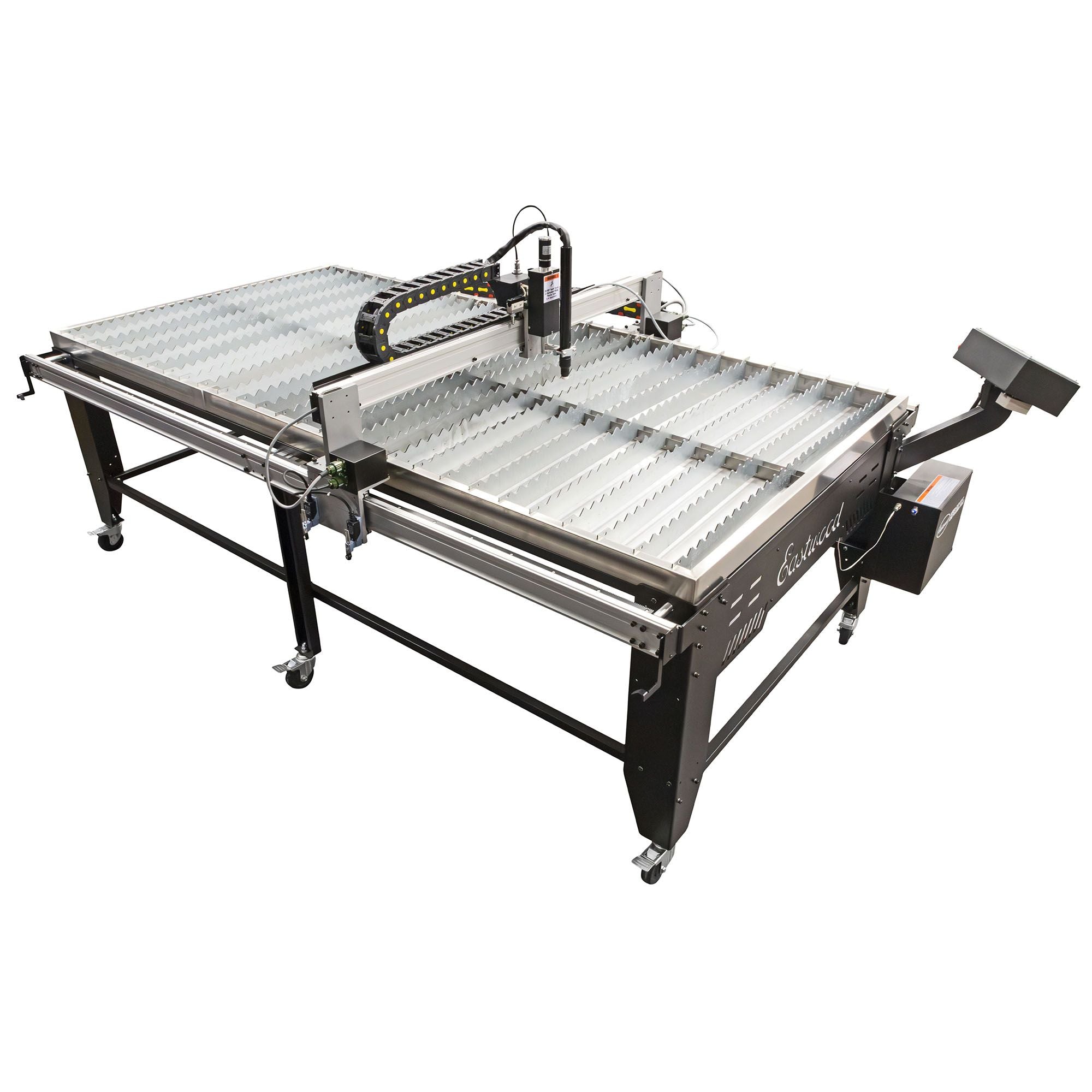

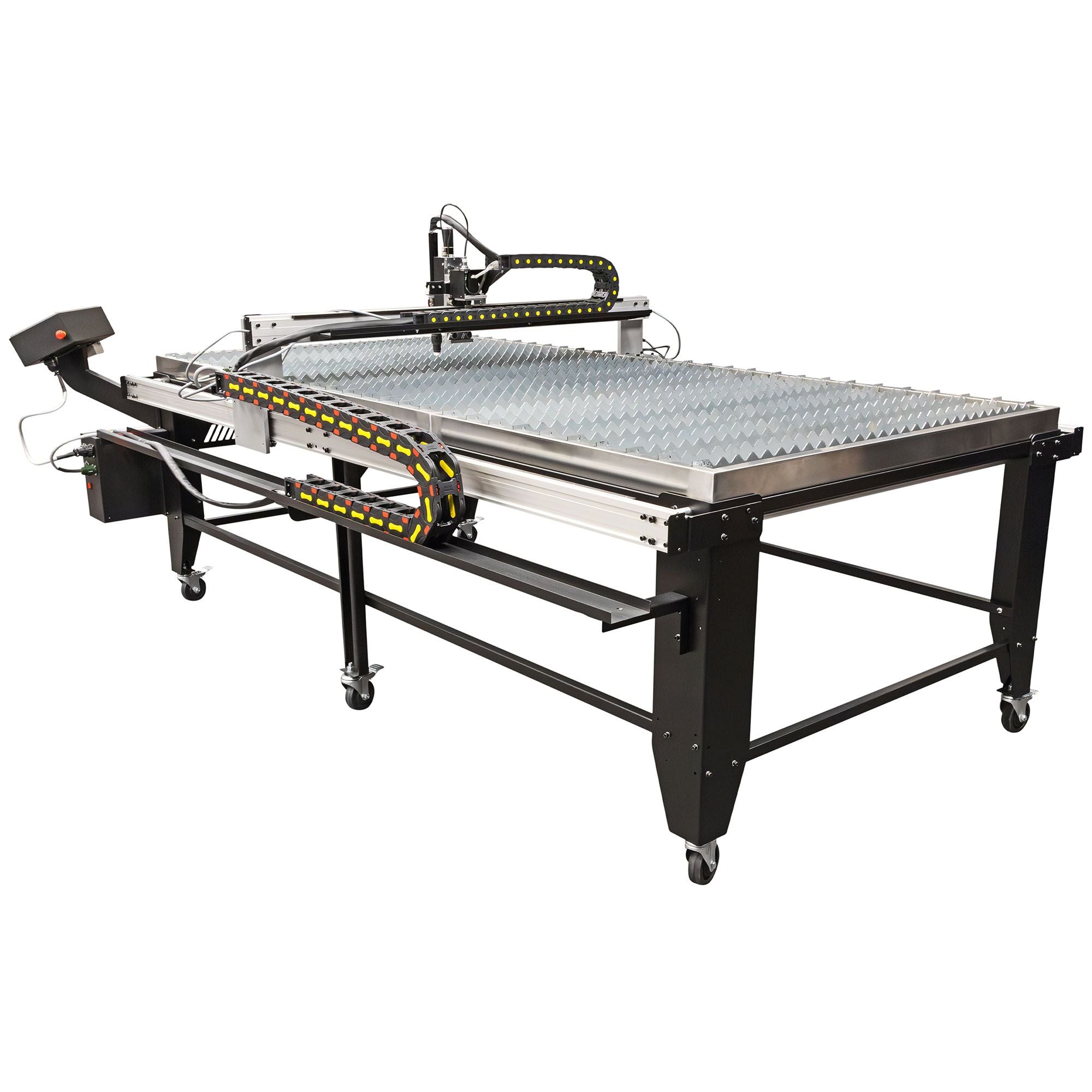

Eastwood Versa-Cut 4x8 CNC Plasma Cutting Table

Professional-Grade 48" × 96" Precision Motion System, Integrated Standalone Color LCD Controller, Automatic Torch Height Control, 87-Gallon Dual Water Table, and Rigid Double-Sided Gantry

Bring full-scale industrial metal fabrication, high-capacity component manufacturing, and rapid sheet-metal production directly to your shop floor with the Eastwood Versa-Cut 4x8 CNC Plasma Cutting Table. Engineered as the ultimate productivity powerhouse for growing metal shops, structural fabricators, and automotive restoration businesses, this expansive 4-foot by 8-foot CNC system is built to handle complete $4\text{-ft} \times 8\text{-ft}$ standard mill sheets. It eliminates the physical limitations of smaller tables, giving you the power to process full steel or aluminum plates without pre-cutting or sectioning.

The table operates on an independent, integrated color LCD controller console that runs entirely free of an external computer or shop laptop—saving your delicate electronics from the metal dust, sparks, and heat of active shop environments. Driven by high-torque stepper motors and a high-precision rack-and-pinion drive on a heavy-duty welded steel frame, the torch delivers an outstanding positioning accuracy of $\pm0.2\text{ mm}$. Outfitted with Automatic Torch Height Control (THC) to prevent nozzle crashes, a massive 87.2-gallon dual-pan water bed to capture sparks and smoke, and integrated safety limit switches, the Versa-Cut 4x8 is a complete, industrial-grade CNC cutting solution.

Key Product Features & Core Engineering

• Full 4' x 8' Cutting Envelope: Features a massive $49.2\text{-in.} \times 98.4\text{-in.}$ torch travel area, designed to drop in and process full standard $48\text{-in.} \times 96\text{-in.}$ industrial metal sheets.

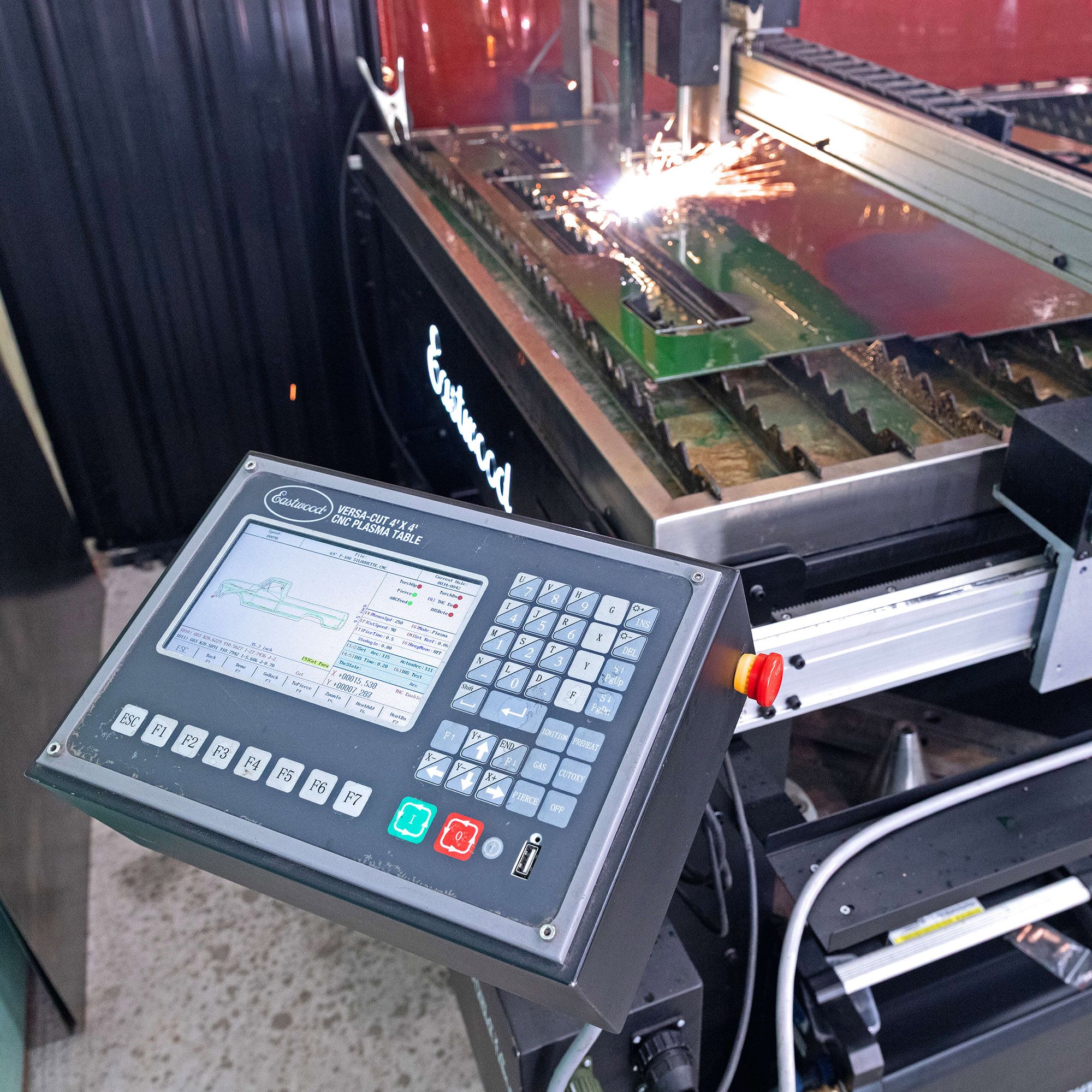

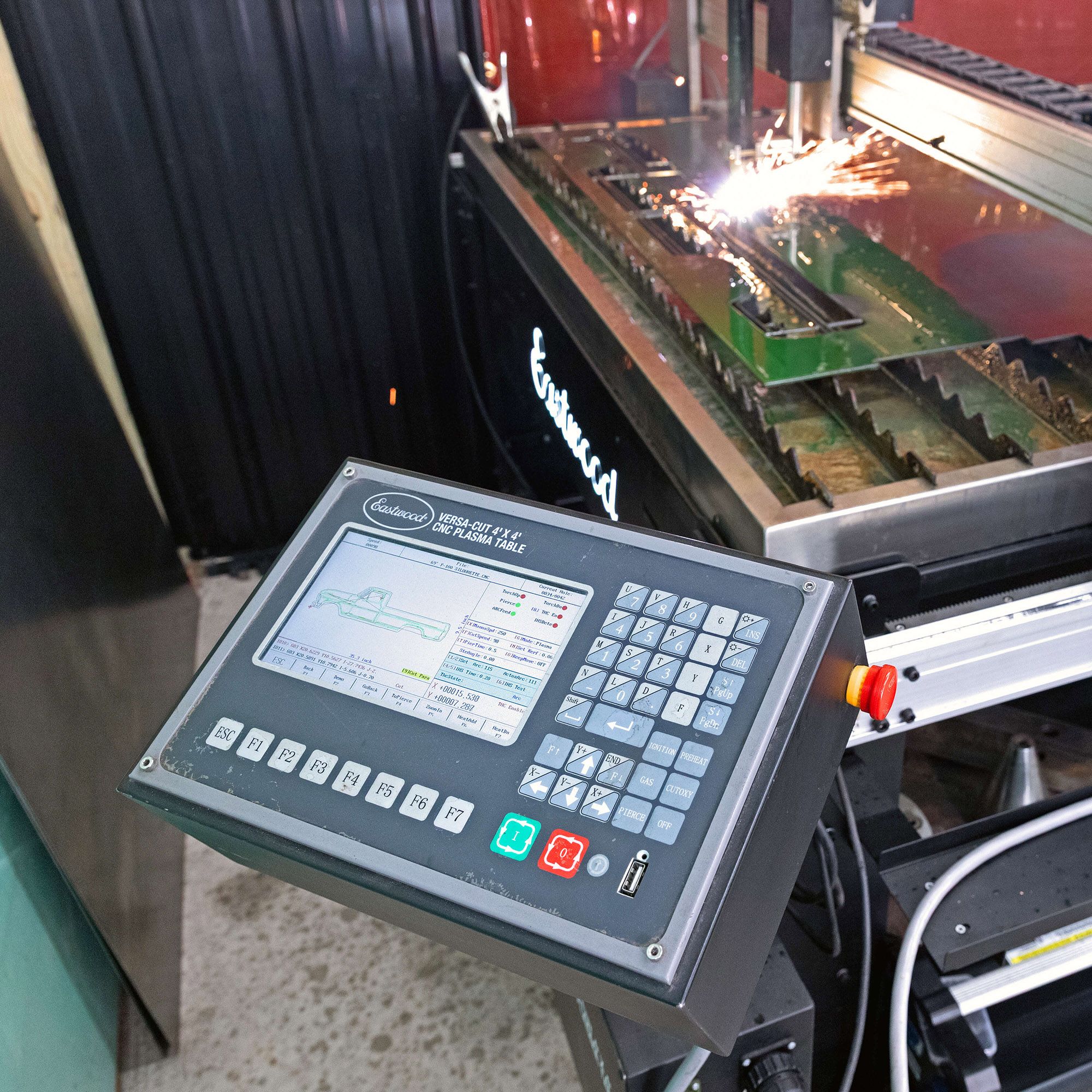

• Standalone Controller Console: Features an onboard, dedicated color LCD CNC computer that reads standard G-code directly from a USB flash drive. No delicate external shop laptop or Wi-Fi connection required.

• Double-Sided Gantry Drive: Powered by dual high-torque Y-axis stepper motors to ensure perfectly balanced, flex-free gantry travel for perfectly square and clean cuts.

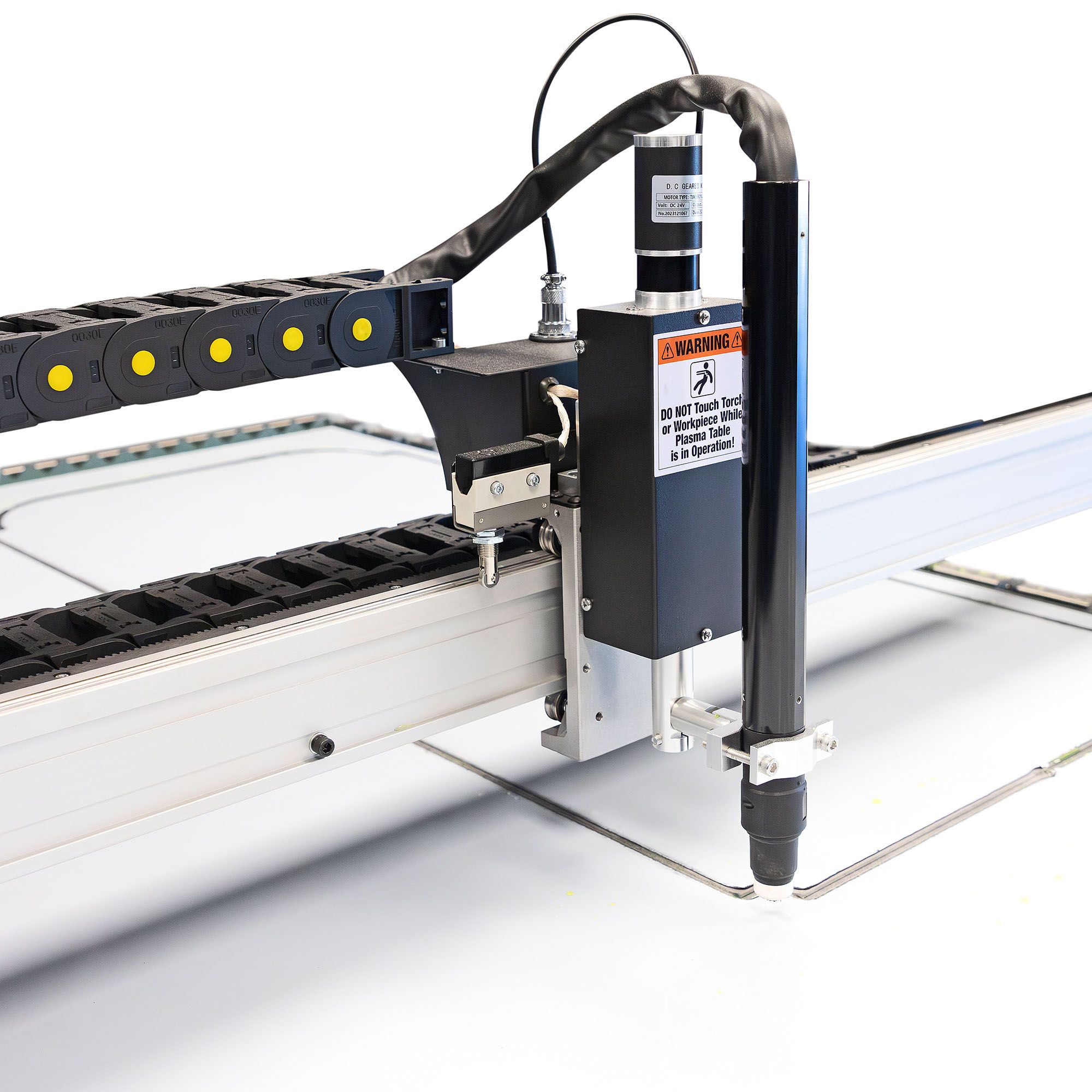

• Automatic Torch Height Control (THC): Continuously monitors and micro-adjusts the torch-to-plate distance in real-time to compensate for warped metal sheets and prevent nozzle tip collisions.

• 87-Gallon Dual-Pan Water Table: Features a massive dual-pan water bed that quickly cools cut parts to prevent thermal warping, while trapping dust, dross, and fumes.

• Open-Frame Pass-Through Design: Built with an open-ended table frame that allows you to feed exceptionally long metal sheets or custom structural stock straight through the cutting area.

• Low-Frequency Plasma Safe: Fully optimized for plug-and-play operation with the Eastwood Versa-Cut 40A or 60A CNC plasma cutters, or any standard low-frequency blowback-start plasma machine.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Eastwood Versa-Cut 4x8 CNC Table Main Frame and Legs Assembly

• 1 × Double-Sided X-Axis Gantry Beam and Extended Y-Axis Gantry Tracks

• 1 × Integrated Standalone Color LCD CNC Controller Console & Mounting Arm

• 1 × Automatic Torch Height Control (THC) Motor Assembly

• 1 × Dual-Pan 87.2-Gallon Water Table Assembly (Splits into front and rear pans)

• 30 × Heavy-Duty Replaceable Serrated Water Table Slats

• 6 × Heavy-Duty Leveling and Locking Swivel Casters

• 1 × Complete CNC Table Wiring Harness, Limit Switches, Cable Drag Chains, and Assembly Hardware Kit

Critical Field Installation & Operational Guidelines

• Precise Diagonal Squaring Check: During assembly, keep all leg and frame bolts hand-tight. Before tightening the fasteners down, use a tape measure to compare the diagonal measurements from corner to corner. Ensure these diagonals match exactly to guarantee the 8-foot gantry rails are perfectly parallel—this prevents gantry binding during high-speed travel.

• Strict Low-Frequency Plasma Rule: Only connect plasma cutters that feature a blowback (low-frequency) start mechanism (such as the Eastwood Versa-Cut 40/60 CNC cutters). Never connect a high-frequency start plasma cutter to this table, as the high-frequency electrical arc discharge can severely damage or destroy the sensitive CNC control box electronics.

• Water Table Rust Inhibitor Fluid: To prevent rust on your steel parts, minimize dross buildup, and prevent the water pan from corroding, always fill the table with a mixture of clean water and a specialized CNC plasma cutting fluid (such as Eastwood's 5-Gallon Cutting Fluid). Do not use plain tap water alone.

• Rack and Pinion Gear Care: Wipe down the polished steel linear guide rails and gear racks weekly with a dry microfiber cloth to remove metal dust and slag overspray. Apply a very thin layer of dry PTFE spray lubricant to keep travel smooth. Avoid sticky oils or grease, which trap metallic dust and wear down the stepper drive gears.
