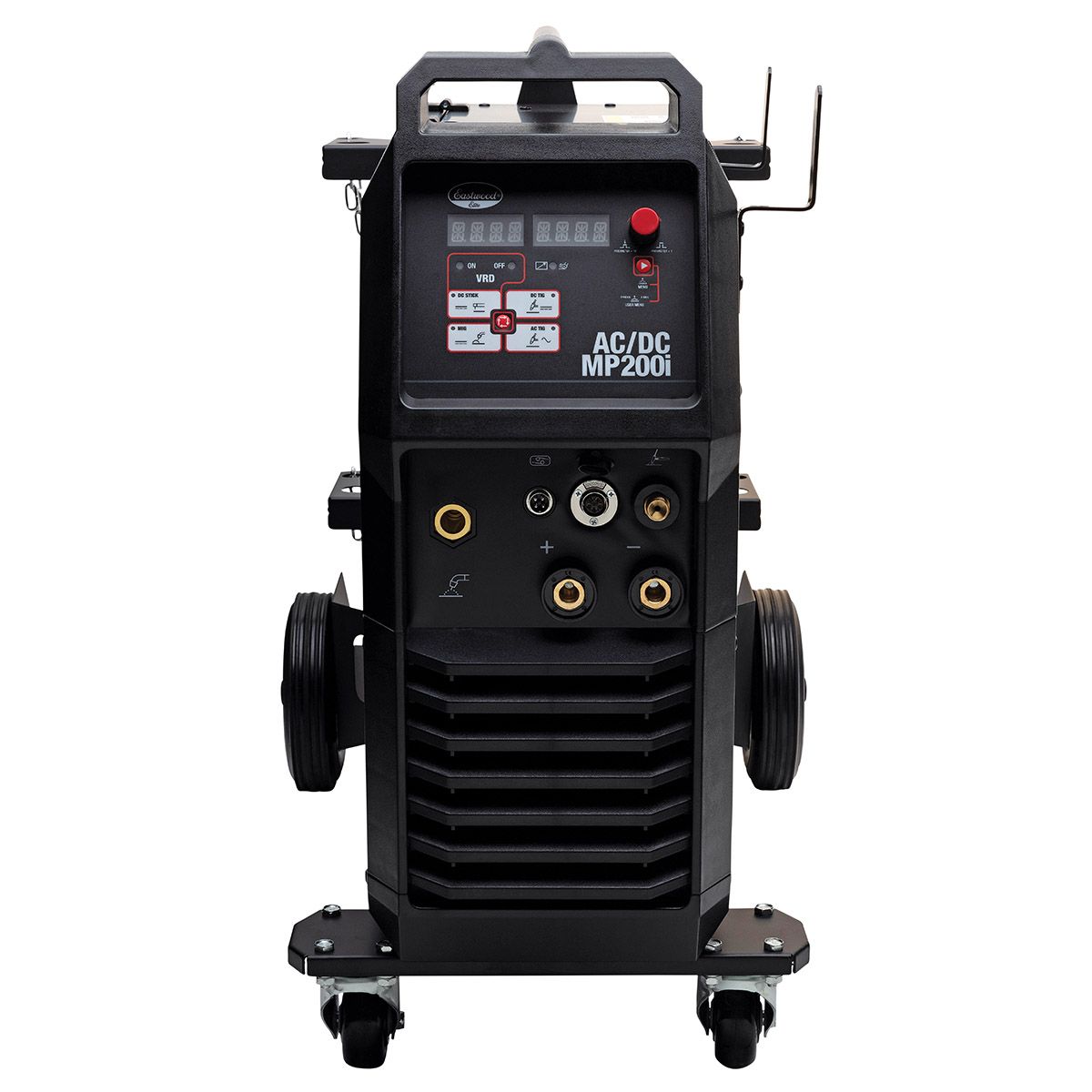

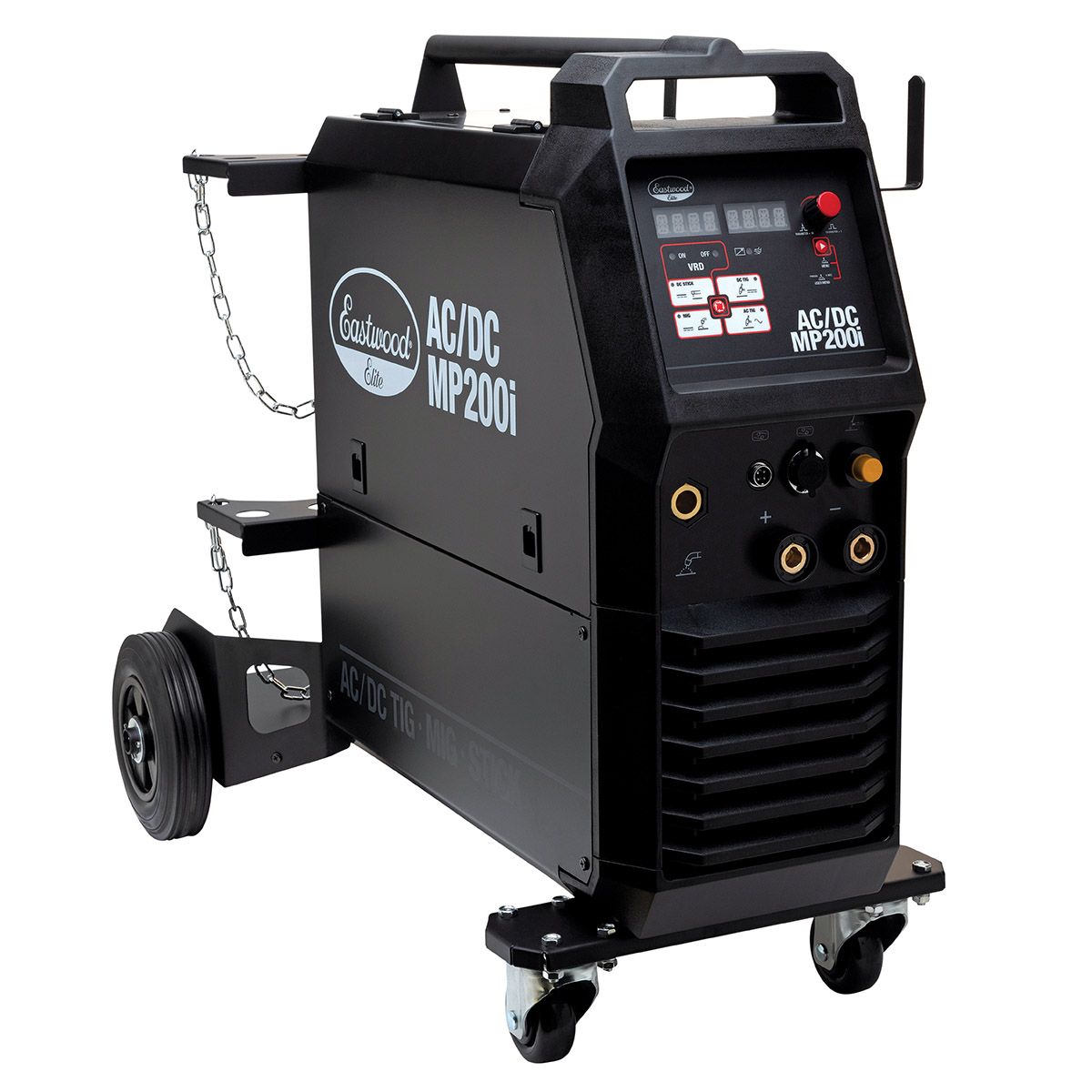

Eastwood Elite MP200i multi-process welder

AC/DC TIG, MIG, and Stick Inverter Welding System, Dual-Voltage 120V/240V Input, Built-In Dual Gas Solenoids, Square Wave AC, and Heavy-Duty Integrated Cylinder Cart

Tackle any metal fabrication, automotive bodywork, or structural welding project with the ultimate versatility of the Eastwood Elite MP200i Multi-Process AC/DC Welder. Custom-engineered as a true, no-compromise "all-in-one" welding workstation, this machine eliminates the classic trade-off of multi-process welders. Instead of forcing you to settle for basic DC-only scratch-start TIG, the MP200i packs a professional-grade AC/DC TIG system featuring high-frequency start, square-wave AC output, and foot-pedal control. This gives you the power to lay down beautiful, stack-of-dimes weld beads on aluminum, stainless steel, and carbon steel alike—while also having full MIG and Stick capabilities ready at a moment's notice.

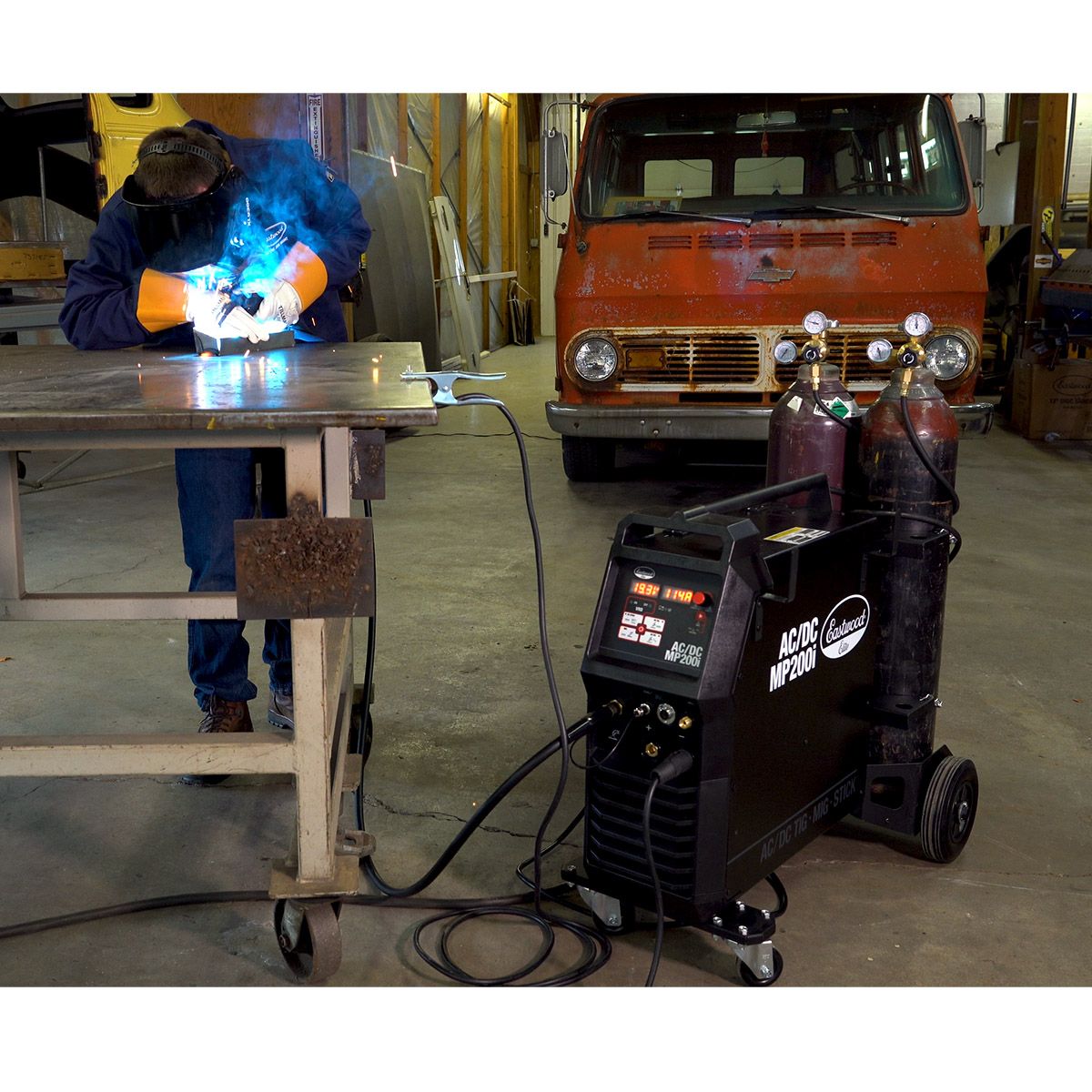

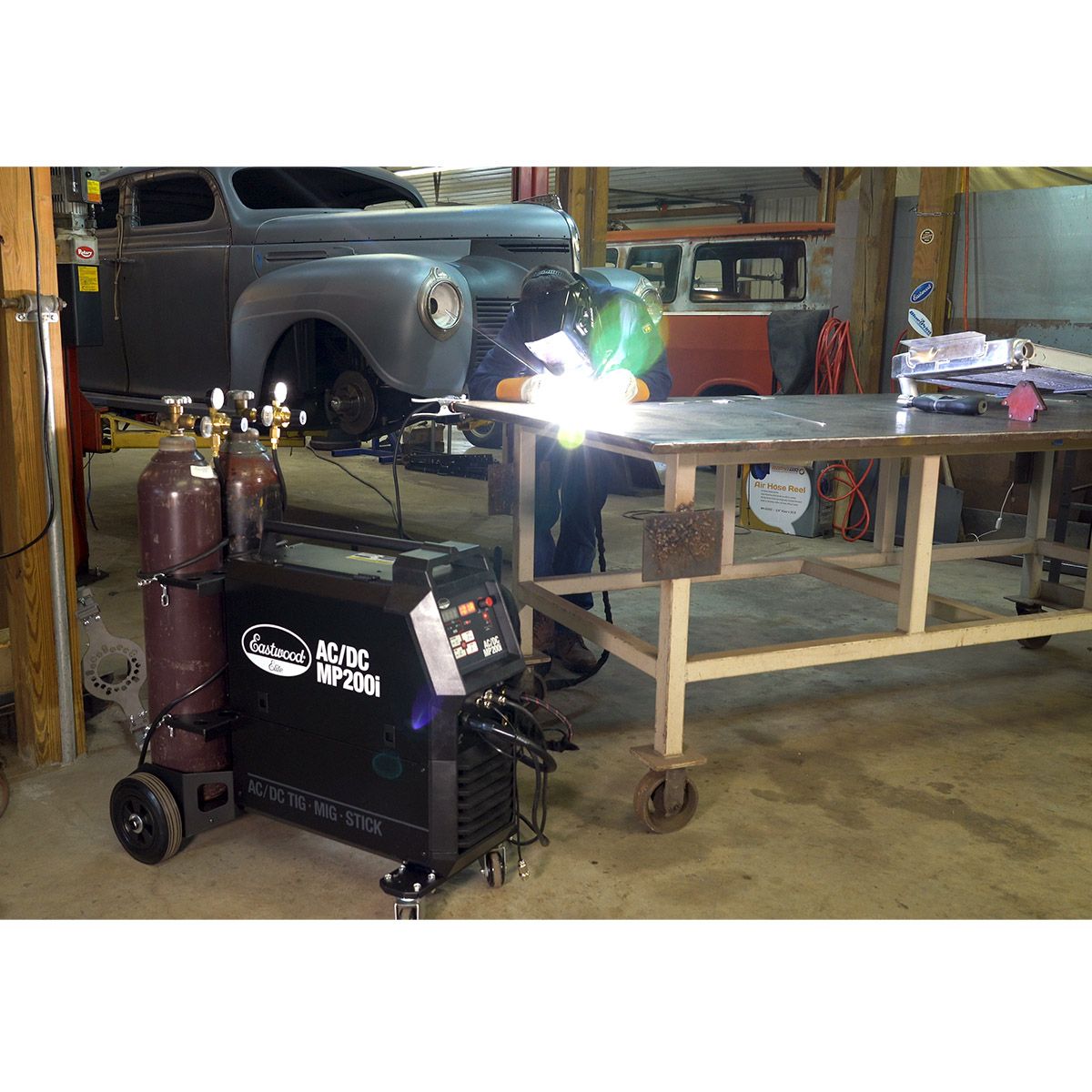

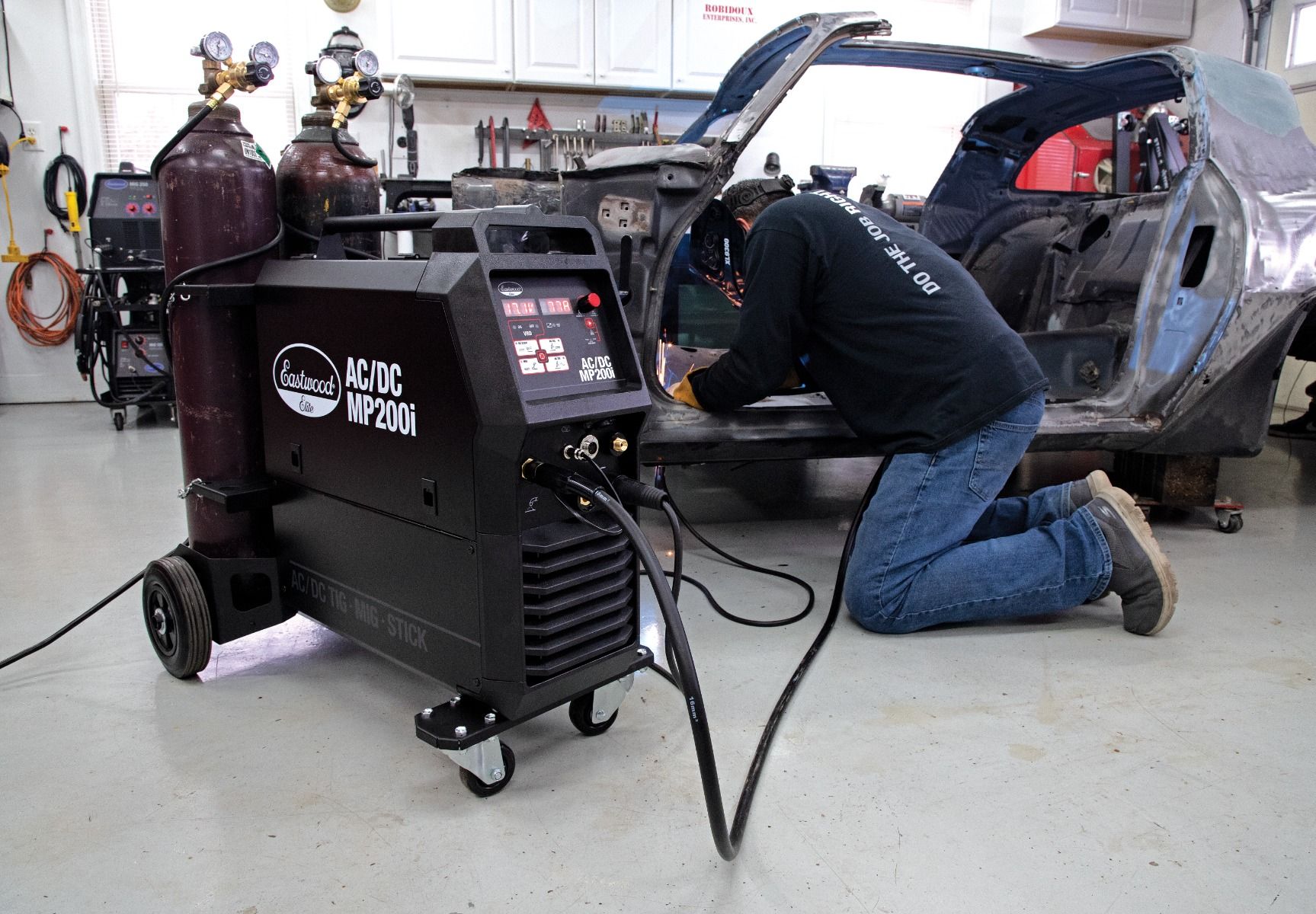

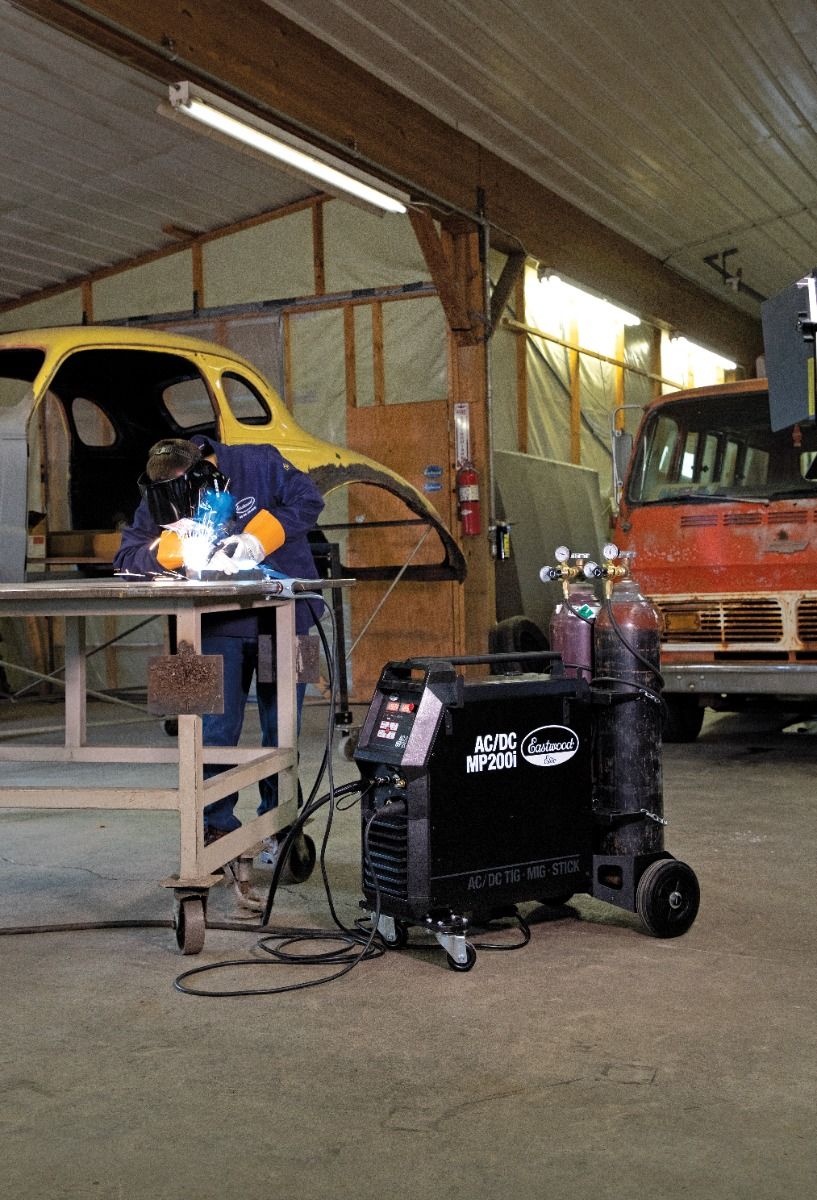

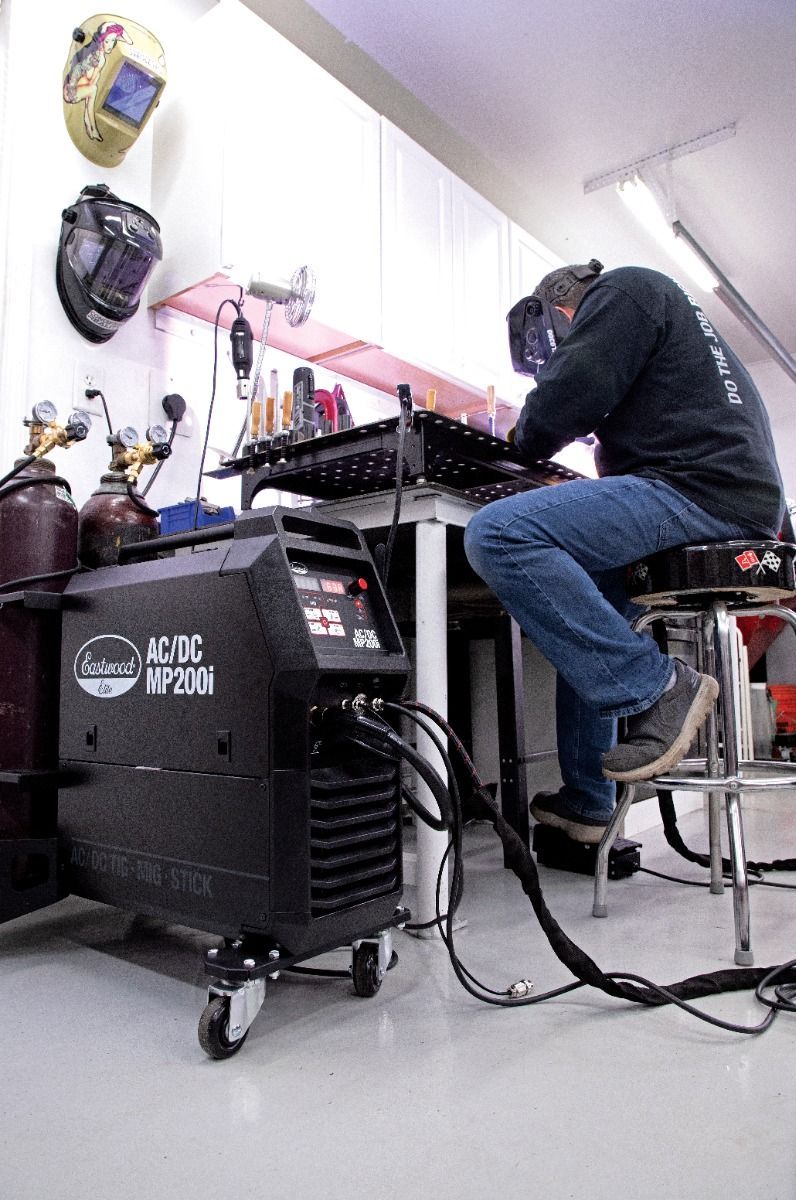

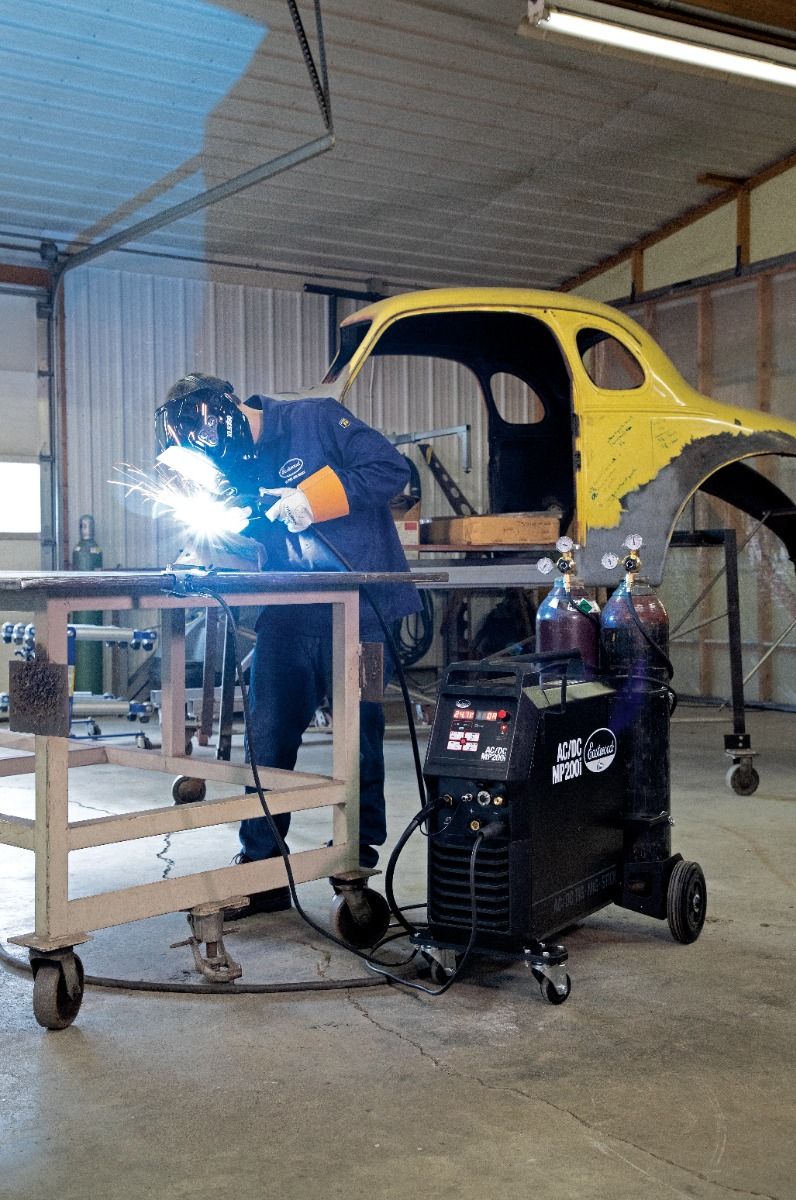

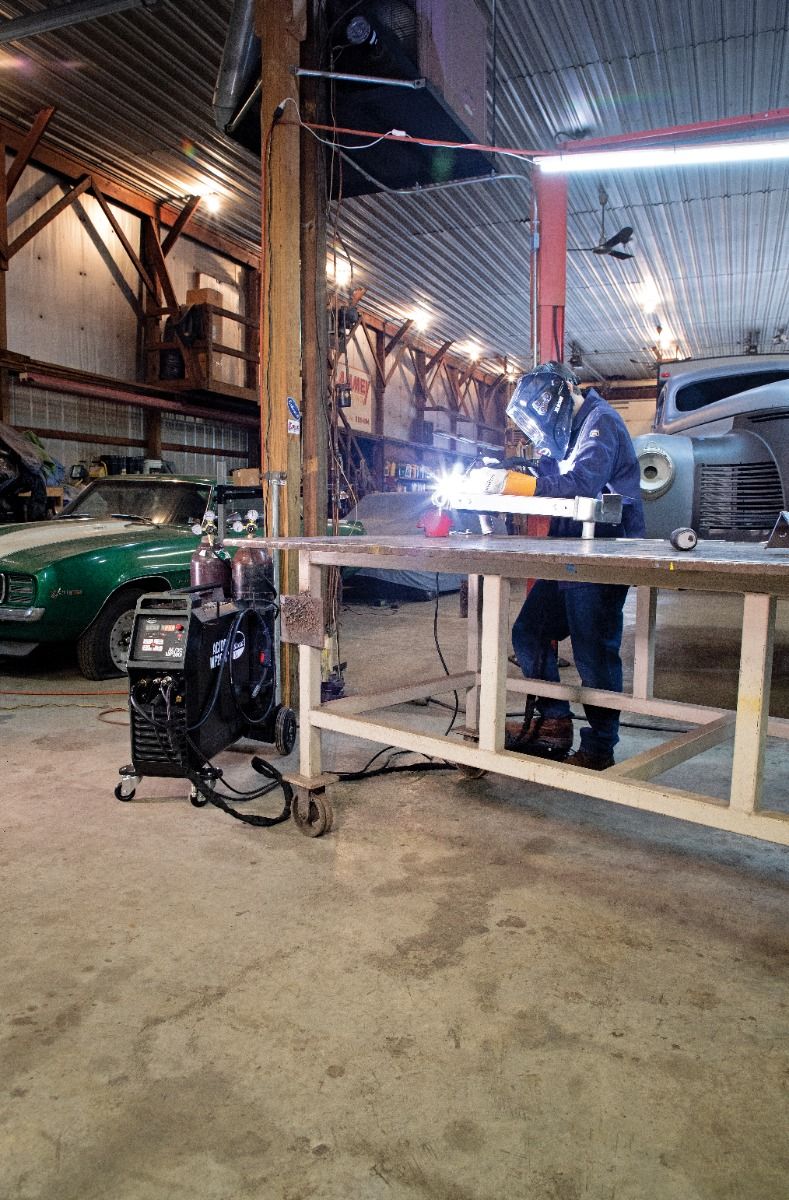

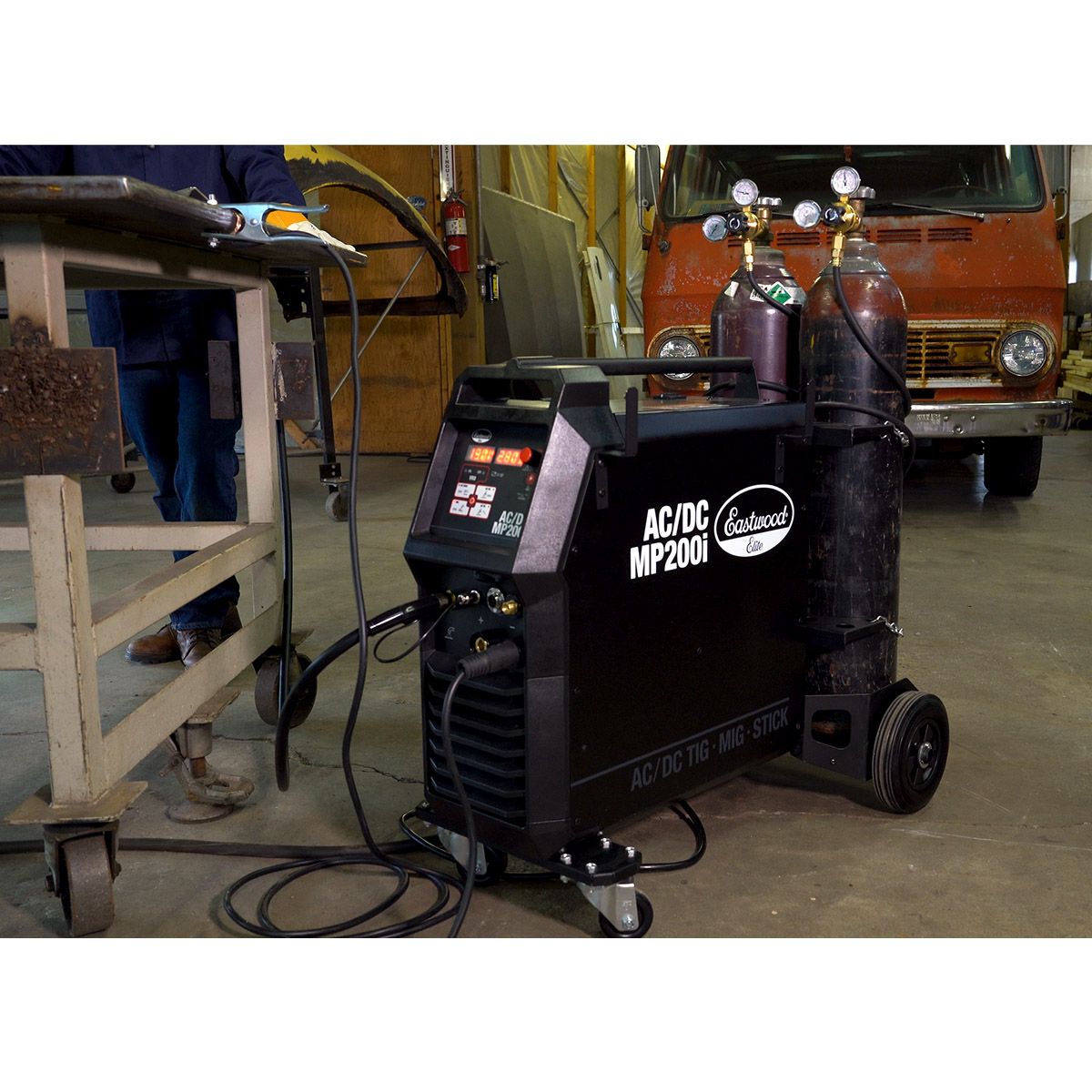

The machine is built on a heavy-duty, integrated rolling cart that features a dual-cylinder rack at the rear, allowing you to mount both your MIG (CO2/Argon) and TIG (Pure Argon) shielding gas bottles at the same time. Powered by an advanced inverter chassis that runs on either $120\text{V}$ or $240\text{V}$ input power, the MP200i delivers up to 200 Amps of clean welding power. With built-in dual gas solenoid valves, you can switch between MIG and TIG processes instantly at the press of a button, without ever having to swap gas hoses or regulators.

Key Product Features & Core Engineering

• True AC/DC TIG Multi-Process Capability: Packs high-frequency start AC/DC TIG, MIG (solid & flux-core), and Stick welding processes into a single, high-performance inverter chassis.

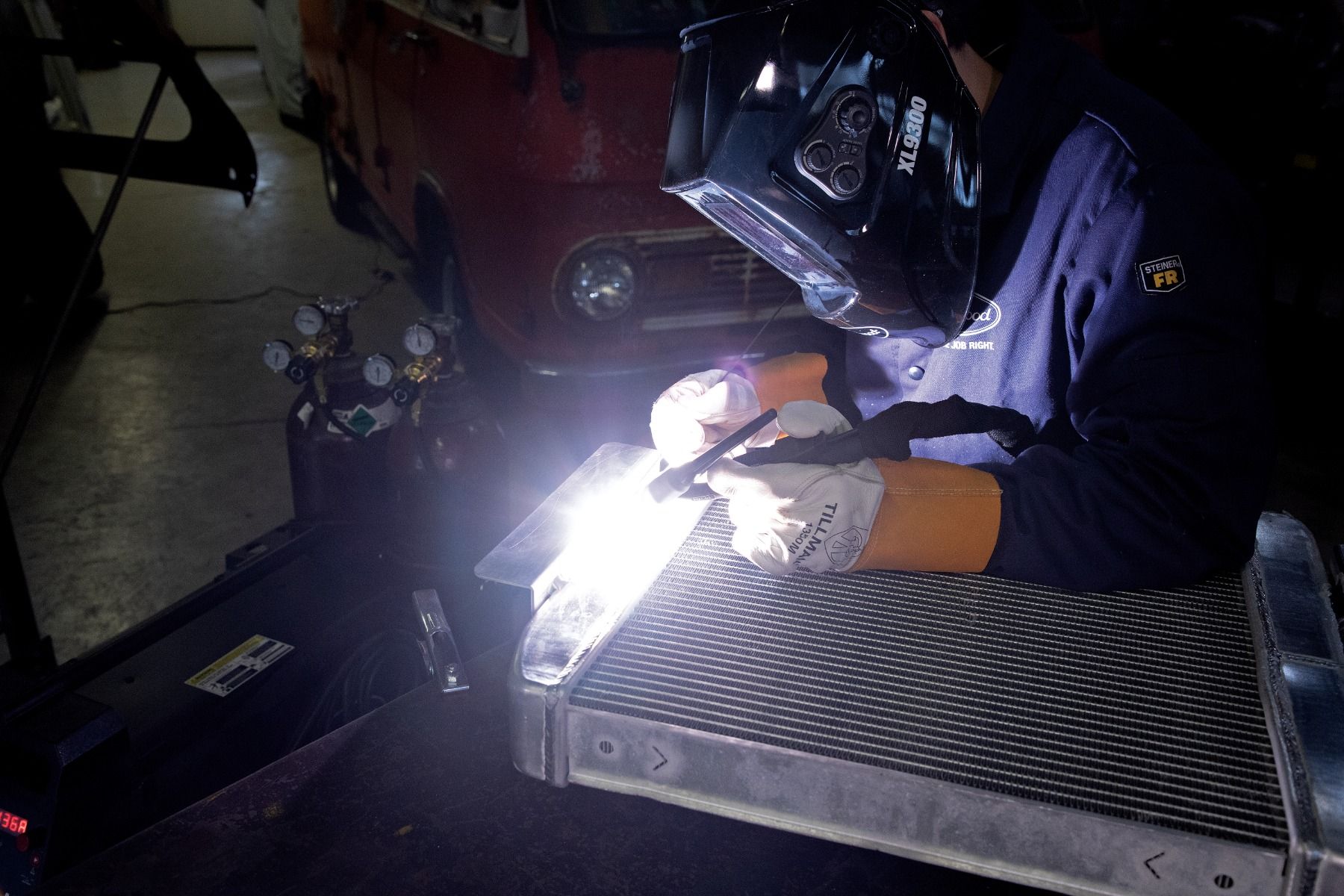

• Premium Aluminum TIG Welding: Features square-wave AC output with adjustable cleaning/penetration balance and a premium foot pedal to weld aluminum sheets and castings up to $1/4\text{"}$ thick.

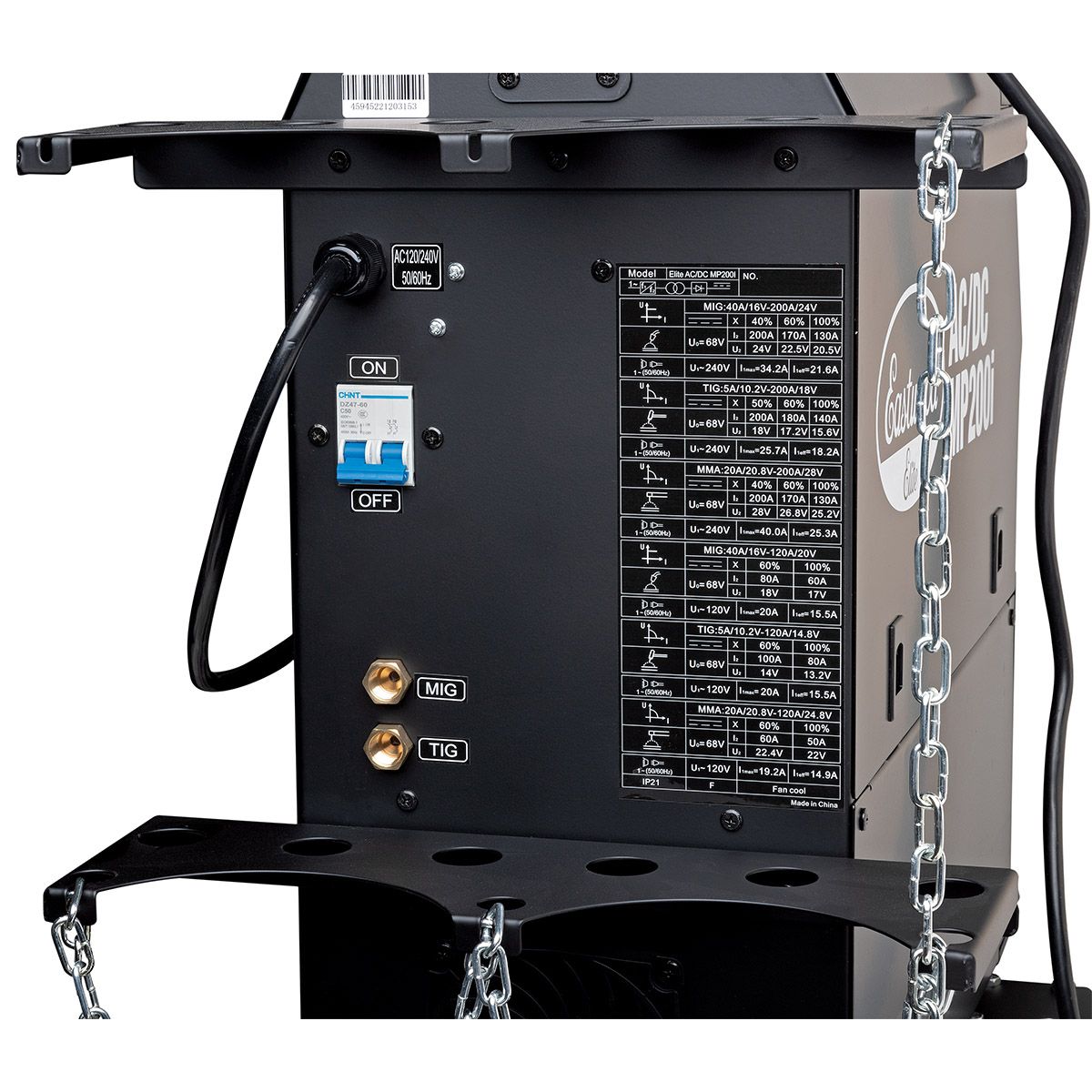

• Dual Shielding Gas Solenoids: Designed with separate, dedicated gas inlets on the rear panel. This lets you keep both your MIG and TIG gas bottles connected and plumed at the same time—no more swapping hoses when changing processes.

• Dual-Voltage 120V / 240V Flexibility: Runs smoothly on standard $120\text{V}$ household current for light repairs, or plugs into a $240\text{V}$ outlet to unlock the full 200-Amp output for heavy fabrications.

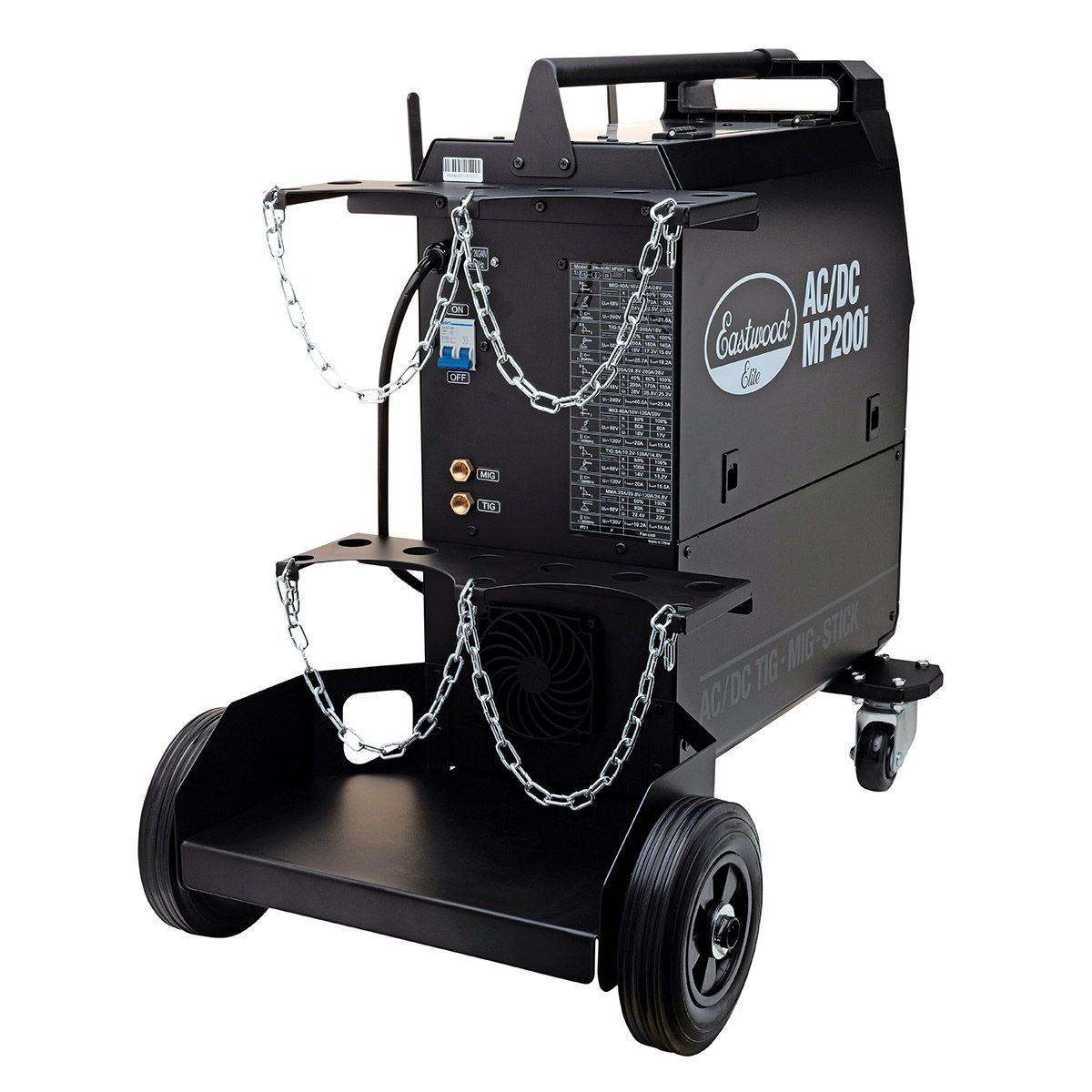

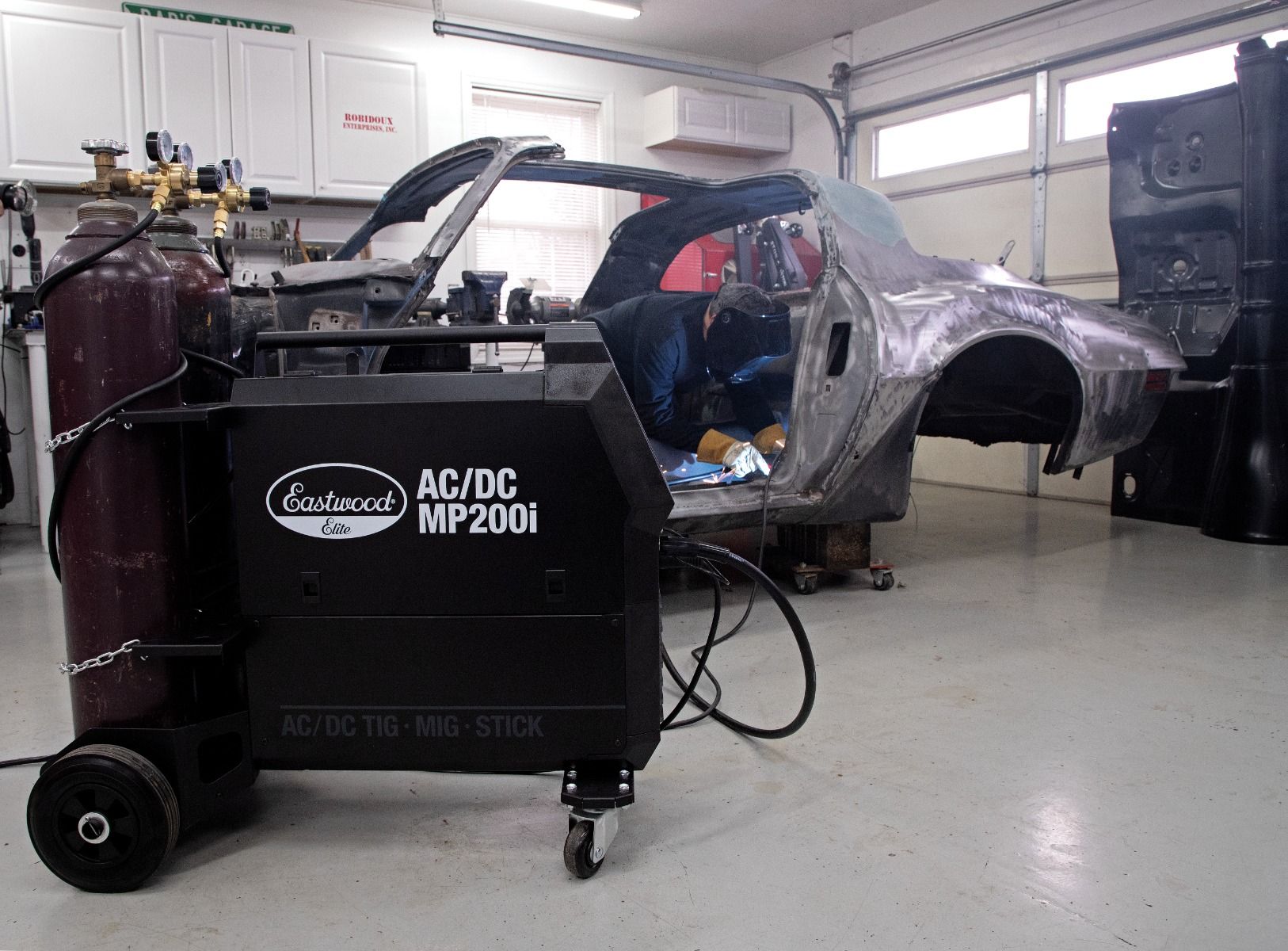

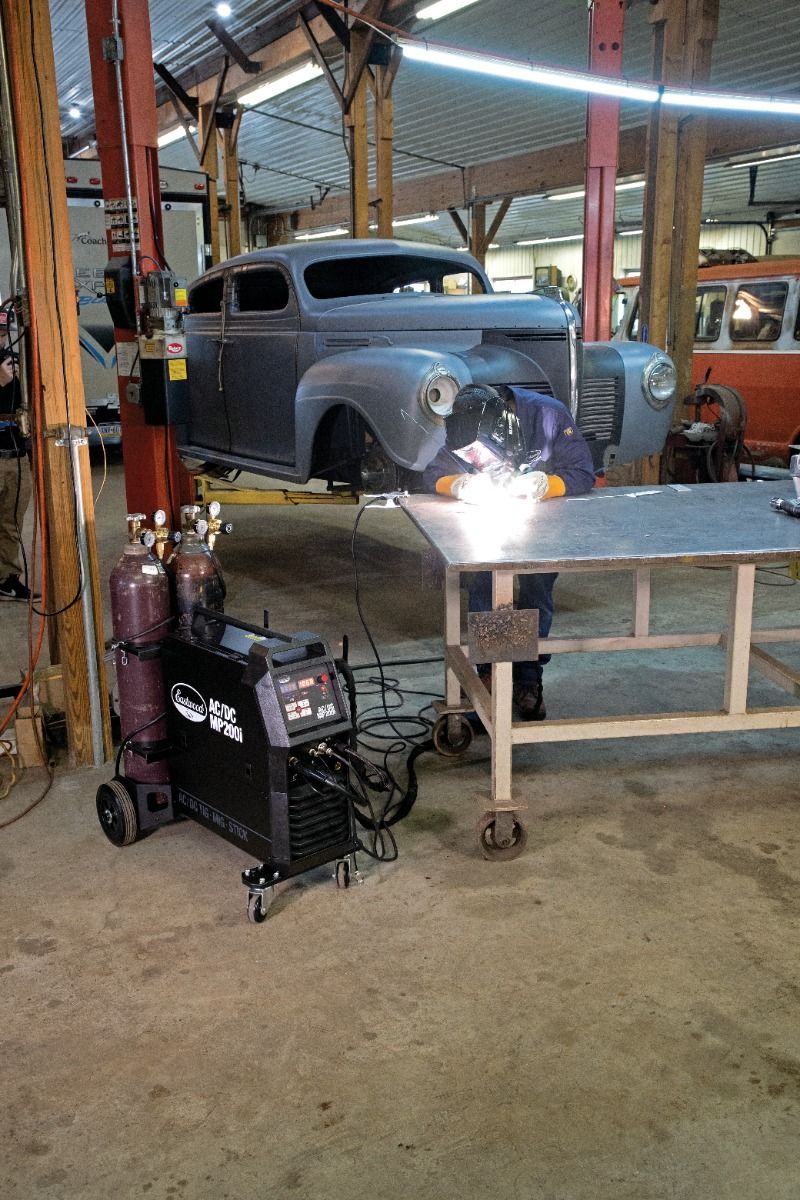

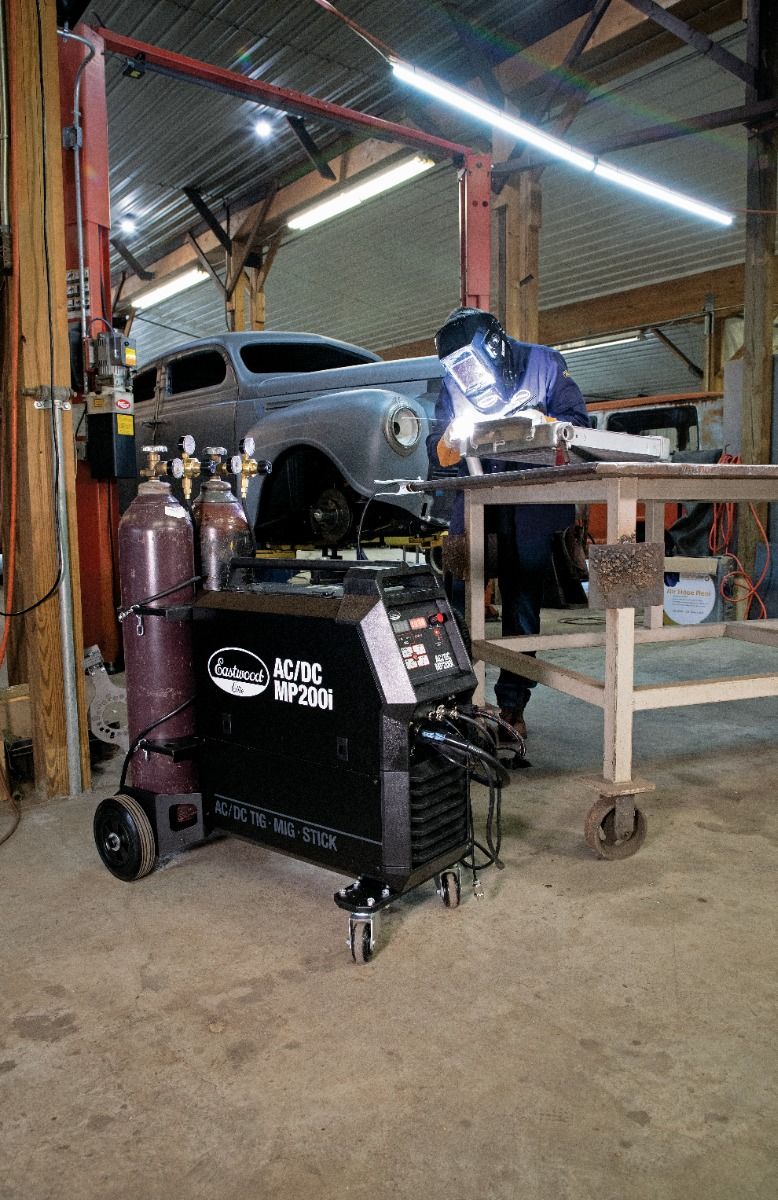

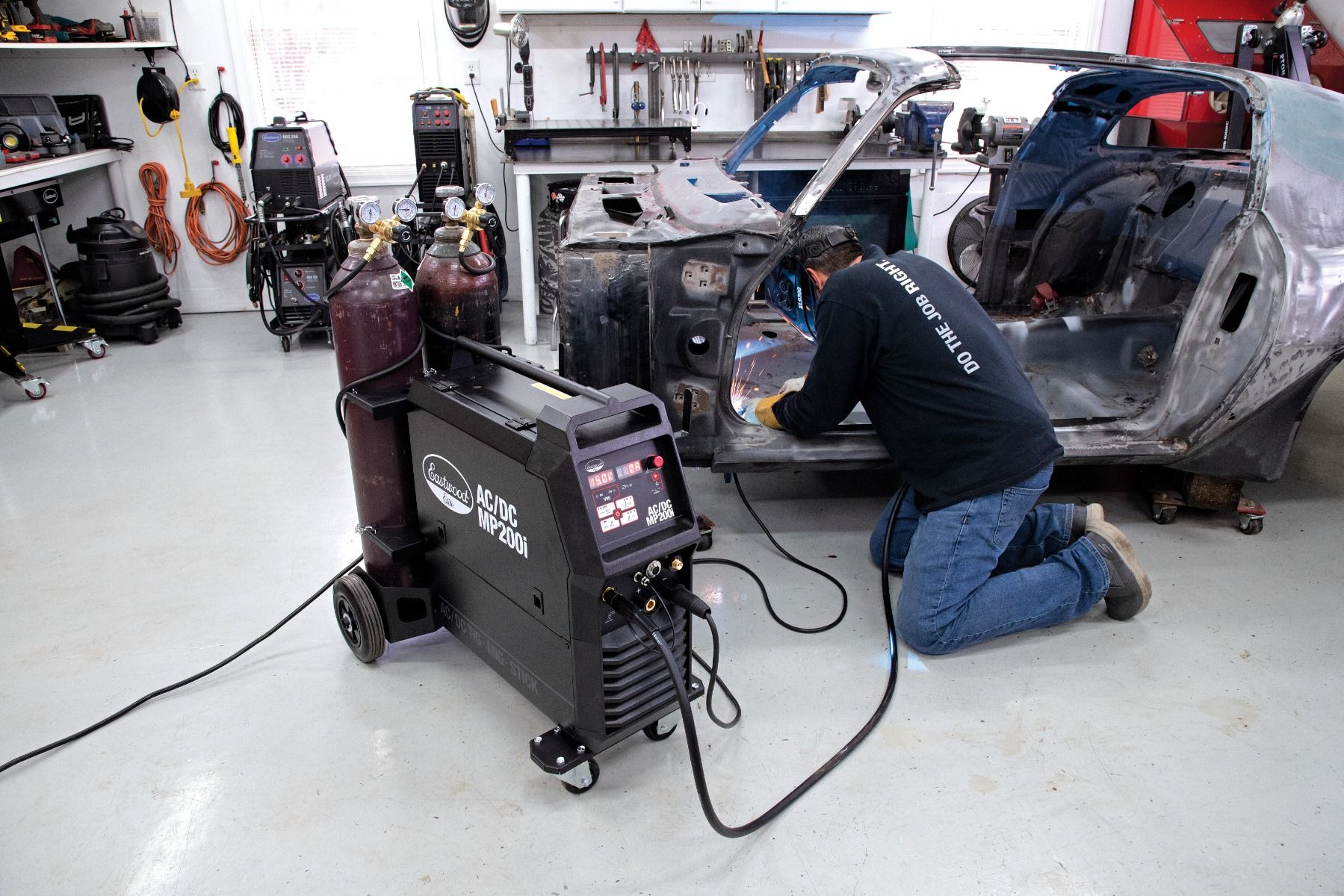

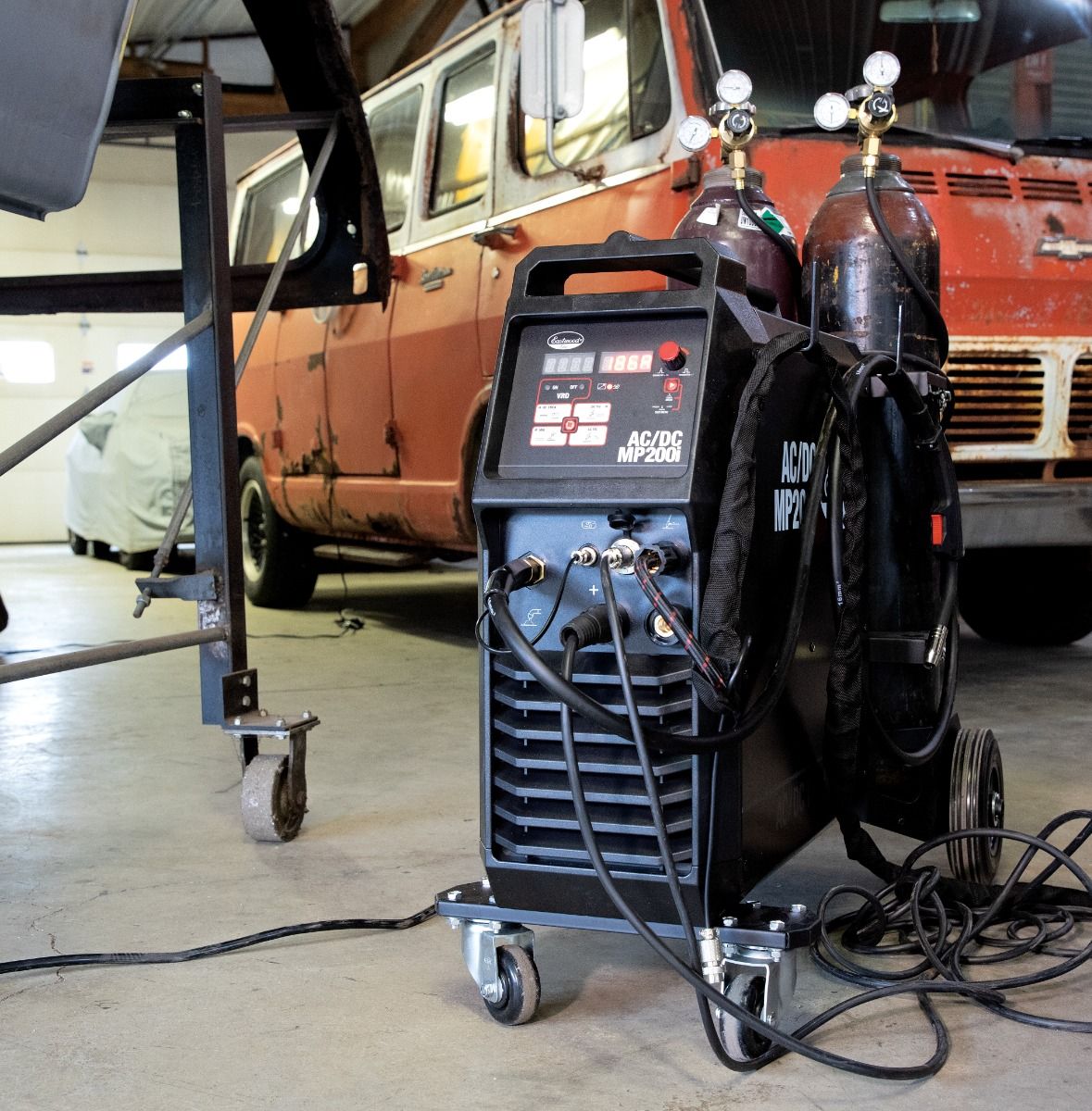

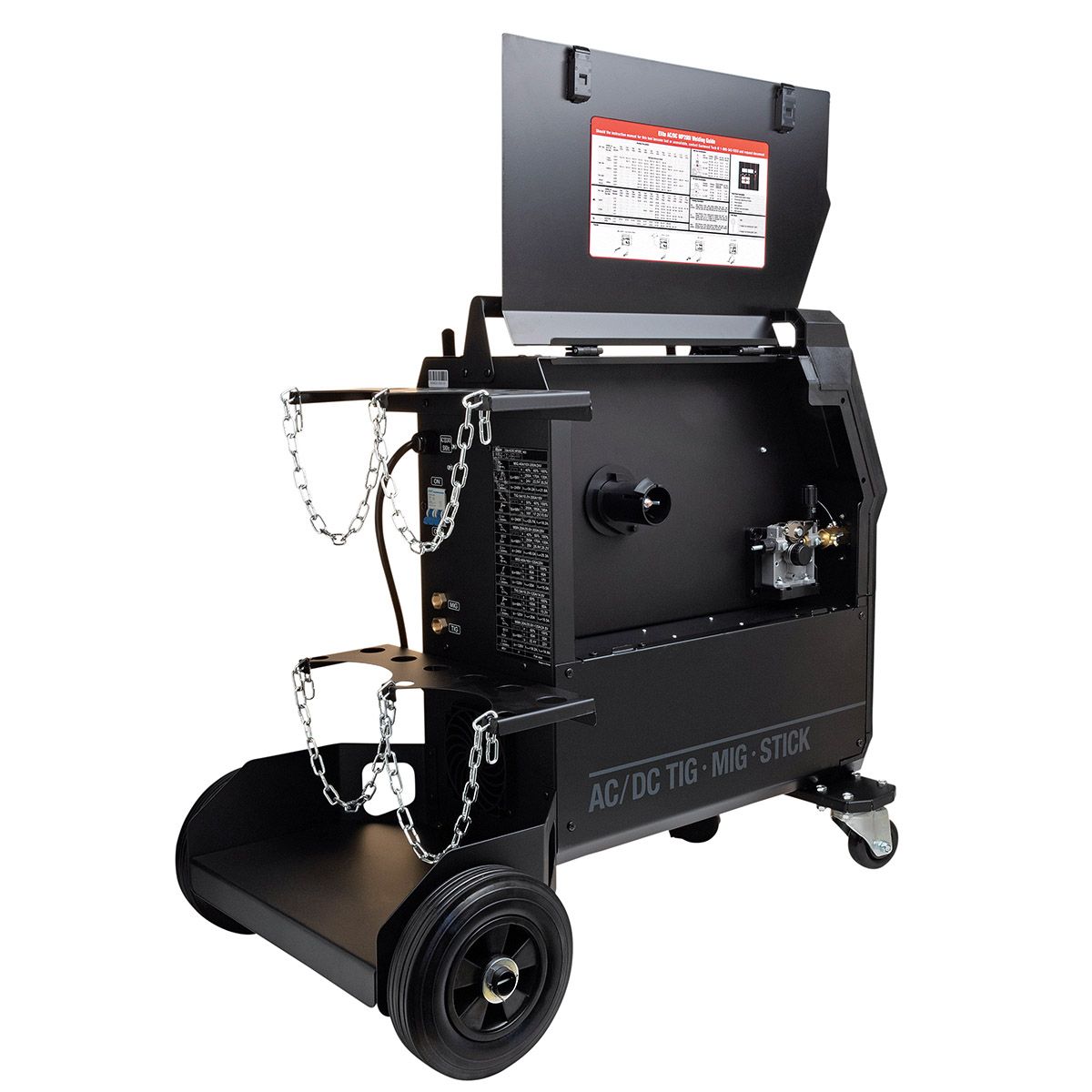

• Integrated Dual-Bottle Cart: Mounted directly onto a rugged, steel-frame rolling cart with smooth-rolling rear wheels and front locking casters, featuring a secure rack to hold two full-sized gas cylinders.

• Synergic MIG Controls: Offers an intuitive digital interface that makes setup easy by automatically adjusting wire feed speed based on your selected material thickness and voltage.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Eastwood Elite MP200i Welder on Integrated Dual-Bottle Cart

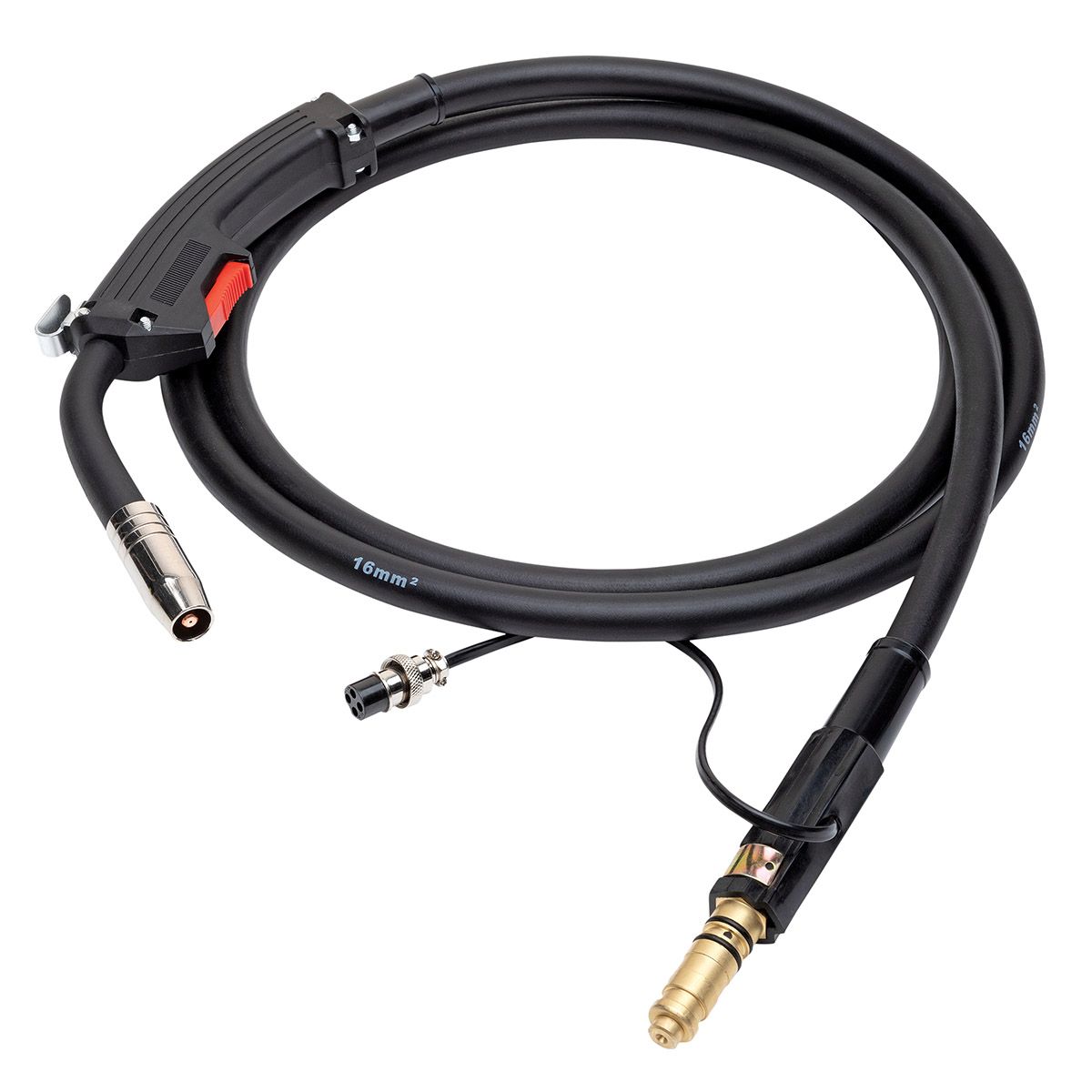

• 1 × Professional $10\text{-Foot}$ Trafimet ERGOPLUS 15 MIG Torch

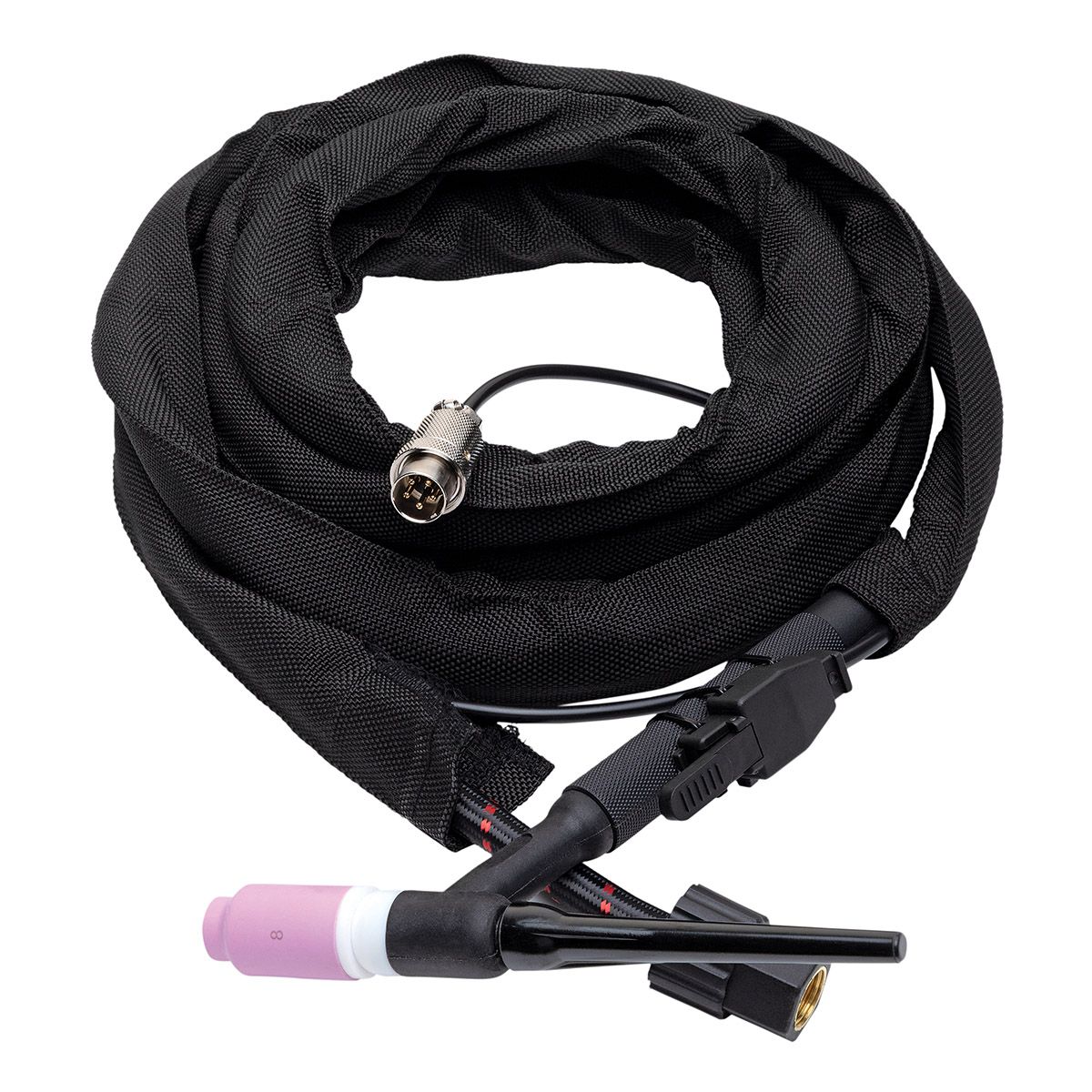

• 1 × Premium WP17 Flex-Head TIG Torch with Gas Lens Kit ($10\text{-Foot}$)

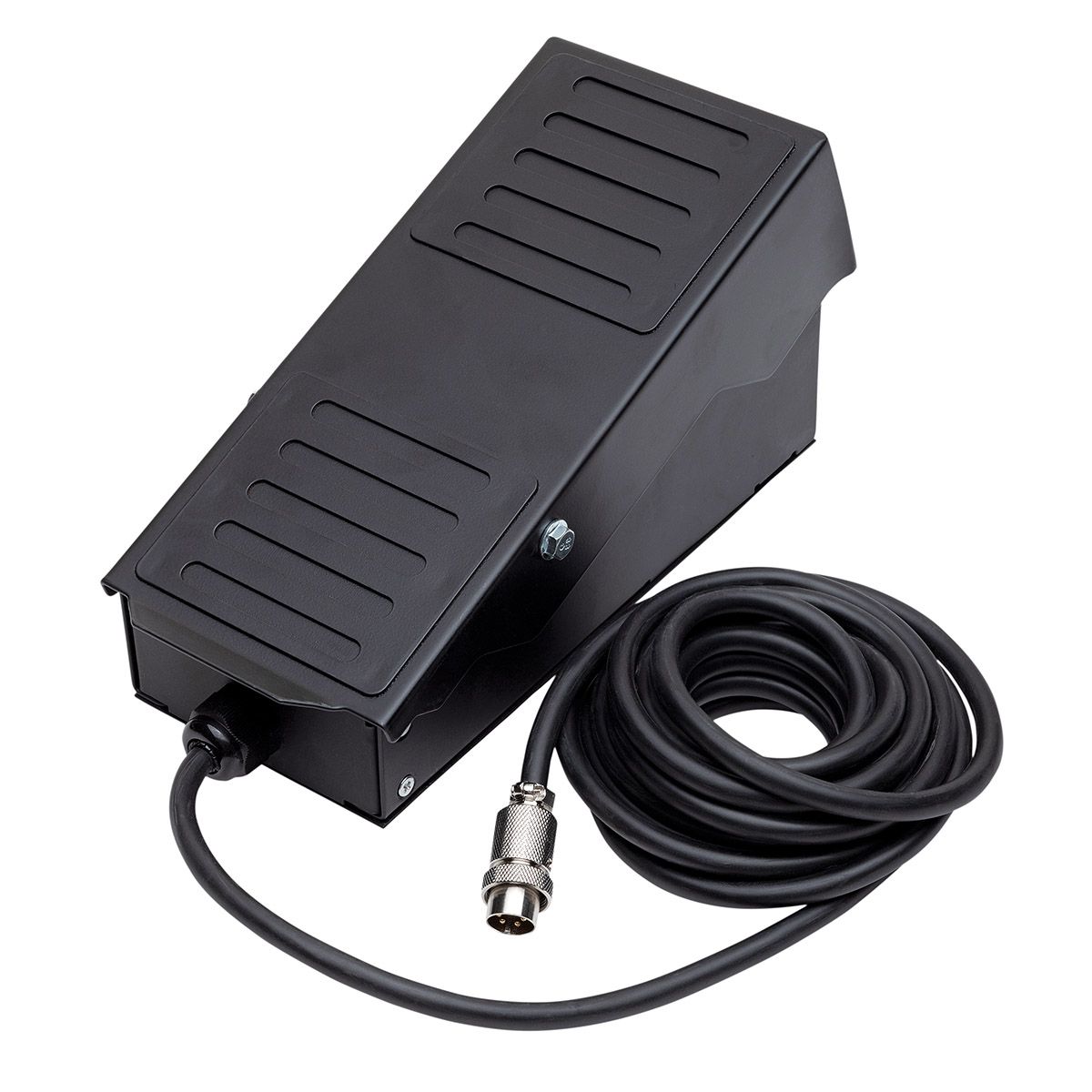

• 1 × Rocker-Style TIG Amperage Control Foot Pedal ($16\text{-Foot}$)

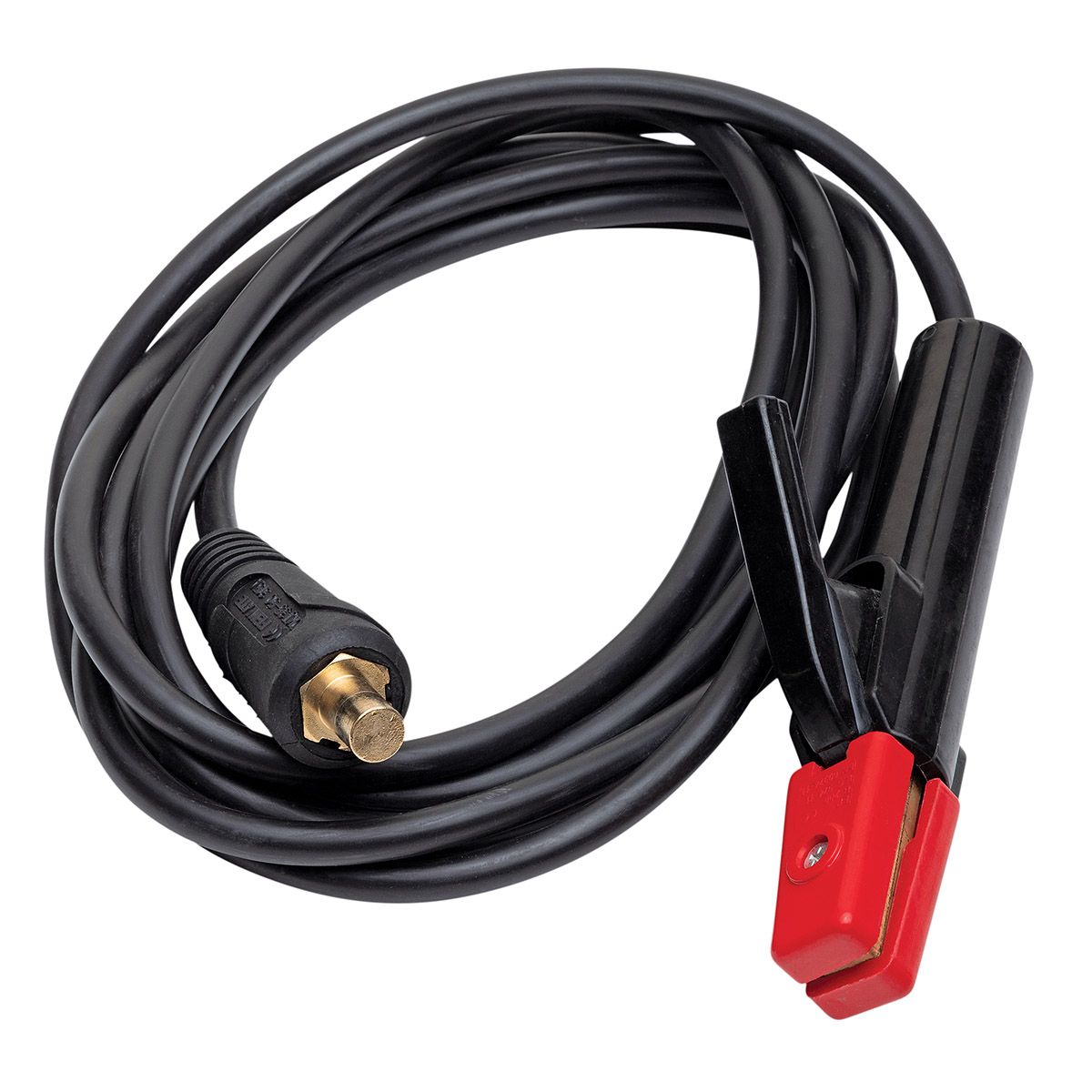

• 1 × Heavy-Duty Stick Electrode Holder ($10\text{-Foot}$)

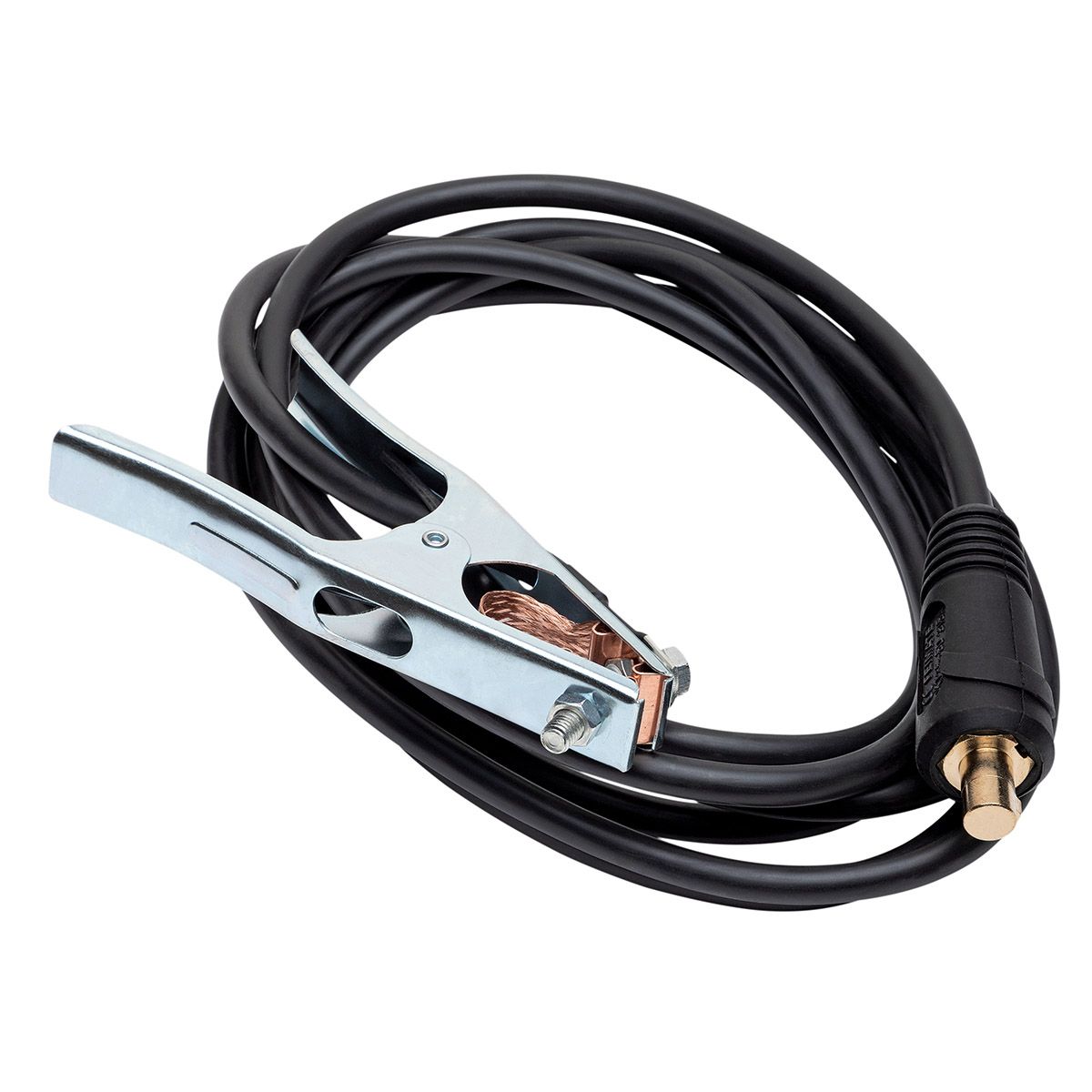

• 1 × Robust Ground Clamp and Cable Assembly ($10\text{-Foot}$)

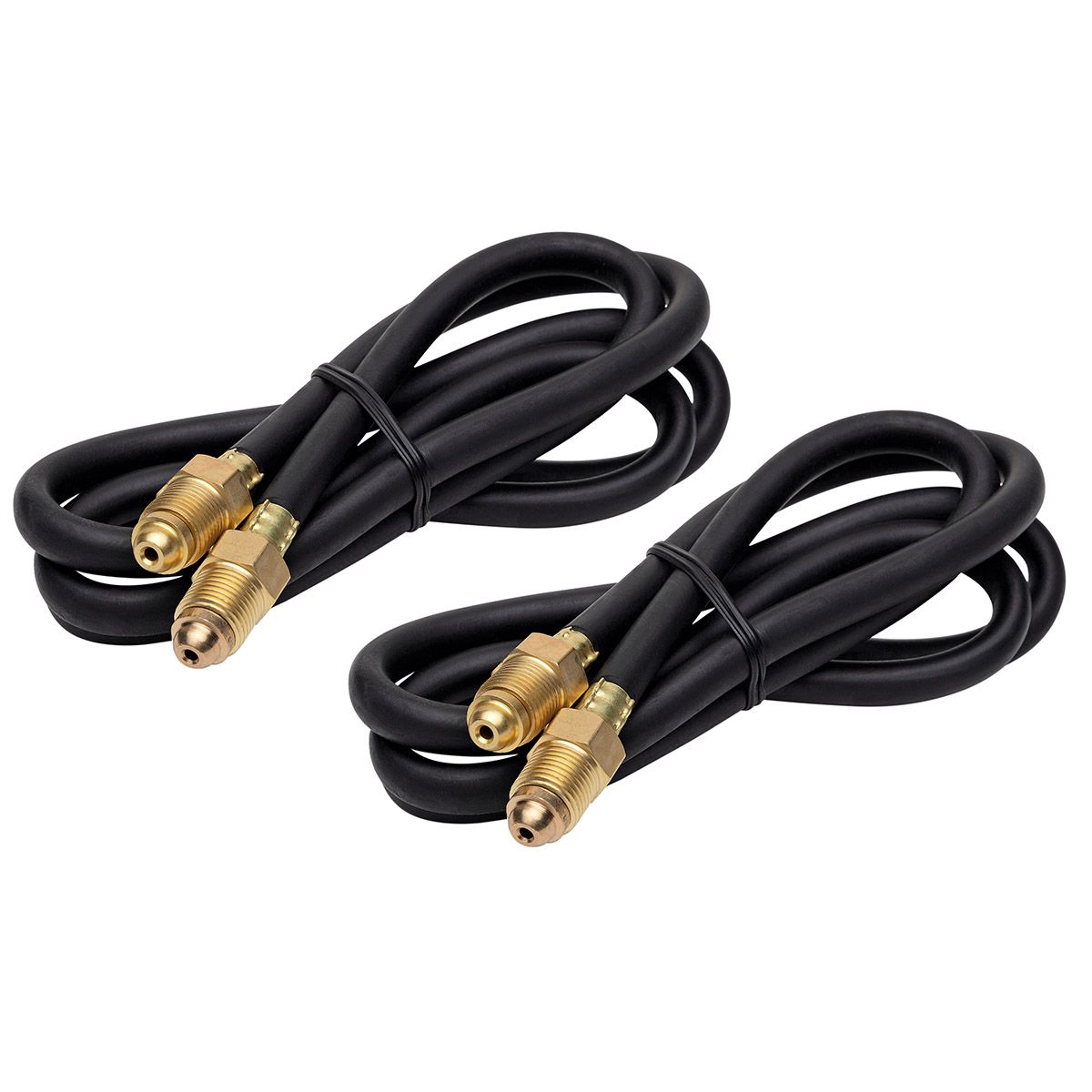

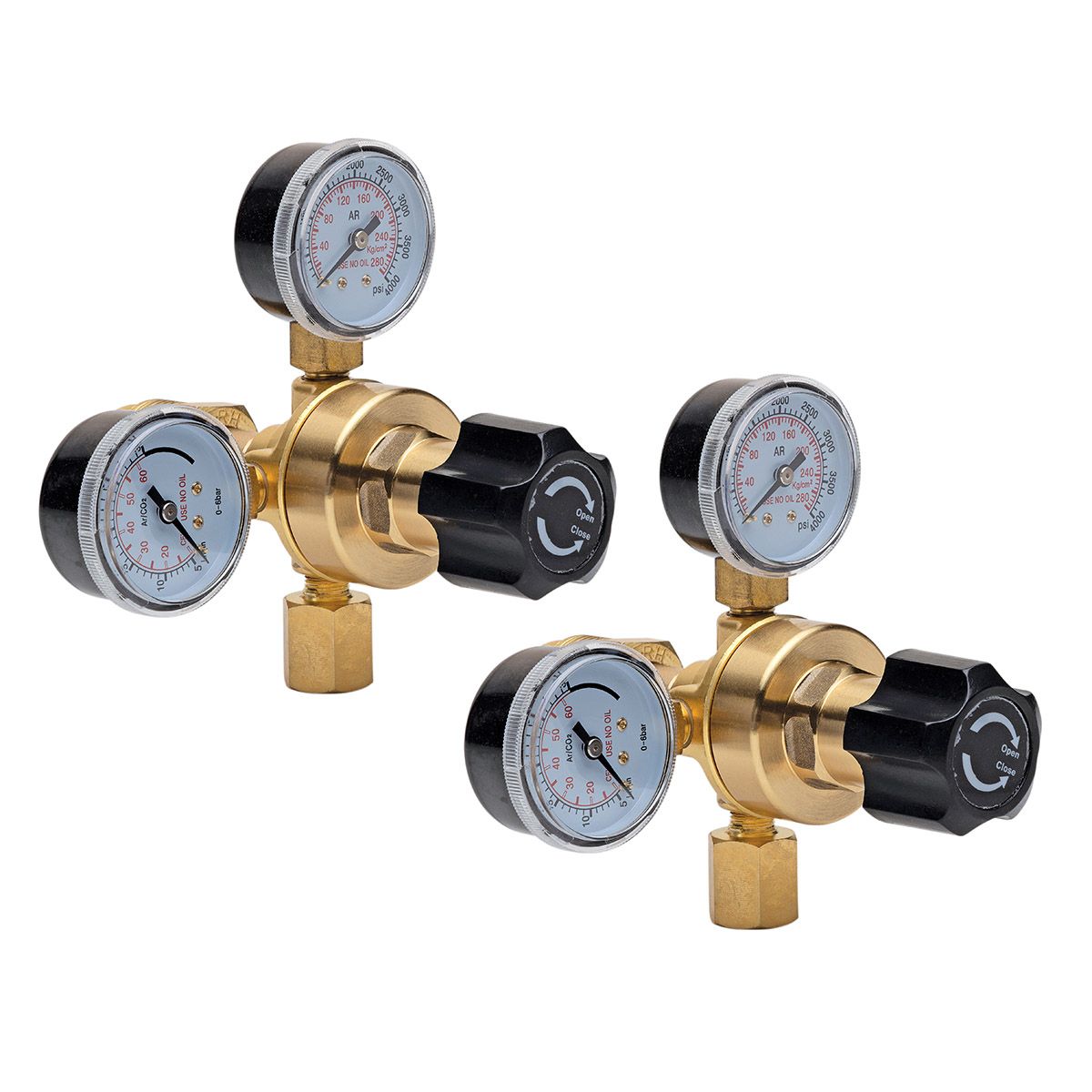

• 2 × Single-Gauge Gas Regulators with Shielding Gas Hoses

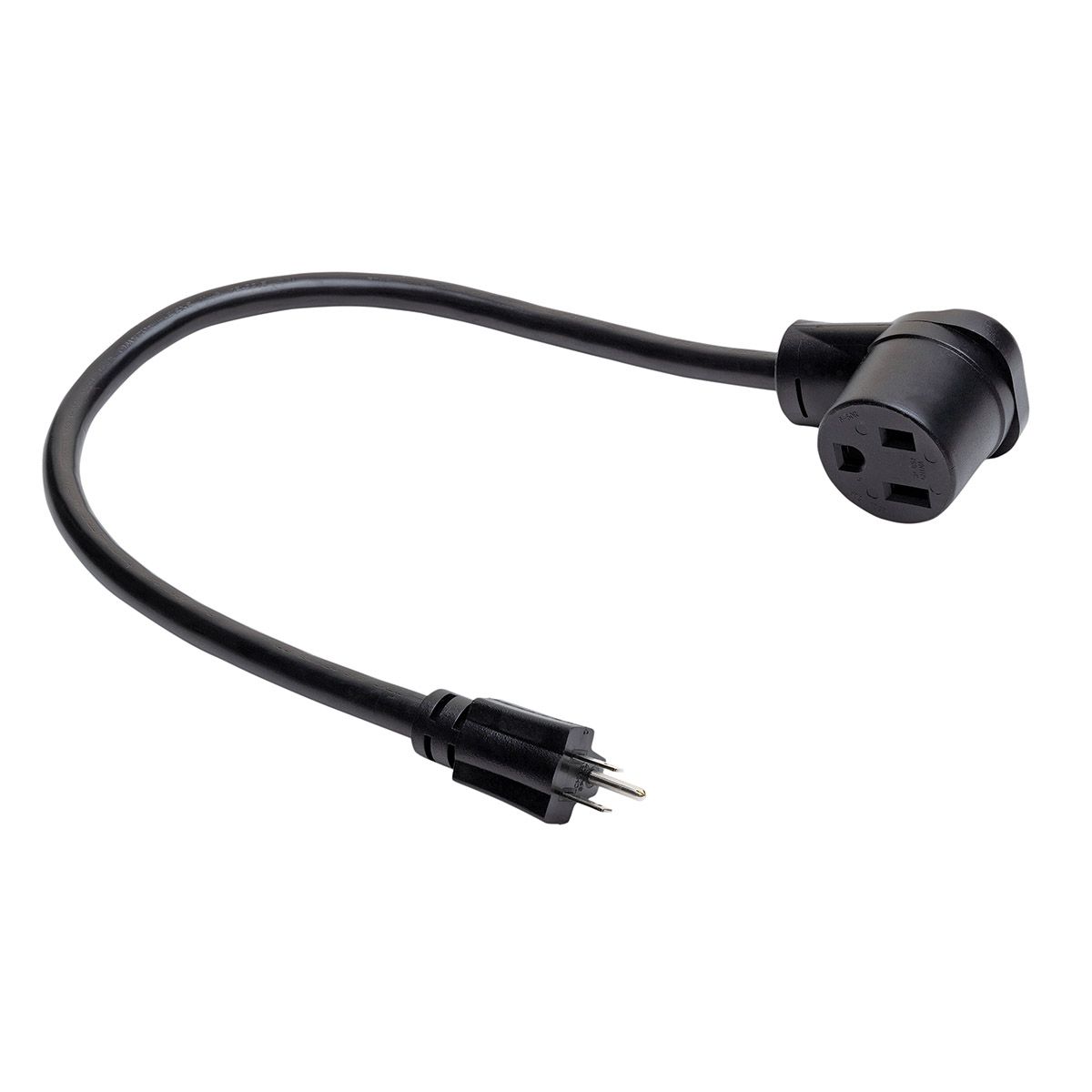

• 1 × Dual-Voltage Power Adapter Cord ($240\text{V}$ to $120\text{V}$)

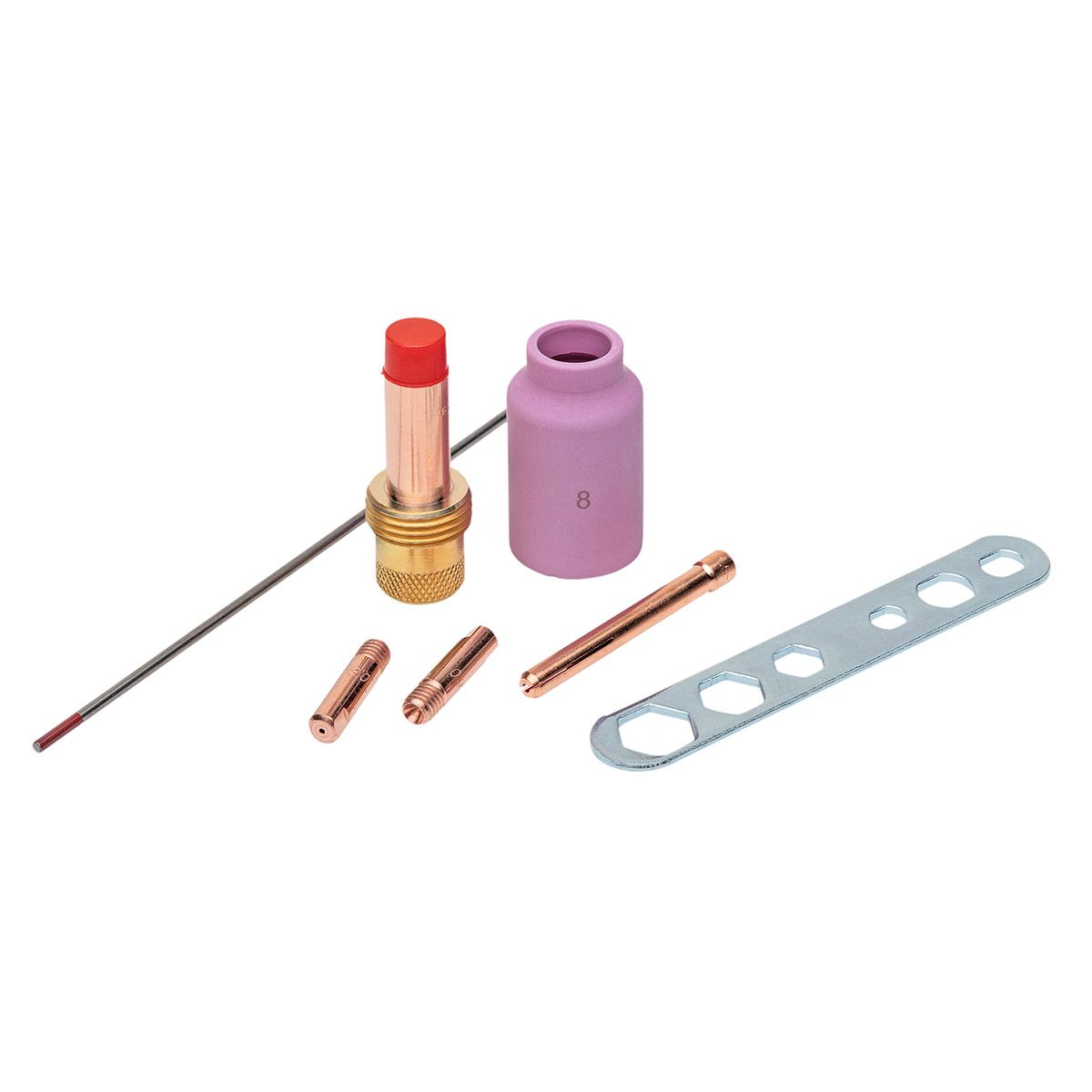

• 1 × Master Consumables Starter Kit (MIG Contact Tips, TIG Collets, and Alumina Nozzles)

Critical Field Installation & Operational Guidelines

• Dedicated Circuit Requirements: When operating the machine at high amperages on $240\text{V}$ power, ensure it is plugged into a dedicated $50\text{-Amp}$ NEMA 6-50R outlet. For $120\text{V}$ operation, use a dedicated $20\text{-Amp}$ circuit to prevent nuisance breaker trips during weld starts.

• Proper Gas Hose Hookup: Make sure to connect your pure Argon cylinder to the TIG gas inlet, and your $75/25\text{ Argon/CO2}$ mixed gas cylinder to the MIG gas inlet on the back of the welder. Double-check all threaded gas connections with soapy water to find and fix any gas leaks before welding.

• AC TIG Balance Settings for Aluminum: When welding aluminum, start with your AC balance set to 30% cleaning (EP) / 70% penetration (EN). If you see black pepper-like specks forming in the weld pool, increase the cleaning action slightly to help break through the tough surface oxide layer.

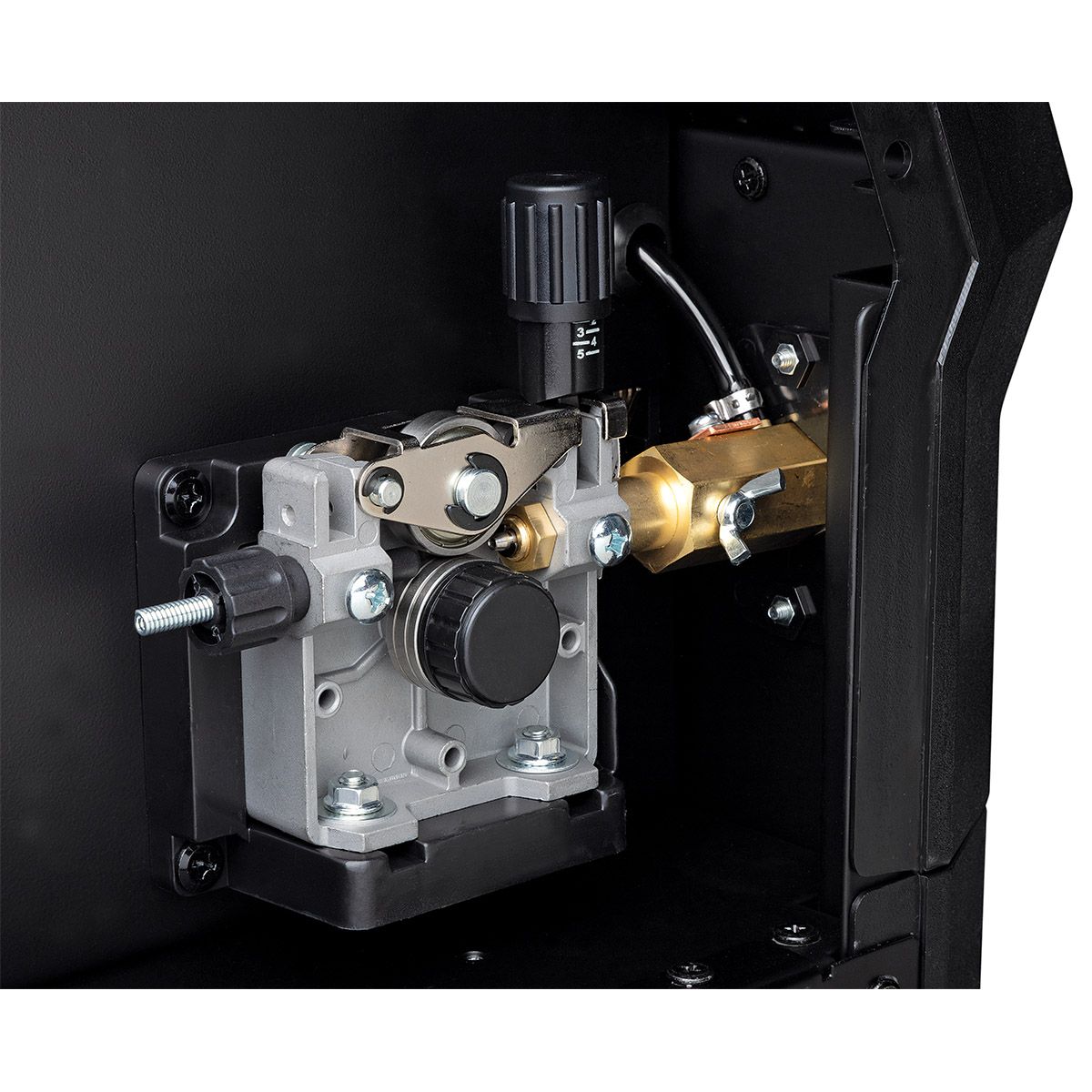

• Drive Roll Tension & Alignment: When setting up your MIG wire, match the drive roll groove to your wire type (use the V-groove roll for hard steel wire and the knurled groove roll for soft flux-core wire). Tighten the drive tension arm just enough to feed the wire smoothly—over-tightening can crush the wire and cause feed jams inside the torch liner.
