Autel J1772 Level 2 EV Charger Replacement Cable (25-Foot)
Choose options
The Autel J1772 Level 2 EV Charger Replacement Cable is a heavy-duty, weather-resistant replacement cord designed specifically for Autel MaxiCharger residential and commercial Level 2 EVSE units. Supporting variable charging currents from 16 Amps up to 50 Amps (12 kW), this 25-foot cable allows users to easily replace damaged, worn, or cut charging cords without needing to buy a completely new charging station.
Built with an ultra-flexible Thermoplastic Elastomer (TPE) jacket and engineered to meet NEMA 4X standards, the cable retains its pliability and softness in extreme sub-zero cold down to -40°C (-40°F). Featuring a standard SAE J1772 connector, it is compatible with all North American electric vehicles and plug-in hybrids.
Key Product Features & Core Technology
-
Universal J1772 Compatibility: Features a standard SAE J1772 gun and cable assembly compatible with all North American non-Tesla EVs (and Tesla vehicles using an OEM J1772 adapter).
-
High-Amp Output Range (16A–50A): Full internal wiring gauge supporting up to 50 Amps continuous output (12 kW @ 240V AC) for rapid Level 2 charging performance.
-

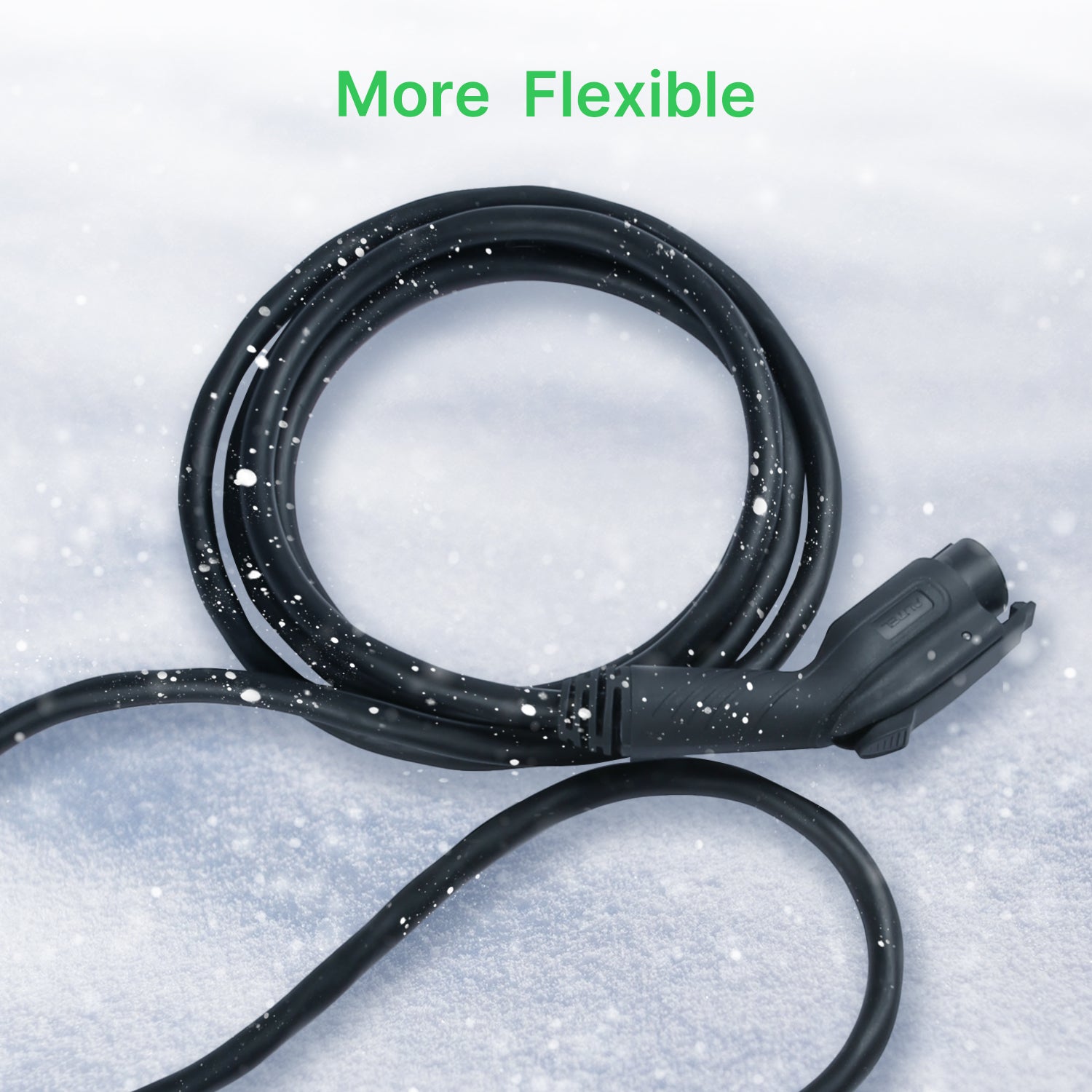

Extreme Cold-Weather Flexibility: TPE outer insulation is specially formulated to resist stiffening, freezing, or cracking, allowing smooth coiling even at -40°C (-40°F).
-
Drop-Resistant Gun Assembly: The ergonomic connector handle is constructed from impact-resistant polymer designed to survive accidental garage drops or concrete impacts.
-
UL Certified & Weatherproof: Rated NEMA 4X for indoor and outdoor exposure, protecting internal copper wiring against heavy rain, ice, snow, dust, and direct sunlight.
Technical Specifications Summary
| Technical Metric / Feature | Specification |
| Brand / Manufacturer | Autel Energy |
| Model Number / Part ID | 304002530 |

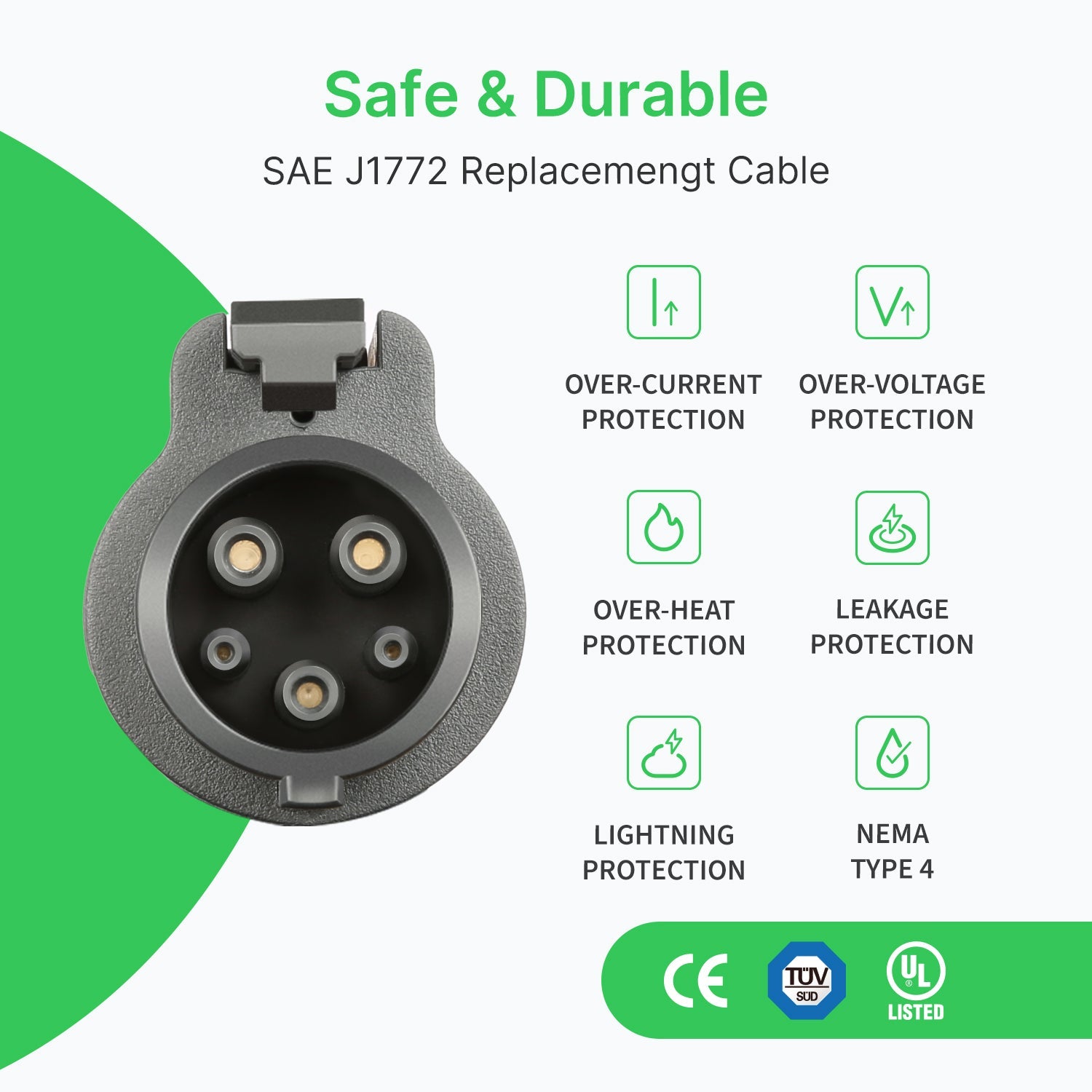

| Connector Standard | SAE J1772 (North American Type 1) |
| Rated Amperage & Power | Up to 50 Amps Continuous (12 kW Max Power Output) |
| Maximum Operating Voltage | 240V AC |

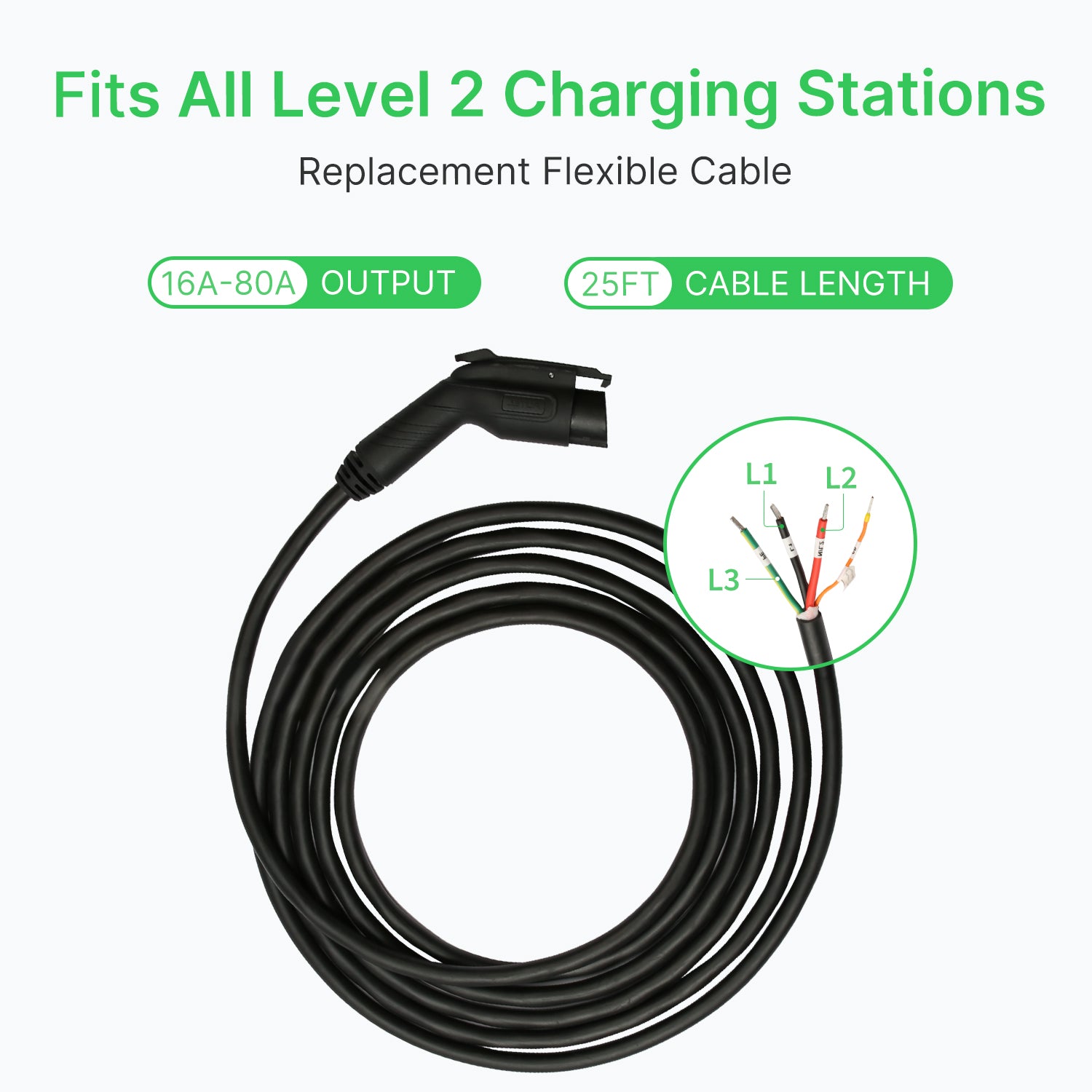

| Cable Length | 25 Feet (~7.6 Meters) |
| Insulation / Outer Jacket Material | Thermoplastic Elastomer (TPE), UV Resistant |
| Weather & Environmental Protection | NEMA 4X Rated (Indoor & Outdoor Certified) |
| Operating Temperature Range | -40°F to +131°F (-40°C to +55°C) |
| Safety Certifications | UL Certified |
| Item Weight | ~10.4 lbs (4.7 kg) |
| Manufacturer Warranty | 1-Year Limited Warranty |
Package Contents
-
1 × Autel 25-Foot J1772 Level 2 Replacement Cable & Gun Assembly
-
1 × Internal Terminal Connection / Wiring Guide
Safety & Installation Guidelines
Qualified Installation: Replacement cable wiring connects directly into the main circuit terminals inside the charger enclosure. Ensure power to the charger is completely turned off at the main electrical breaker prior to opening the unit.
Proper Strain Relief Engagement: When replacing the old cable, verify that the internal strain-relief gland nut is fully tightened around the outer cable jacket to maintain the unit's NEMA 4X waterproof seal.
Tesla Vehicle Compatibility: While this J1772 replacement cable is designed for standard North American EV ports, Tesla owners will require a standard J1772-to-NACS adapter to connect to their vehicle.
