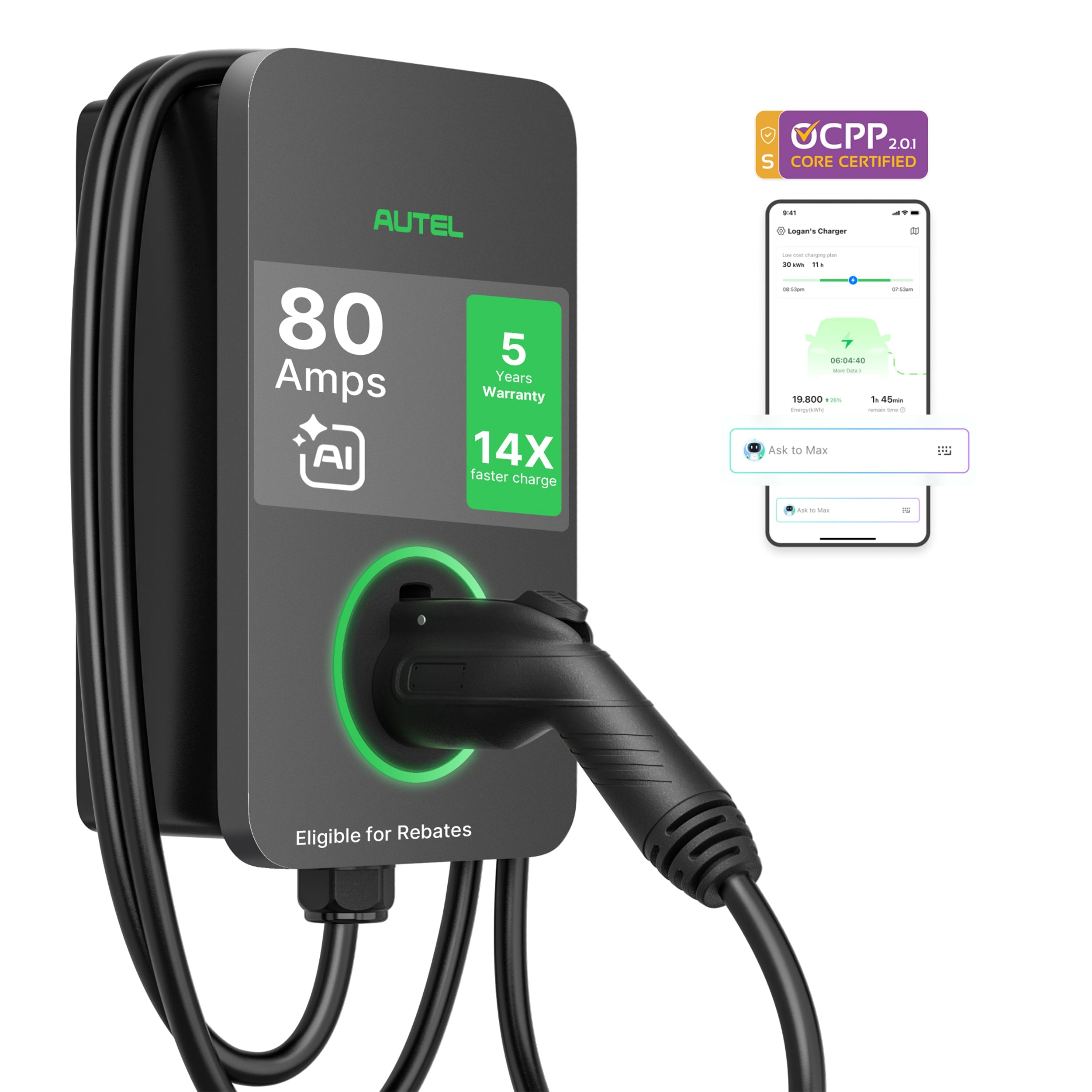

Autel MaxiCharger AC Pro 80A 19.2kW Residential EV Charger | CA

Premium Ultra-Fast 19.2kW Level 2 Electric Vehicle Charging Station, Secure Hardwired Professional Installation, Autel Charge App with Smart Scheduling, J1772 & NACS Native Formats, NEMA 3S Weatherproof, and 25-Foot Heavy-Duty Cable

Achieve the absolute pinnacle of residential charging speeds, eliminate range anxiety, and prepare your garage for the next generation of high-capacity electric vehicles with the industry-leading Autel MaxiCharger AC Home 80A EV Charger. Custom-engineered to deliver a massive 19.2kW of continuous Level 2 power, this heavy-duty smart charging station is the most powerful home unit on the market. Charging up to 9 times faster than standard Level 1 emergency cords, it adds up to 70 miles (113 km) of driving range per hour—making it the ultimate charging solution for large-battery electric trucks (like the Ford F-150 Lightning or Rivian R1T), high-performance SUVs, and multi-EV households.

Housed in a rugged, impact-resistant NEMA 3S weatherproof enclosure with an IK10 durability rating, the MaxiCharger is built to operate flawlessly in extreme indoor or outdoor environments, from freezing sub-zero winters down to $-40^\circ\text{F}$ ($-40^\circ\text{C}$) to blistering desert heat up to $131^\circ\text{F}$ ($55^\circ\text{C}$). For seamless compatibility, the charger is available with either a universal SAE J1772 nozzle or a native North American Charging Standard (NACS) connector. Powered by the intelligent Autel Charge app, you can configure automatic off-peak charging schedules to slash your utility bills, track real-time electrical metrics, and easily manage secure user access via Wi-Fi, Bluetooth, Ethernet, or the integrated RFID card reader.

Key Product Features & Core Engineering

• Industry-Leading 19.2kW Output: Delivers up to 80 Amps of continuous charging power to fully replenish even the largest EV battery packs in record time.

• 16-Point Smart Safety Monitoring: Built with a comprehensive safety diagnostic matrix that monitors temperatures, voltages, and currents in real time, intelligently detecting poor wiring or wall-socket connections before they cause issues.

• Dual Connector Formats: Available with either a standard SAE J1772 Type 1 plug or a Tesla-native NACS connector to eliminate the need for adapters.

• NEMA 3S & IK10 Durability: Designed with a heavy-duty, commercial-grade outer shell that easily shrugs off wind-driven rain, blowing snow, dust, ice, and accidental high-force impacts.

• Smart App Energy Management: Program your sessions via the Autel Charge app to align with local Time-of-Use (TOU) utility rates, automatically charging when electricity is cheapest.

• Flexible Amperage Configuration: Easily adjust the charger's active current draw from 6 Amps up to 80 Amps using either the mobile app or internal hardware DIP switches to match your home's active electrical capacity.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Autel MaxiCharger AC Home 80A Charging Wallbox with Integrated Heavy-Duty Cable

• 1 × One-Click Snap-In Wall Mounting Plate & High-Strength Structural Fasteners

• 2 × Secure RFID User Access Cards

• 1 × Premium Cable Holster and Hook Dock

• 1 × Master Quick-Start Installation Guide, App Pairing QR Code Card, and User Manual

Critical Field Installation & Operational Guidelines

• Strict Professional Hardwire & Panel Requirements: Because this heavy-duty charger pulls a continuous 80 Amps, it must be directly hardwired by a licensed electrician using a dedicated 100-Amp double-pole circuit breaker. It cannot be connected to plug outlets. Ensure your home's main electrical panel has sufficient service capacity (typically 200A or higher is recommended) before installing this unit.

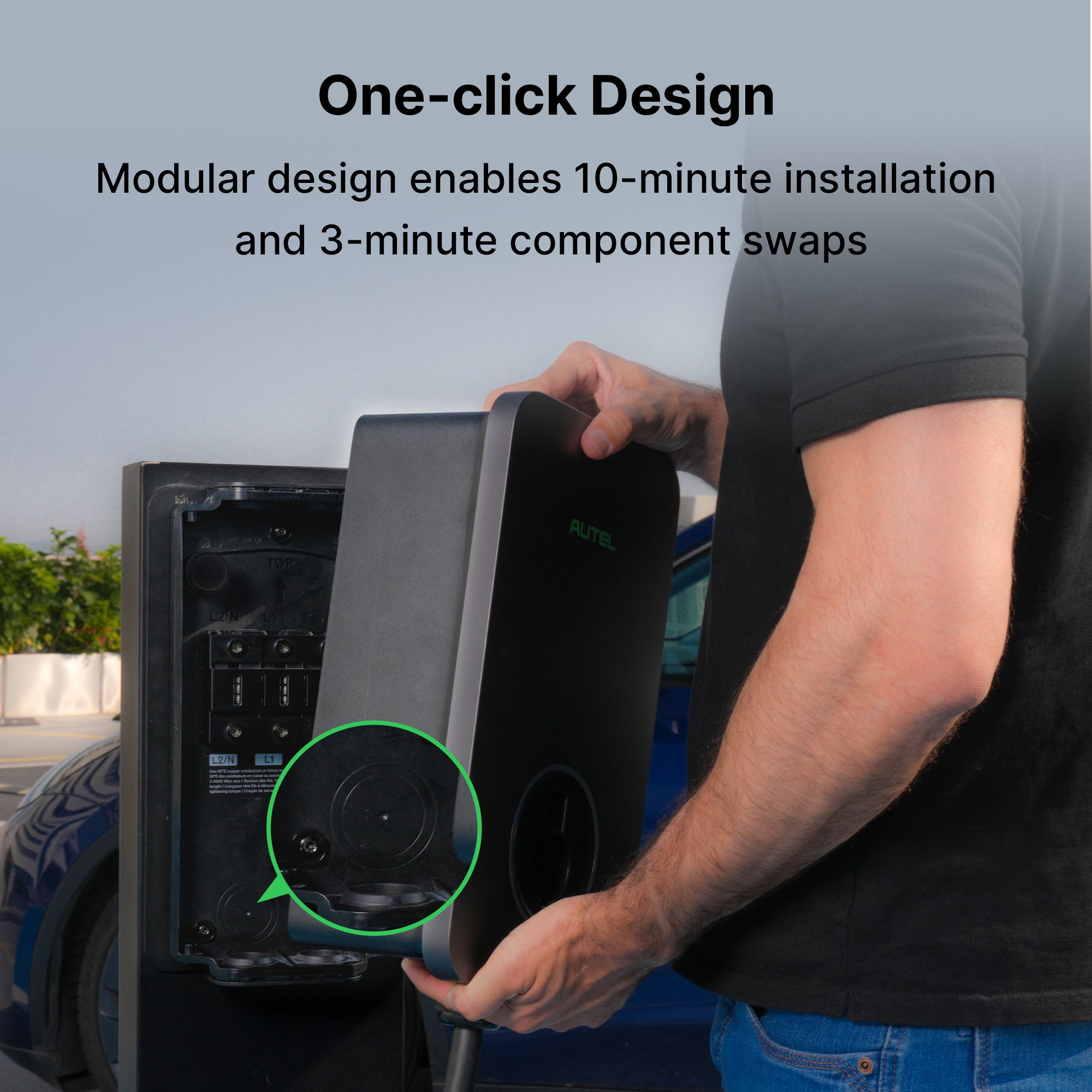

• 10-Minute Snap-In Installation: The MaxiCharger features a convenient "One-Click" snap-in backplate. Your electrician simply mounts and wires the backplate first, then slides and clicks the main charging body securely into place. This simplifies installation, maintenance, and future hardware upgrades.

• Solar Photovoltaic Integration: If you have home solar panels, utilize the Autel Charge app to configure "PV Green Electricity" mode. This allows the charger to automatically prioritize excess solar energy generated by your roof to charge your vehicle, providing a completely carbon-neutral, free charge.
