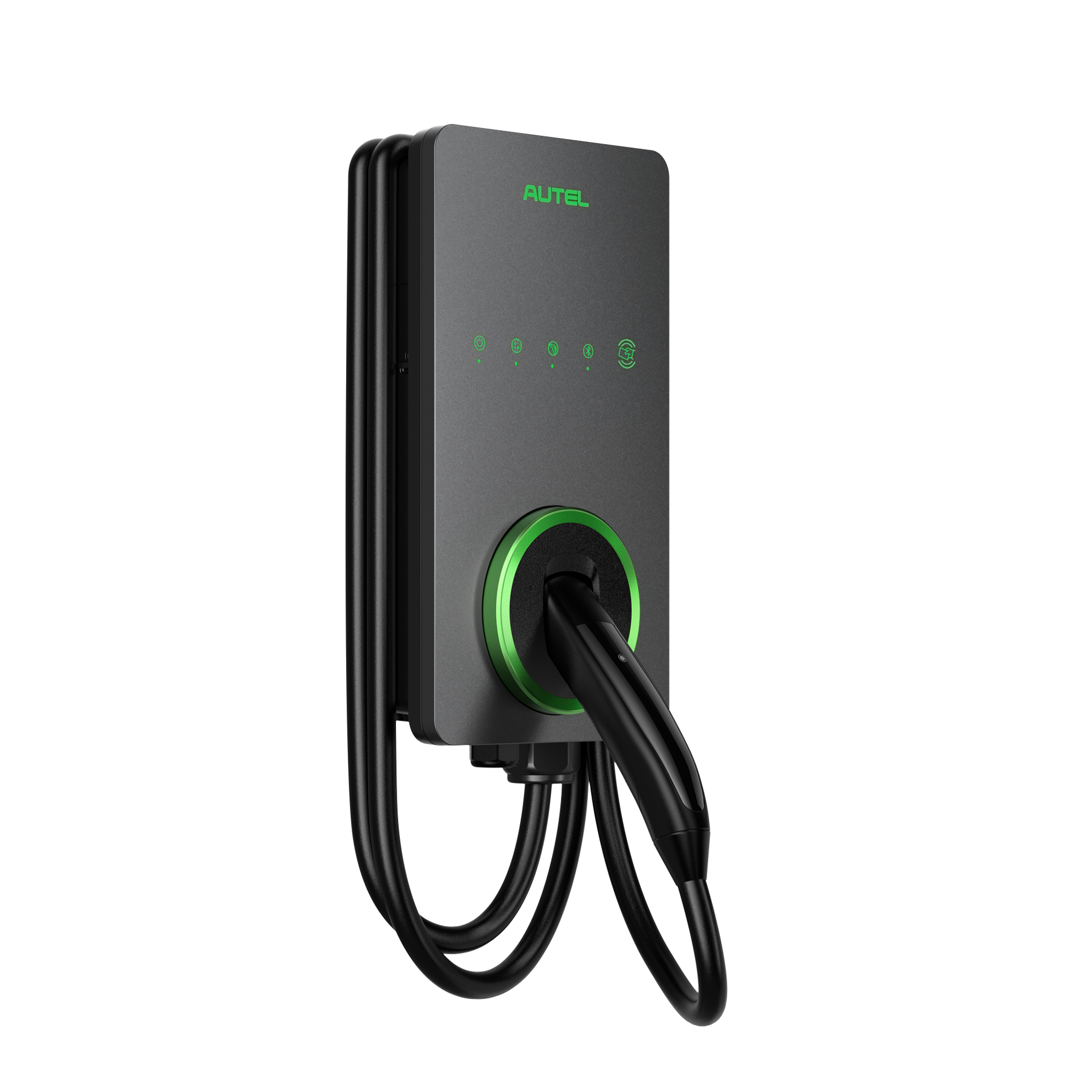

Autel MaxiCharger AC Lite Home 50A 12kW EV Charger NACS

Premium Level 2 Tesla-Compatible Smart EV Charging Station, Secure Hardwired Professional Installation, Autel Charge App Control, All-Weather NEMA 4X Protection, and 25-Foot Low-Temperature Flexible Cable

Refuel your Tesla or NACS-equipped electric vehicle at peak residential speeds, eliminate cable adapters, and minimize charging costs with the Autel MaxiCharger AC Lite Home 50A 12kW EV Charger (NACS Edition). Custom-tailored for Tesla drivers and owners of newer North American Charging Standard (NACS) vehicles, this premium Level 2 smart home charger delivers up to 12kW (50 Amps) of continuous power. Operating up to 9 times faster than a standard Level 1 emergency wall outlet cord, it adds up to 48 miles (77 km) of driving range per hour of charge—perfectly replenishing even high-capacity EV batteries overnight.

The AC Lite Home NACS is housed in a rugged, compact NEMA 4X weatherproof enclosure that stands up to rain, blowing snow, dust, and ice, operating reliably in temperatures as low as $-40^\circ\text{F}$ ($-40^\circ\text{C}$). For ultimate electrical safety and a clean, flush aesthetic, this unit is designed for a permanent, professional hardwired installation. Controlled by the intelligent Autel Charge app, you can configure cheap off-peak charging schedules, monitor real-time electrical draw, and control your charger using integrated Wi-Fi, Bluetooth, or RFID access.

Key Product Features & Core Engineering

• Native Tesla/NACS Connector: Features an integrated, ultra-compact NACS (North American Charging Standard) plug designed specifically for Tesla vehicles and native NACS-compatible EVs, eliminating the hassle and power loss of using adapters.

• Rapid 12kW Level 2 Speeds: Outputs up to 50 Amps of continuous power (requires a dedicated 60A circuit breaker) to charge high-capacity EV batteries in record time.

• Smart Autel Charge App: Remotely start, stop, monitor, and schedule charging sessions. Input your local utility provider's Time-of-Use (TOU) rates to automatically charge when electricity is cheapest.

• Rugged NEMA 4X Weatherproof Build: Rated for heavy-duty indoor or outdoor use, providing top-tier resistance against heavy rain, blowing snow, dust, ice, and corrosion.

• Flexible 25-Foot Cable: Includes an exceptionally durable 25-foot charging cord that stays highly flexible and easy to coil in freezing temperatures as low as $-40^\circ\text{F}$.

• Flexible Connectivity Matrix: Effortlessly connect and manage your charger using Bluetooth, dual-band Wi-Fi, physical Ethernet, RS485, or CAN interfaces.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Autel MaxiCharger AC Lite Home 50A Charging Unit with Integrated 25-Foot NACS Cable

• 1 × Heavy-Duty Wall Mounting Bracket & Structural Hardware Fastener Pack

• 1 × Integrated Cable J-Hook and In-Body NACS Connector Holster

• 1 × Master Quick-Start Installation Guide, App Configuration QR Code, and User Manual

• (Note: RFID cards are not included in the Lite package and can be purchased separately if needed)

Critical Field Installation & Operational Guidelines

• Strict Professional Hardwire Requirement: Because this high-performance charger pulls a continuous 50 Amps, it must be directly hardwired into your electrical panel by a licensed electrician. It cannot be connected to standard NEMA 14-50 or 6-50 plug receptacles, as standard plugs are capped at a maximum continuous current of 40 Amps. It requires heavy-duty copper supply wiring matching local electrical codes for a dedicated 60A circuit.

• Flexible Amperage Control: If your home's active electrical grid is close to capacity, you can adjust the charger's output current from 6 Amps up to 50 Amps using the Autel Charge app. This allows you to safely match the charger's draw to your home's available service line without upgrading your panel.

• Incentive and Rebate Optimization: Because this charger is both CSA and Energy Star certified, it is highly eligible for local utility incentives across the US and Canada (which can refund up to $1,000 of the purchase and installation costs in certain regions). Save your purchase receipt and professional installation invoice to apply for local programs.
