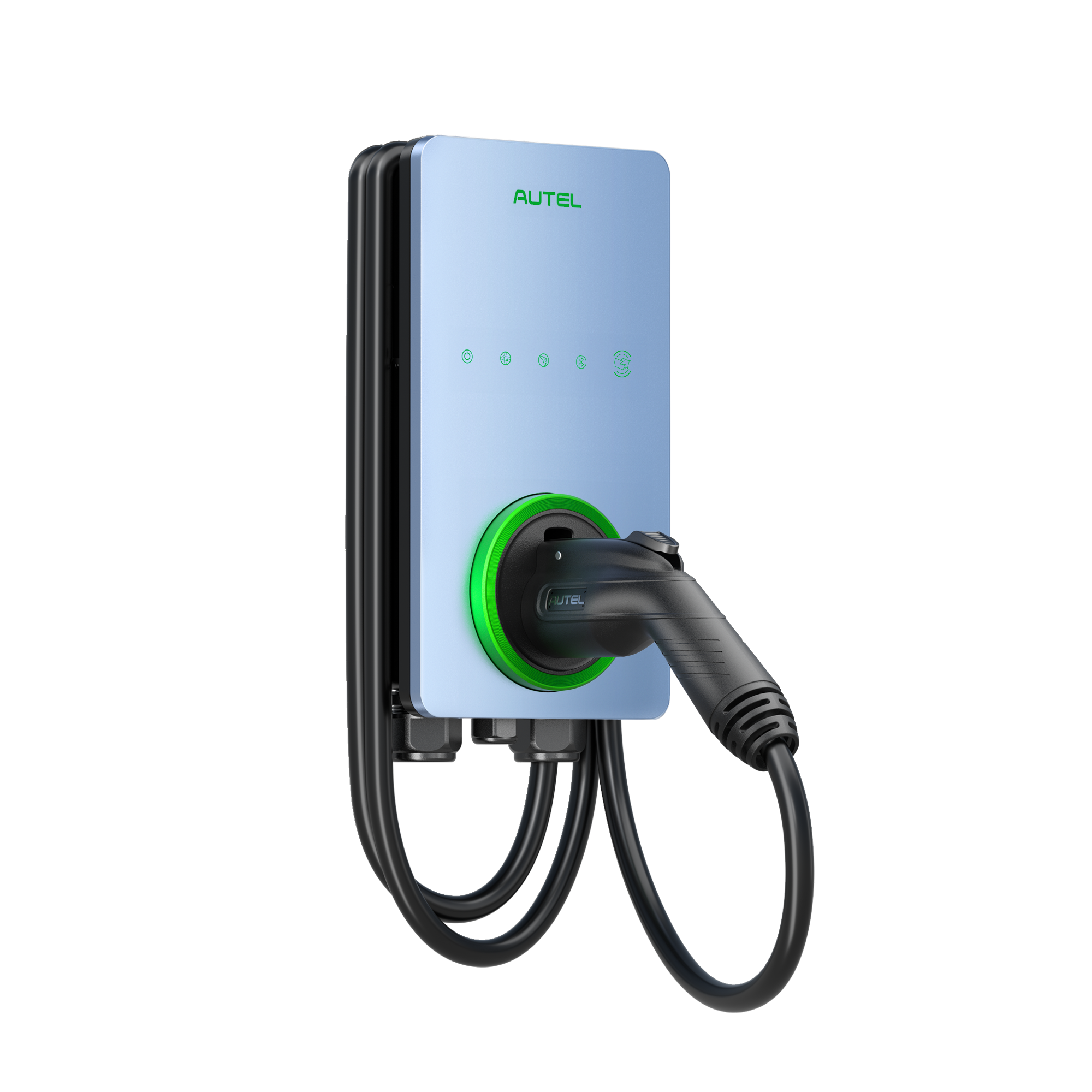

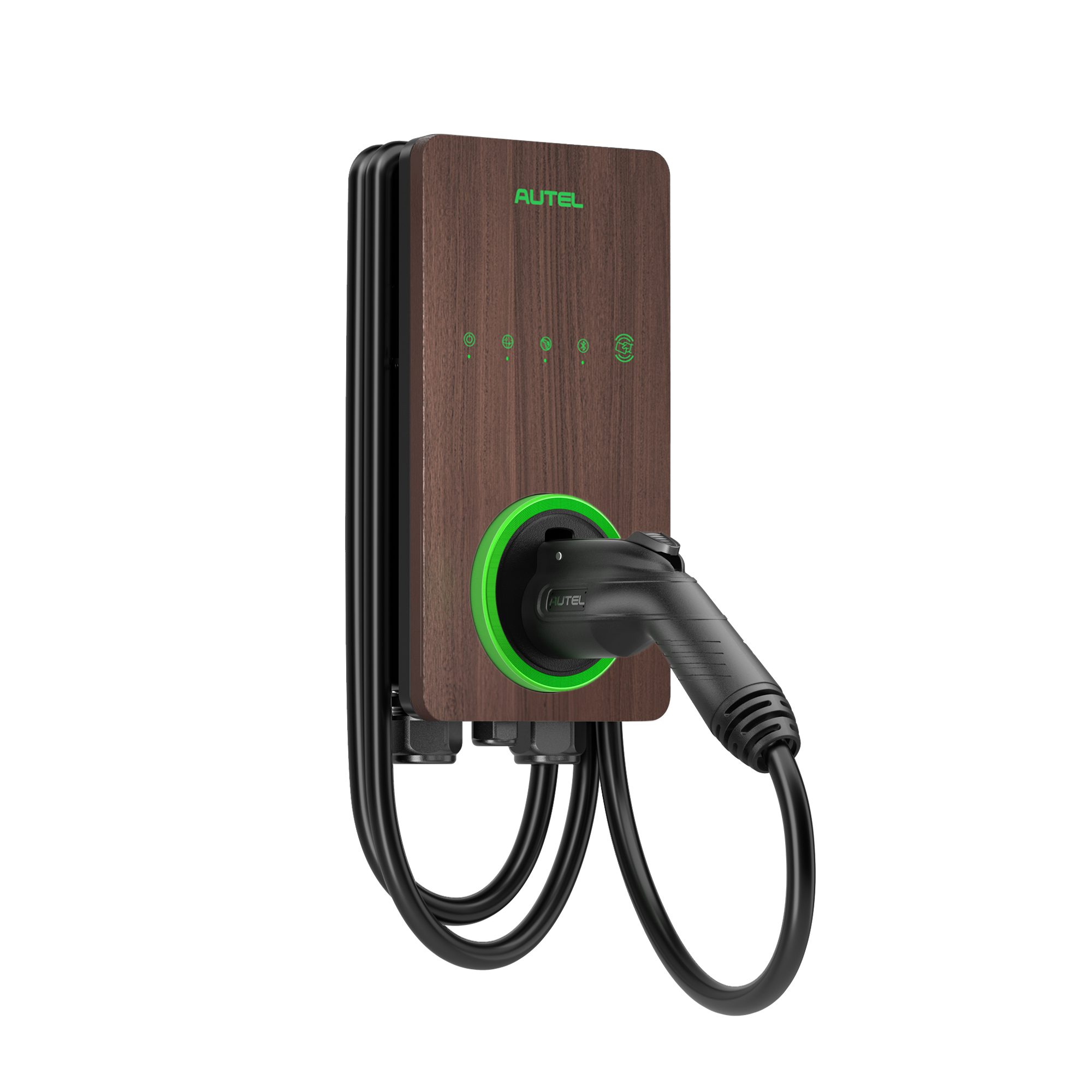

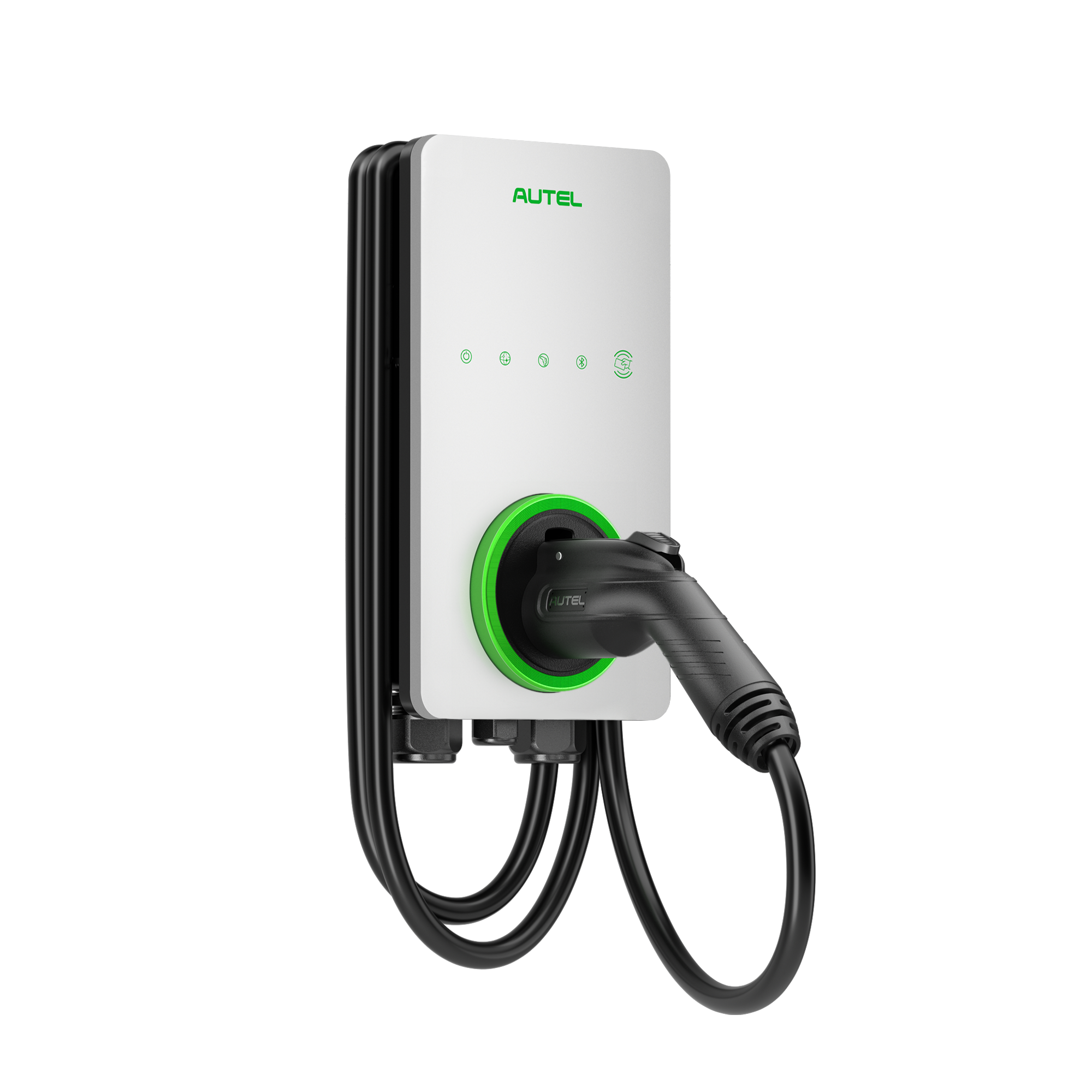

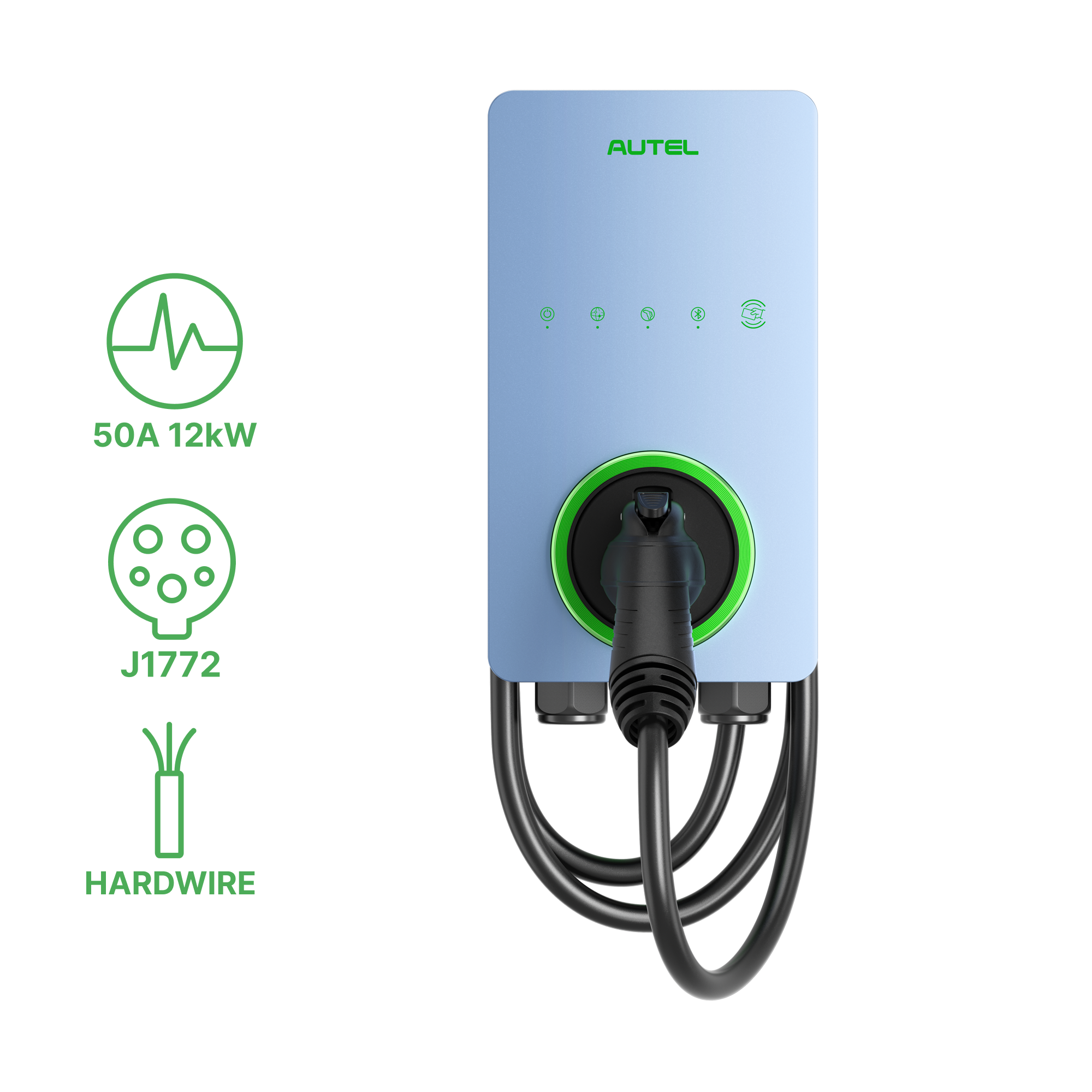

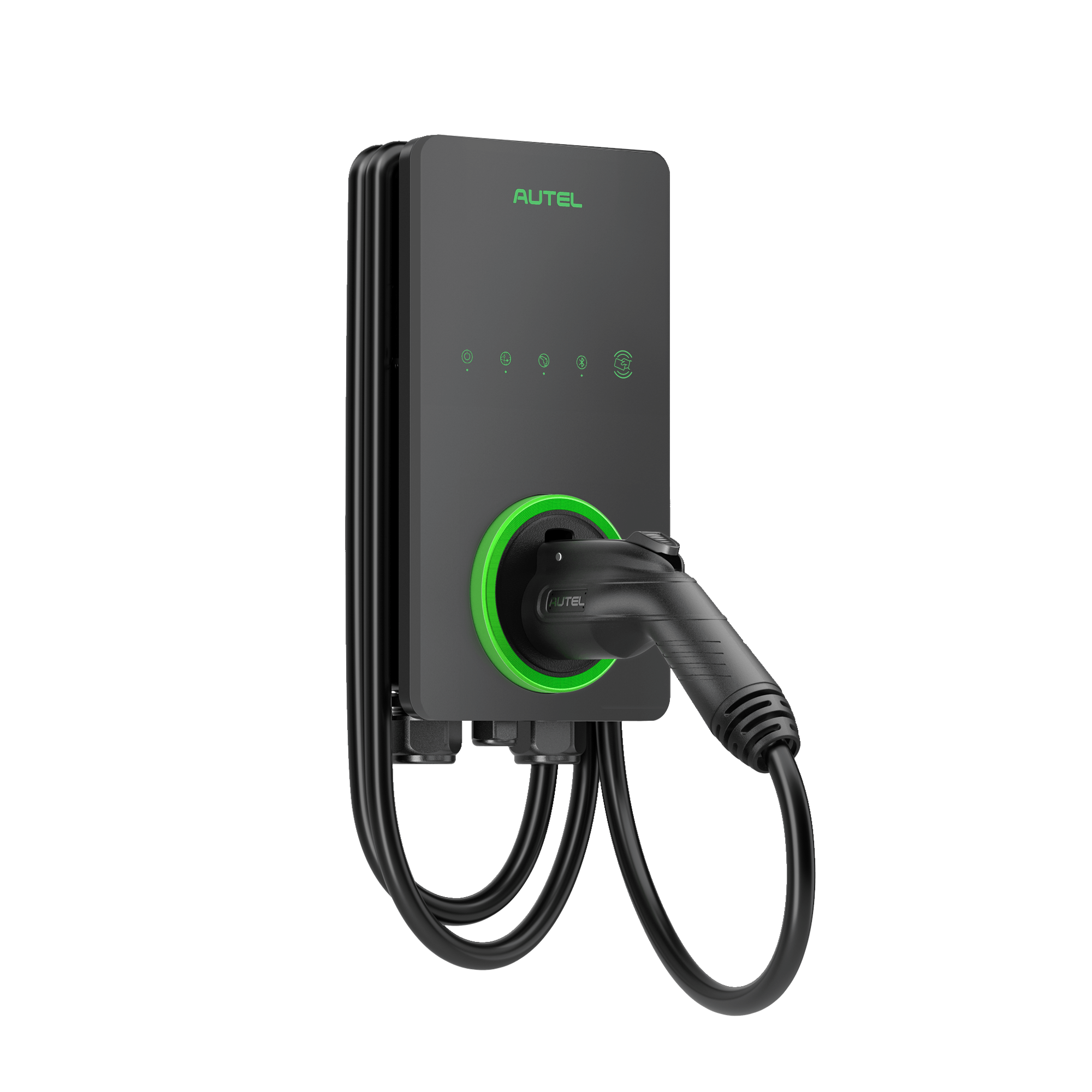

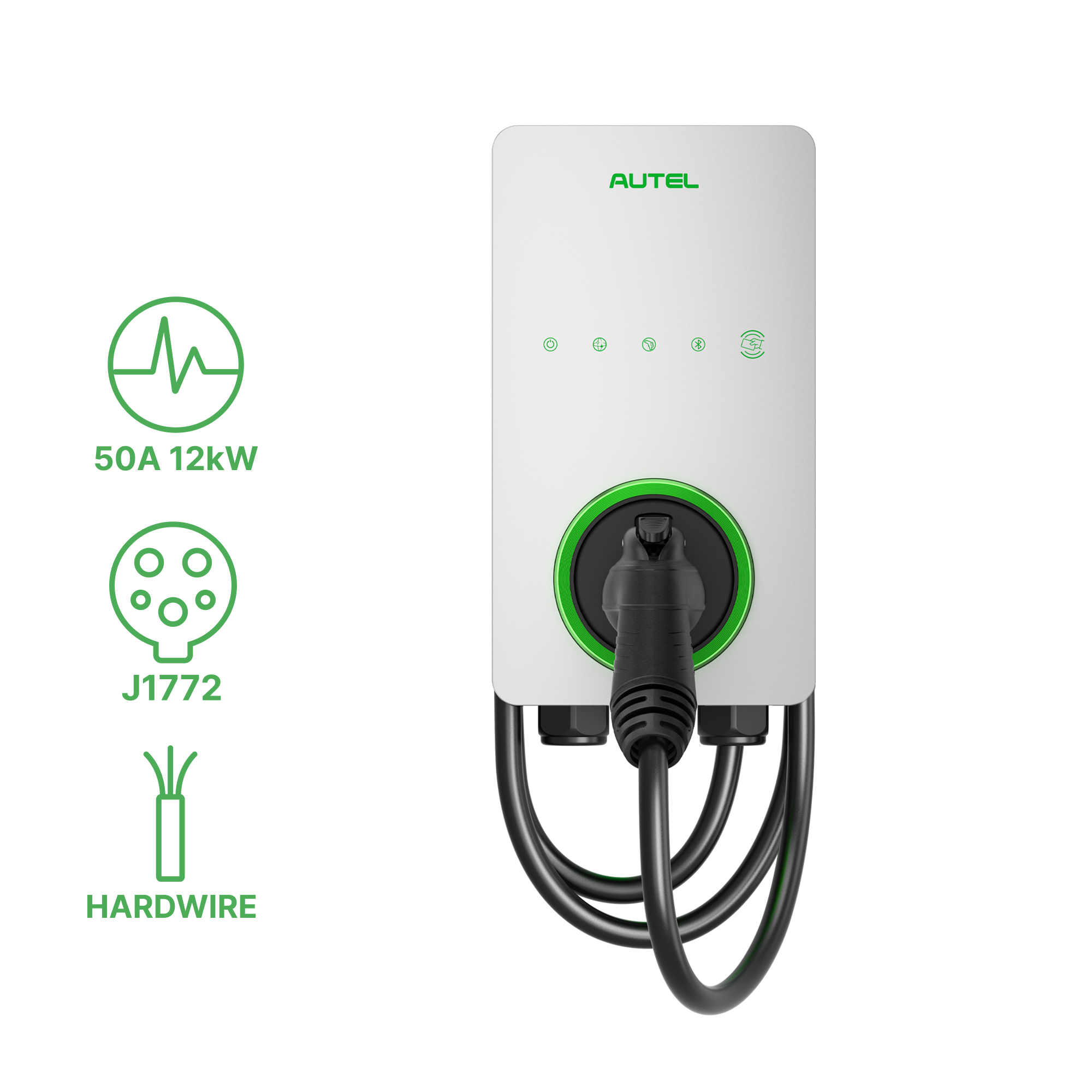

Autel MaxiCharger AC Lite Home 50A 12kW EV Charger

Sleek 12kW Level 2 Smart Electric Vehicle Charging Station, Hardwired Professional Security, Autel Charge App with Max AI Voice Assistant, J1772 & NACS Compatibility, NEMA 4X Weatherproof, and 25-Foot Heavy-Duty Cable

Supercharge your daily electric vehicle routine, eliminate range anxiety, and enjoy ultra-fast Level 2 home refueling with the Autel MaxiCharger AC Lite Home 50A EV Charger. Built as a streamlined, high-performance smart home charging station, this powerful unit delivers up to 12kW (50 Amps) of continuous charging capacity. Charging up to 9 times faster than standard Level 1 emergency wall outlet cords, it adds up to 48 miles ($78\text{ km}$) of driving range per charging hour—perfectly replenishing high-capacity EV batteries overnight to keep you ready for any road trip.

The AC Lite Home is protected by a rugged, industrial-grade NEMA 4X weatherproof enclosure designed to function flawlessly in extreme conditions, from sub-zero winter blizzards down to $-40^\circ\text{F}$ ($-40^\circ\text{C}$) to blistering summer heat up to $131^\circ\text{F}$ ($55^\circ\text{C}$). For ultimate vehicle compatibility, the charger is available in both universal SAE J1772 and North American Charging Standard (NACS) formats. Powered by the intelligent Autel Charge app, you can configure smart off-peak charging schedules, track real-time power metrics, and control your charger using the industry's first AI-powered voice assistant.

Key Product Features & Core Engineering

• Maximum 12kW Level 2 Speeds: Delivers up to 50 Amps of reliable charging power (requires a dedicated 60A circuit breaker) to charge high-capacity EV batteries in record time.

• Smart AI Charging & Voice Control: Features the industry's first AI-powered charging app integrated with the Max Voice Assistant—letting you check progress, adjust current, and start/stop charging using simple voice commands via Siri or Max.

• J1772 or NACS Plug Options: Available with either a standard SAE J1772 connector for non-Tesla EVs or an integrated NACS plug designed specifically for seamless Tesla and NACS-native vehicle connections.

• NEMA 4X Weatherproof Build: Engineered for heavy-duty indoor or outdoor use, providing superior resistance against heavy rain, wind-blown snow, dust, ice, and corrosion.

• All-In-One Connectivity Matrix: Effortlessly connect and manage your charger using Bluetooth, dual-band Wi-Fi, physical Ethernet, RS485, or CAN interfaces.

• Autel Charge App Scheduling: Program your charger to run automatically during cheap off-peak overnight hours, track live charging analytics, and change active amperage from 6A to 50A.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Autel MaxiCharger AC Lite Home 50A Charging Unit with Integrated 25-Foot Cable

• 1 × Heavy-Duty Wall Mounting Bracket & Structural Hardware Fastener Pack

• 1 × Integrated Cable J-Hook and In-Body Connector Holster

• 1 × Master Quick-Start Installation Guide, App Configuration QR Code, and User Manual

• (Note: RFID cards are not included in the Lite package and can be purchased separately if needed)

Critical Field Installation & Operational Guidelines

• Strict Professional Hardwire Requirement: Because this charger pulls a continuous 50 Amps, it must be directly hardwired into your electrical panel by a licensed electrician. It cannot be connected to standard NEMA 14-50 or 6-50 plug receptacles, as standard plugs are capped at a maximum continuous current of 40 Amps. It requires heavy-duty copper supply wiring matching local electrical codes for a dedicated 60A circuit.

• Advanced Multi-Unit Power Sharing: One of the standout features of the Lite 50A is its built-in local load sharing. Up to 6 units can be networked together on a single electrical circuit using standard Ethernet, CAN, or RS485 lines to balance output power automatically across multiple charging vehicles.

• Incentive and Rebate Optimization: Because this charger is both CSA and Energy Star certified, it is highly eligible for local utility incentives across the US and Canada (such as the QC rebate program in Canada, which can refund up to $600 CAD). Save your purchase receipt and professional installation invoice to apply for local programs.
