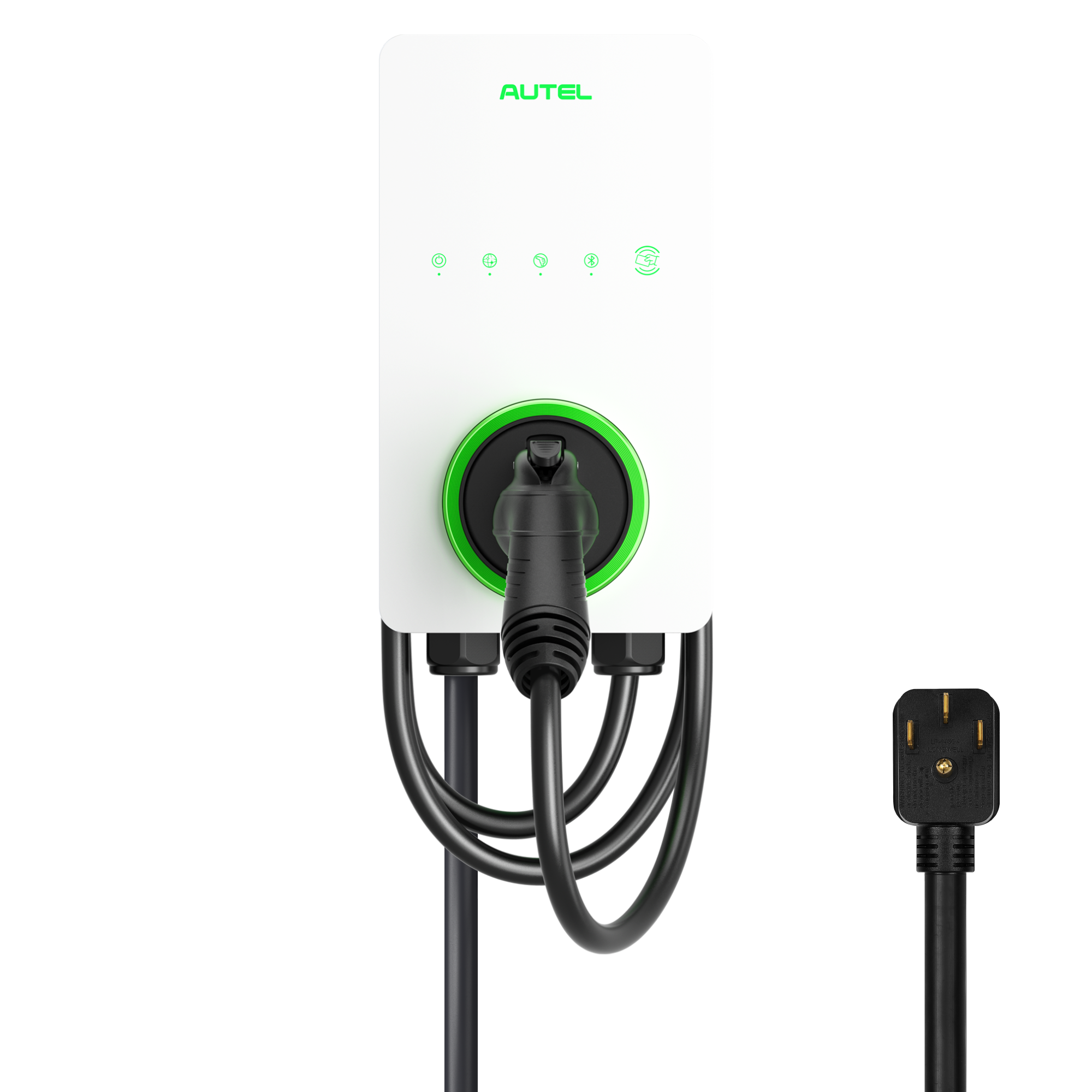

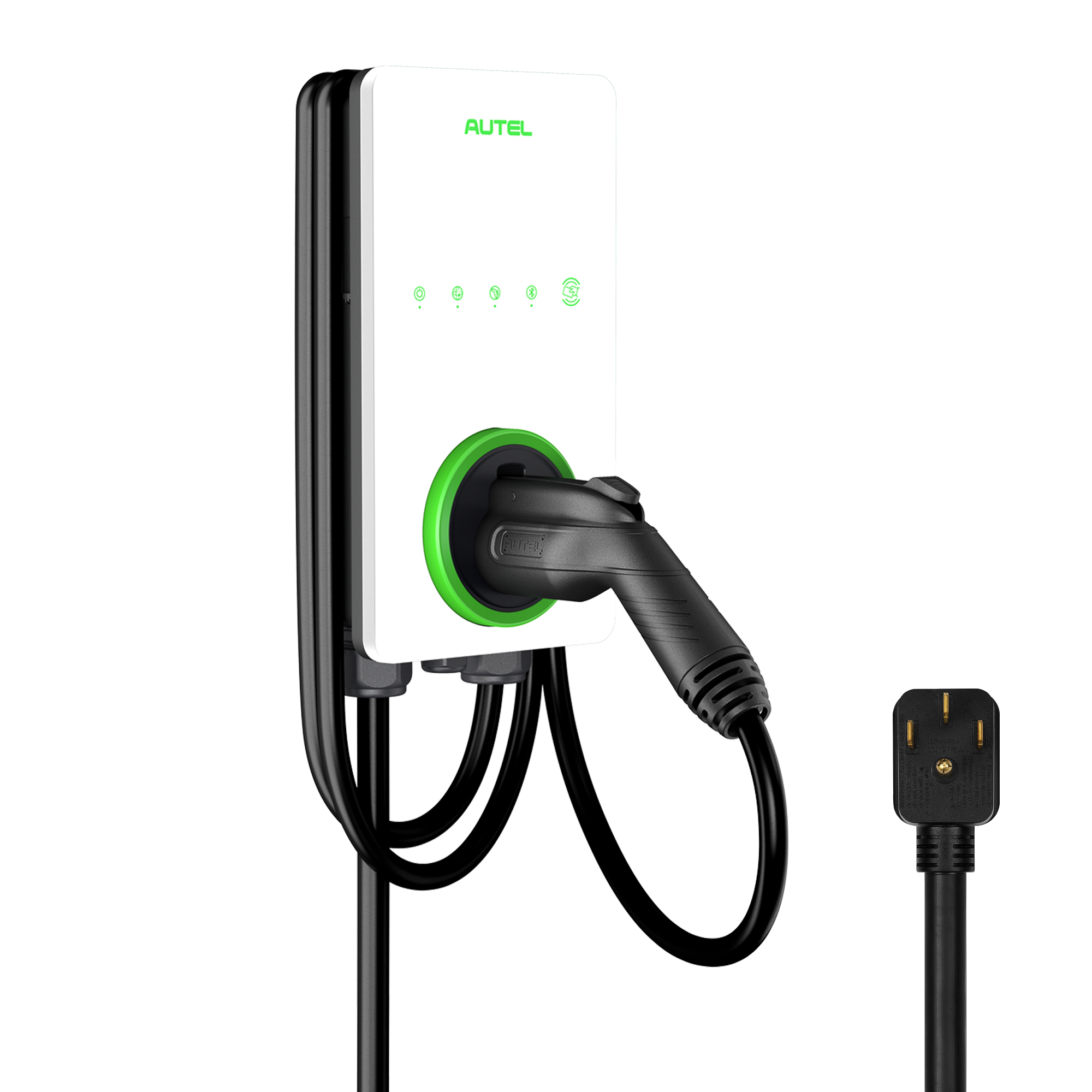

Autel MaxiCharger AC Lite Home 40A Level 2 EV Charger (Canada Edition)

The Autel MaxiCharger AC Lite Home 40A is an accessible, smart Level 2 electric vehicle charger engineered specifically for North American residential use. Delivering up to 9.6 kW of charging power (240V AC @ 40A), it provides rapid home charging—adding up to 48 km (30 miles) of range per hour, making it up to 7 times faster than a standard Level 1 wall outlet charger.

Designed for plug-and-play simplicity, the AC Lite features a built-in J1772 holster, a generous 25-foot charging cable, and flexible connection options (available with a standard NEMA 14-50 plug, NEMA 6-50 plug, or hardwire installation). Tested to withstand harsh weather with its NEMA 4X rating and extreme sub-zero operation down to -40°C (-40°F), it combines rugged build quality with full app control via Bluetooth and Wi-Fi.

Key Product Features & Core Technology

• 9.6 kW Rapid Level 2 Charging: Delivers up to 40 Amps of continuous current on a 50A circuit breaker, adding approximately 48 km (30 miles) of range per hour of charge.

• Plug-and-Play Installation Options: Available with a pre-attached NEMA 14-50 or NEMA 6-50 plug for quick 5-minute installation into an existing 240V outlet, or hardwired directly into your panel.

• Flexible Amperage Control: Output current can be dynamically adjusted via the Autel Charge App from 6A to 40A to safely match your home's electrical panel capacity.

• Smart AI Voice Assistant & App Control: Features Max, the AI voice assistant. Use the Autel Charge Mobile App via Bluetooth or Wi-Fi to schedule off-peak charging sessions, track real-time power metrics, and estimate utility costs.

• NEMA 4X Outdoor Protection: Built with robust weatherproofing to protect internal electronics against heavy rain, snow, ice, dust, and direct sunlight (-40°C to +55°C operational range).

• Universal Vehicle Compatibility: Equipped with a standard SAE J1772 connector, compatible with all North American non-Tesla EVs (and Tesla models using an OEM adapter).

• Safety & Rebate Certified: Fully CSA C22.2 certified for Canadian safety compliance and ENERGY STAR certified for maximum energy efficiency and local utility rebate eligibility.

Technical Specifications Summary

Package Contents

• 1 × Autel MaxiCharger AC Lite Home 40A Wallbox Unit

• 1 × 25-Foot Universal J1772 Charging Cable with Integrated Holster

• 1 × Power Input Cord (NEMA 14-50 or 6-50, depending on model selected)

• 1 × Steel Mounting Bracket & Fastener Hardware Pack

• 1 × Wall Drilling Anchor Template

• 1 × Quick Reference & Operations Guide

Safety & Installation Guidelines

Circuit Breaker Requirements: Running the charger at its maximum 40 Amp continuous output requires a dedicated 50 Amp double-pole circuit breaker (per National Electric Code / Canadian Electrical Code continuous load guidelines).

Outdoor Outlet Placement: If using a NEMA plug-in model outdoors, ensure the receptacle is installed in a weather-resistant (in-use) enclosure rated for outdoor use.

Cold-Weather Care: The 25-foot TPE charging cable remains pliable down to -40°C; however, uncoiling the cable prior to major ice or snow accumulation helps maintain ease of use.
