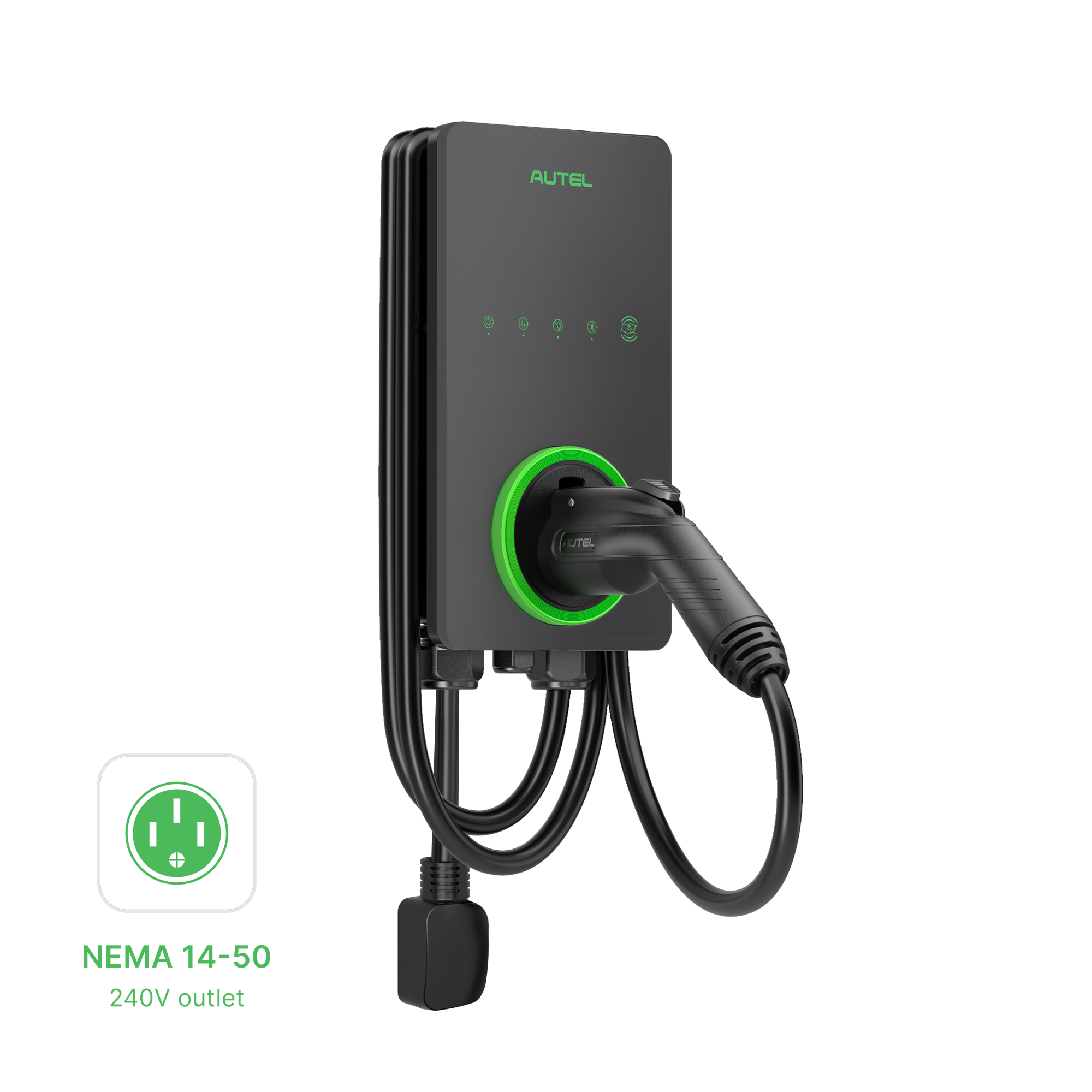

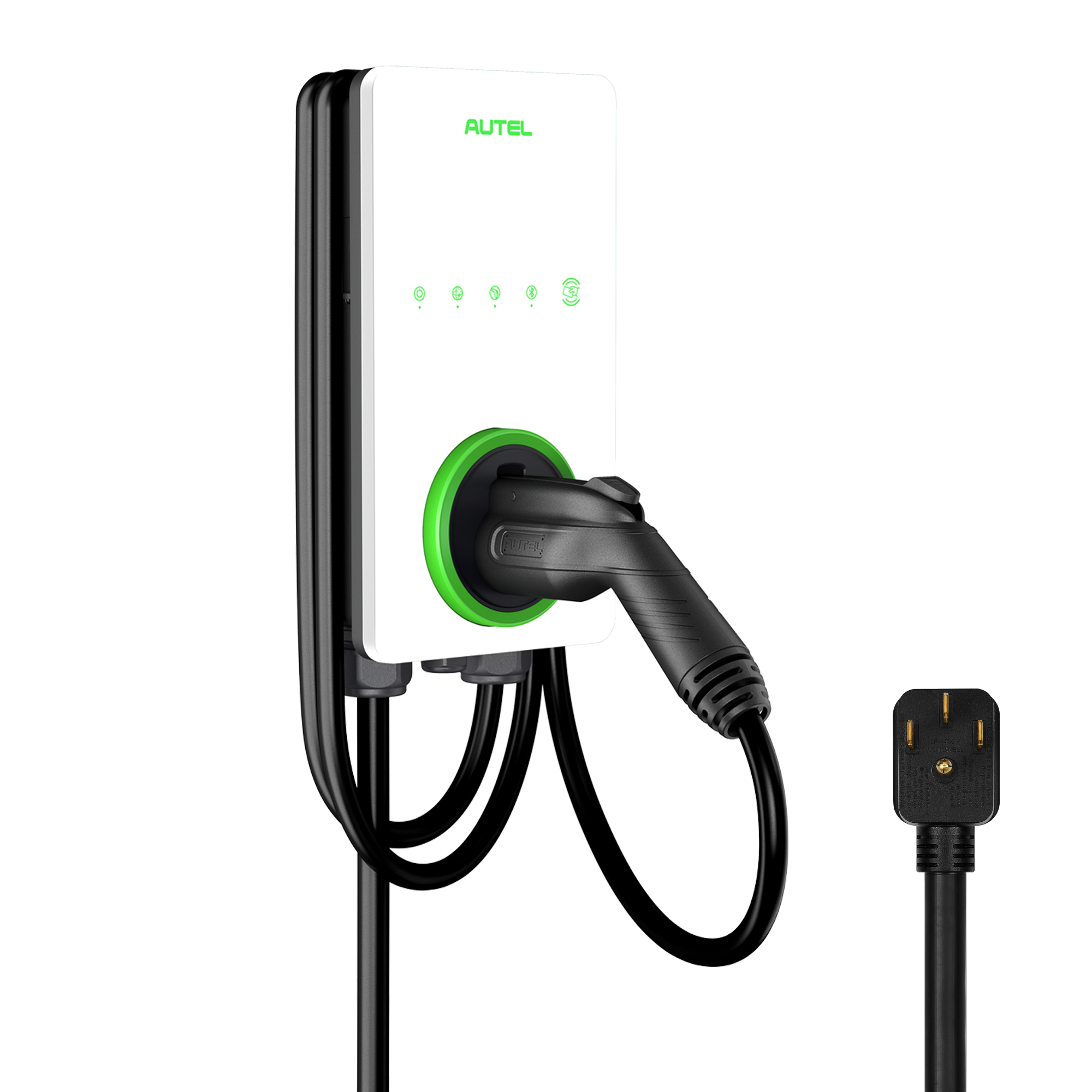

Autel MaxiCharger AC Lite Home 40A EV Charger

Smart 9.6kW Level 2 Electric Vehicle Charging Station, NEMA 14-50 Plug-In Convenience, Autel Charge App, Dual-Band Wi-Fi & Bluetooth, NEMA 4 Weatherproof, and 25-Foot Heavy-Duty J1772 Cable

Optimize your home charging setup and enjoy fast, reliable Level 2 speeds at an accessible price point with the Autel MaxiCharger AC Lite Home 40A EV Charger. Built as a streamlined, highly cost-effective home charging station, this versatile plug-and-play unit delivers up to 9.6kW (40 Amps) of continuous power. Charging up to 5 times faster than standard Level 1 emergency wall outlet cords, it adds up to 32 miles ($51\text{ km}$) of driving range per hour of charge—ensuring your electric vehicle or plug-in hybrid (PHEV) is topped up and ready to go every morning.

The MaxiCharger AC Lite is housed in a compact, sleek NEMA 4 weatherproof enclosure that stands up to heavy rain, snow, blowing dust, and ice, making it perfect for outdoor driveways or indoor garage installations. It comes pre-wired with an exceptionally long 31.5-inch NEMA 14-50 power plug for ultimate installation flexibility, allowing you to easily mount the unit and plug it directly into a standard 240V laundry-style outlet. Powered by the intelligent Autel Charge app, you can easily schedule charging sessions during cheap off-peak hours, track real-time power metrics, and manage secure access via Wi-Fi, Bluetooth, or RFID.

Key Product Features & Core Engineering

• Fast 9.6kW Level 2 Performance: Delivers up to 40 Amps of reliable charging power (utilizes a dedicated 50A circuit breaker) to charge all EV and PHEV models efficiently.

• Plug-and-Play NEMA 14-50 Convenience: Features an extra-long, pre-wired 31.5-inch NEMA 14-50 supply plug that easily inserts into a standard 240V wall receptacle, making DIY mounting quick and saving on complex wiring costs.

• Smart Autel Charge App: Remotely start, stop, monitor, and schedule charging sessions. Input your local utility provider's Time-of-Use (TOU) rates to automatically charge when electricity is cheapest.

• All-Weather NEMA 4 Rating: Engineered to resist dust, heavy rain, snow, and ice, operating reliably in outdoor temperatures ranging from $-40^\circ\text{F}$ to $131^\circ\text{F}$ ($-40^\circ\text{C}$ to $55^\circ\text{C}$).

• User Interface LED Indicators: Designed with prominent front-facing LED indicators for Power, Wi-Fi, Charging, and Bluetooth status for easy, at-a-glance visual checkups.

• Premium 25-Foot Lightweight Cable: Equipped with a thin, highly flexible 25-foot cord that easily reaches your EV's charge port and stays pliable in freezing winter conditions.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Autel MaxiCharger AC Lite Home 40A Charger with Integrated NEMA 14-50 Plug & 25-Foot Cable

• 1 × Heavy-Duty Wall Mounting Bracket & Security Hardware Fasteners

• 1 × Integrated Cable Holster and Hook Organizer

• 1 × Master Installation Guide, QR Code App Pairing Card, and User Manual

Critical Field Installation & Operational Guidelines

• Outlet Orientation Alignment: Due to safety regulations, the NEMA 14-50 power plug on the unit is pre-molded. Be sure to have your electrician install the 240V wall outlet with the round ground pin facing downward. This allows the charger to hang flush against the wall naturally without putting a heavy twist or strain on the supply cord.

• Flexible Installation Options: While designed for simple plug-and-play setup via the pre-wired NEMA 14-50 cord, the AC Lite 40A features rear and bottom knockouts. If you prefer a completely clean aesthetic with wires hidden inside the drywall, a licensed electrician can easily remove the plug and convert the unit to a permanent hardwired installation.

• Smart App Off-Peak Scheduling: Pair your charger with the Autel Charge app via Bluetooth or your home's 2.4GHz Wi-Fi network. By setting up charging schedules to align with off-peak hours, you can significantly reduce your monthly charging costs.
