Autel MaxiCharger AC Elite Home 50A 12kW EV Charger | CA
Choose options

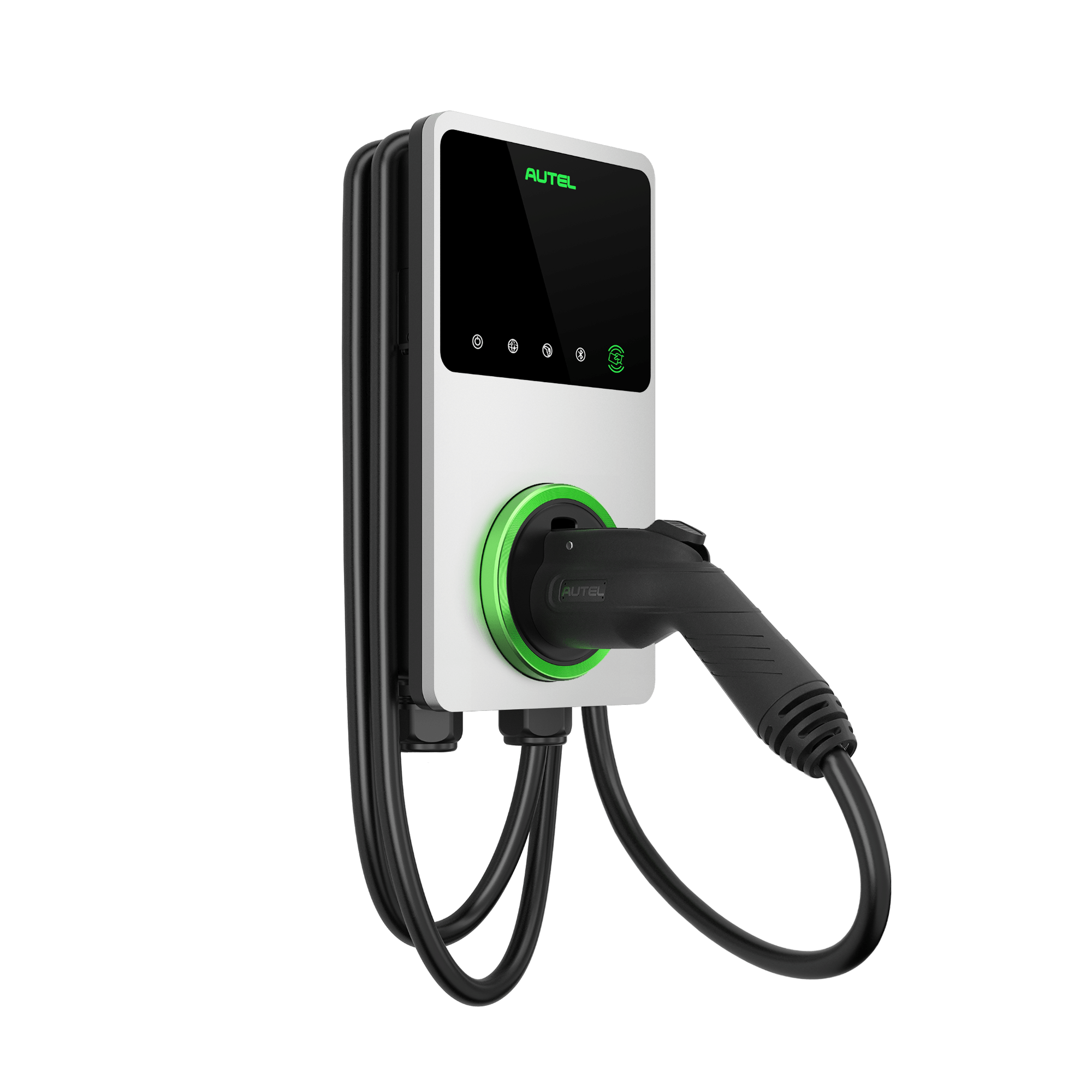

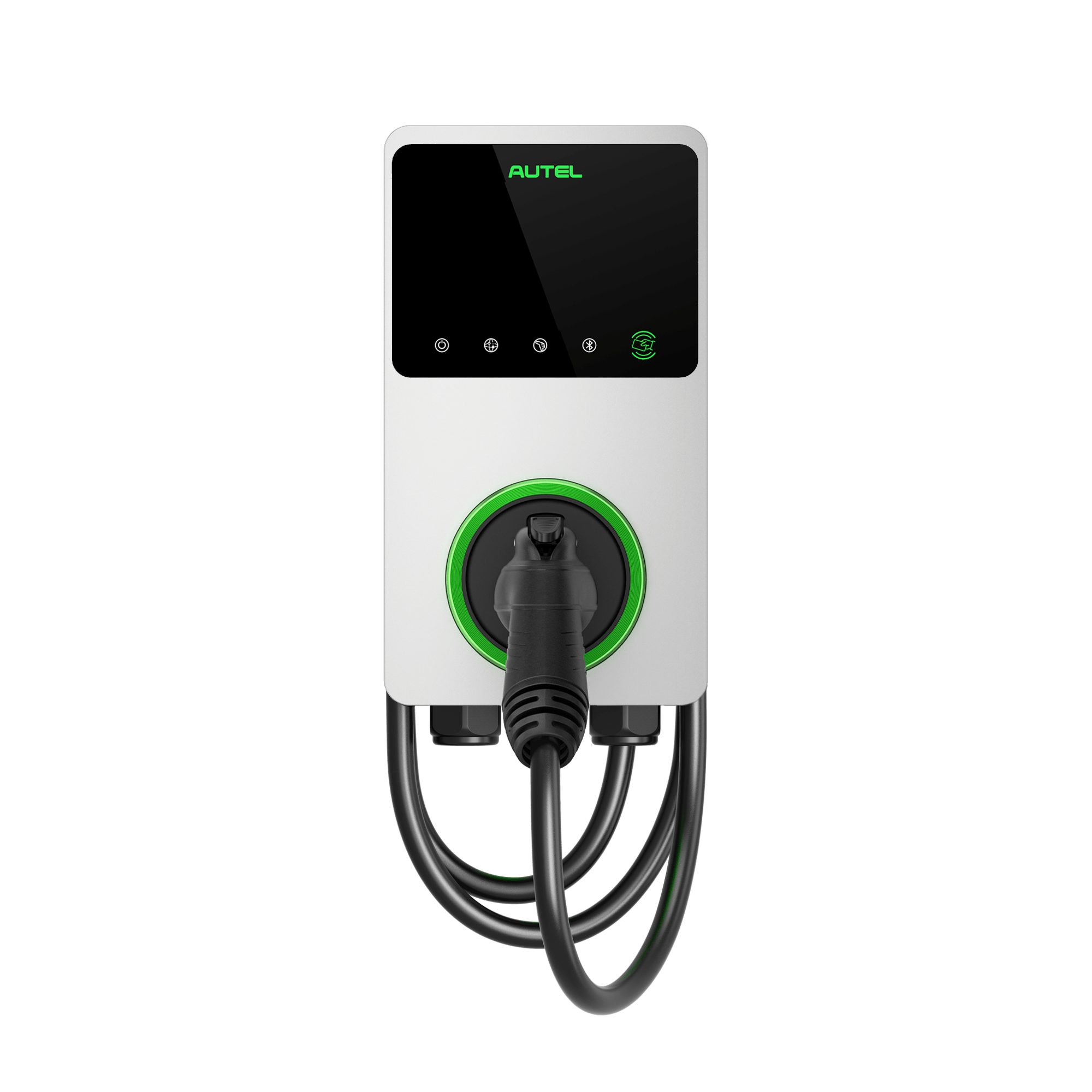

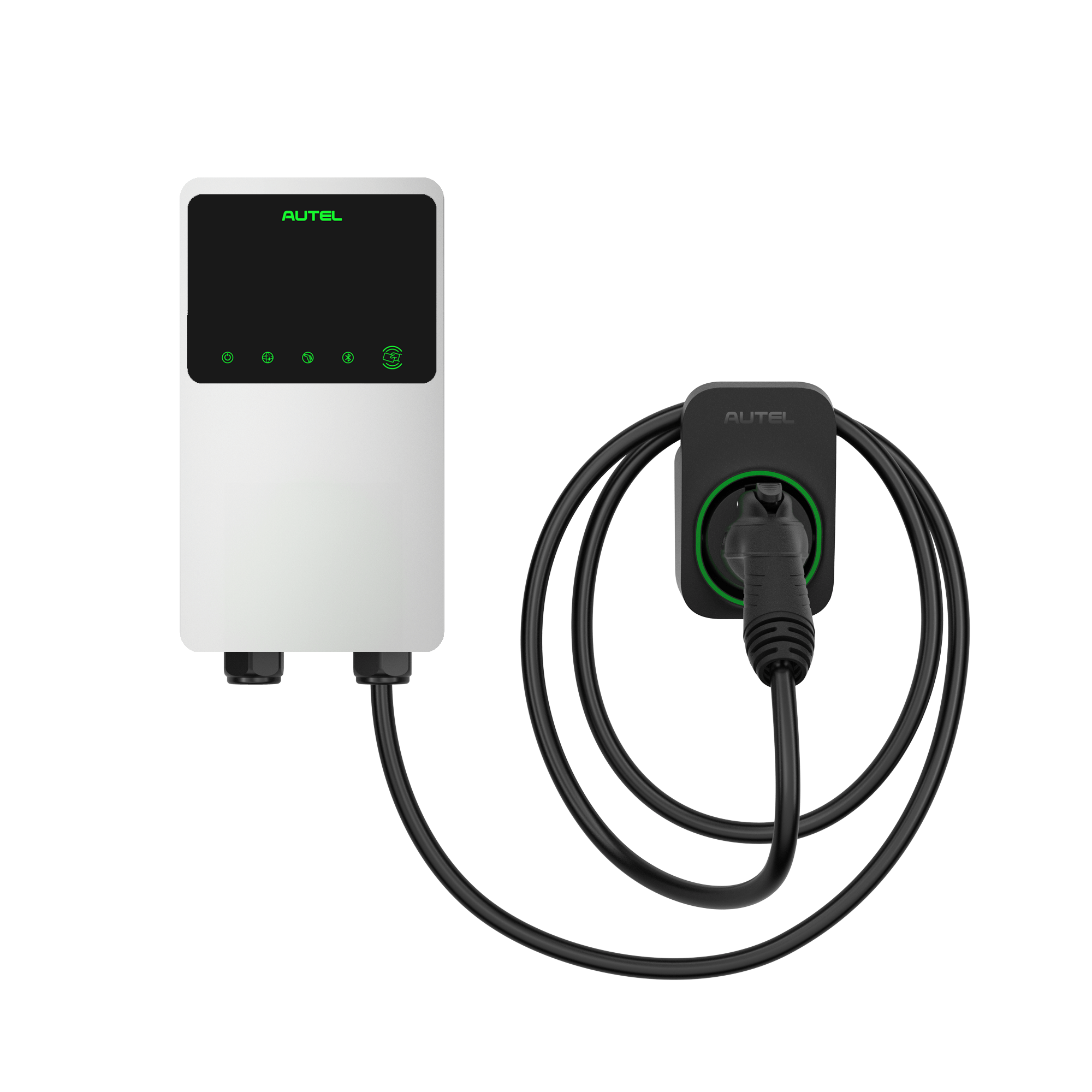

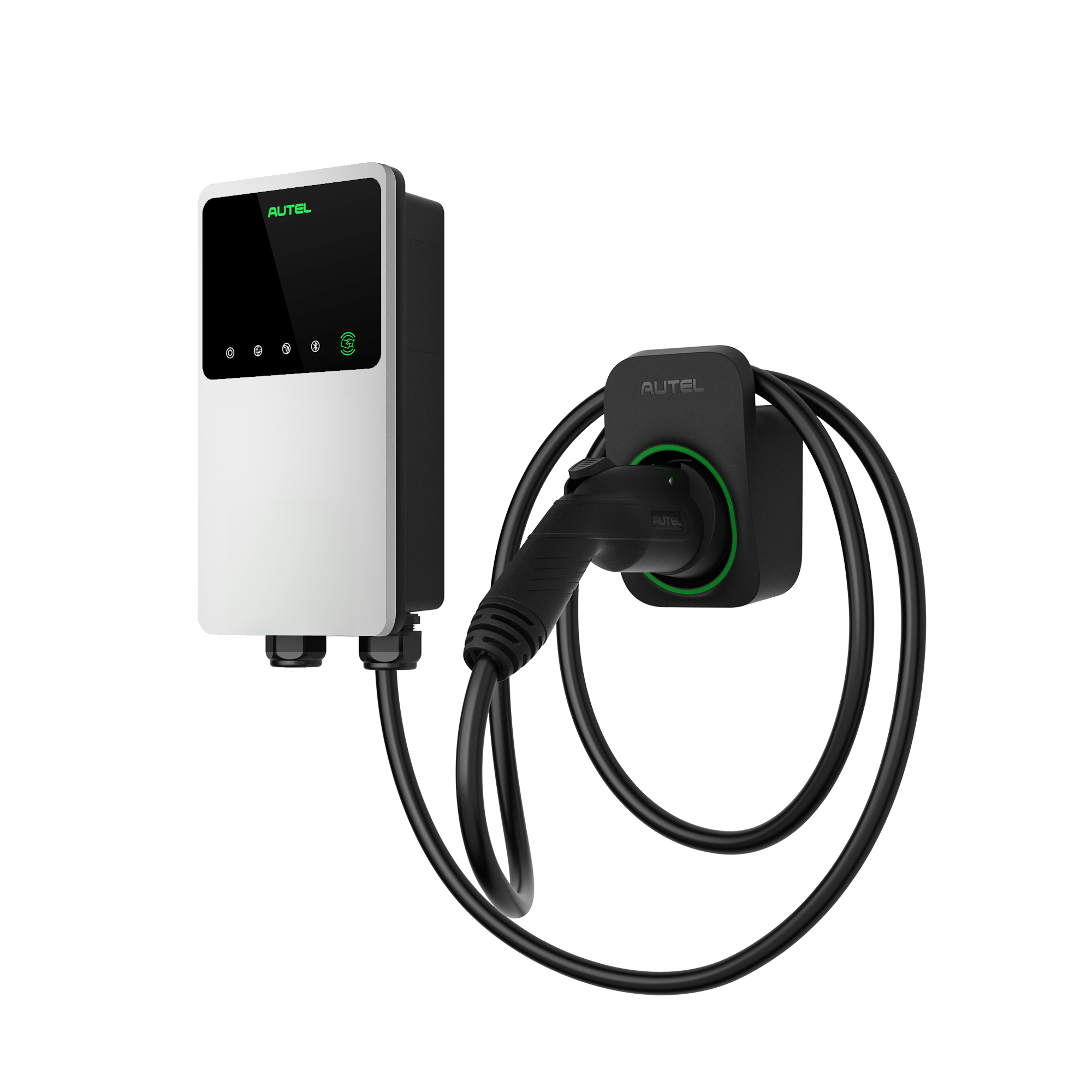

The Autel MaxiCharger AC Elite Home 50A is a premium, high-performance Level 2 electric vehicle charger engineered for North American homes and extreme climate environments. Capable of delivering up to 12 kW of power (240V @ 50A), it provides fast residential charging—adding up to 78 km (48 miles) of range per hour, which is up to 9 times faster than standard Level 1 trickle chargers.

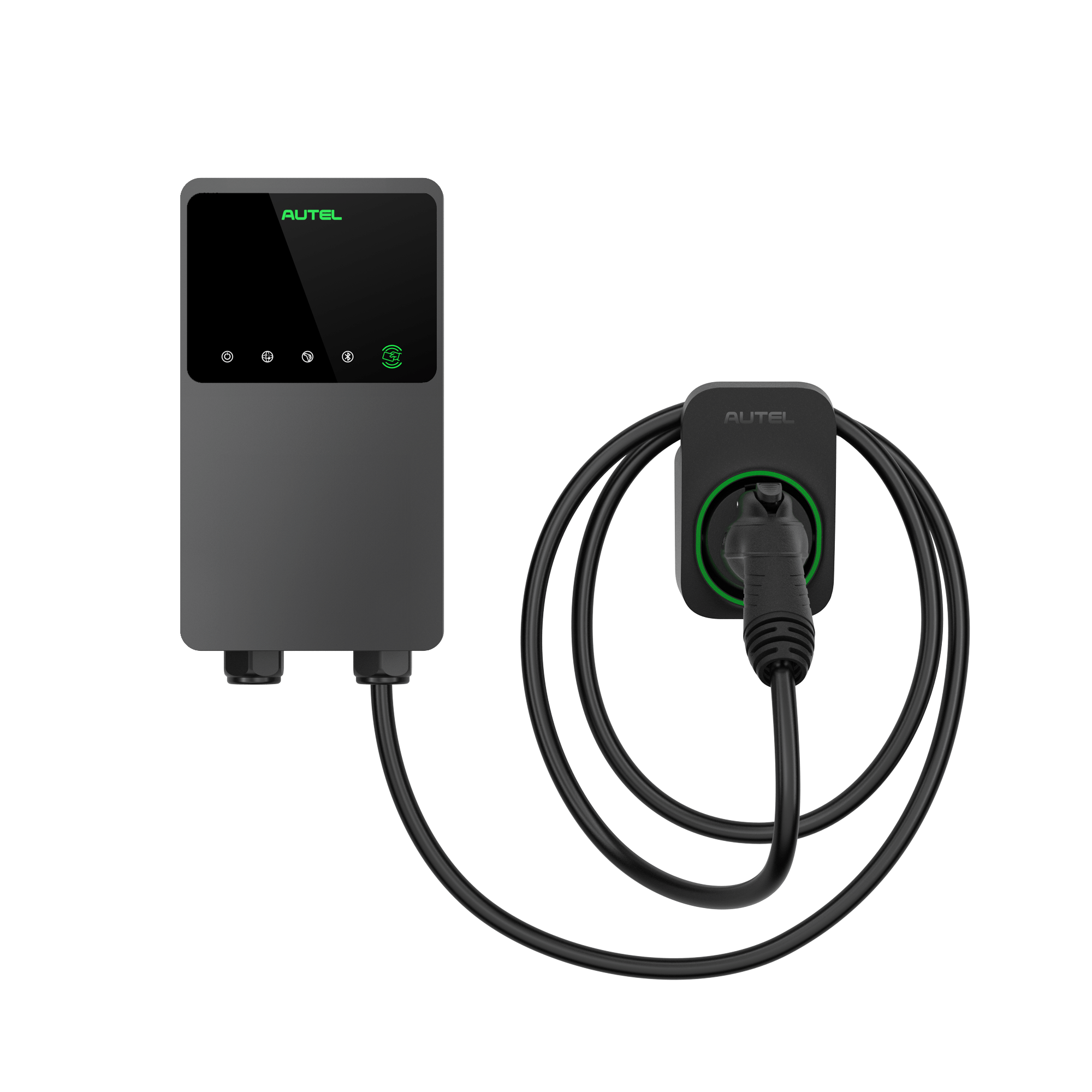

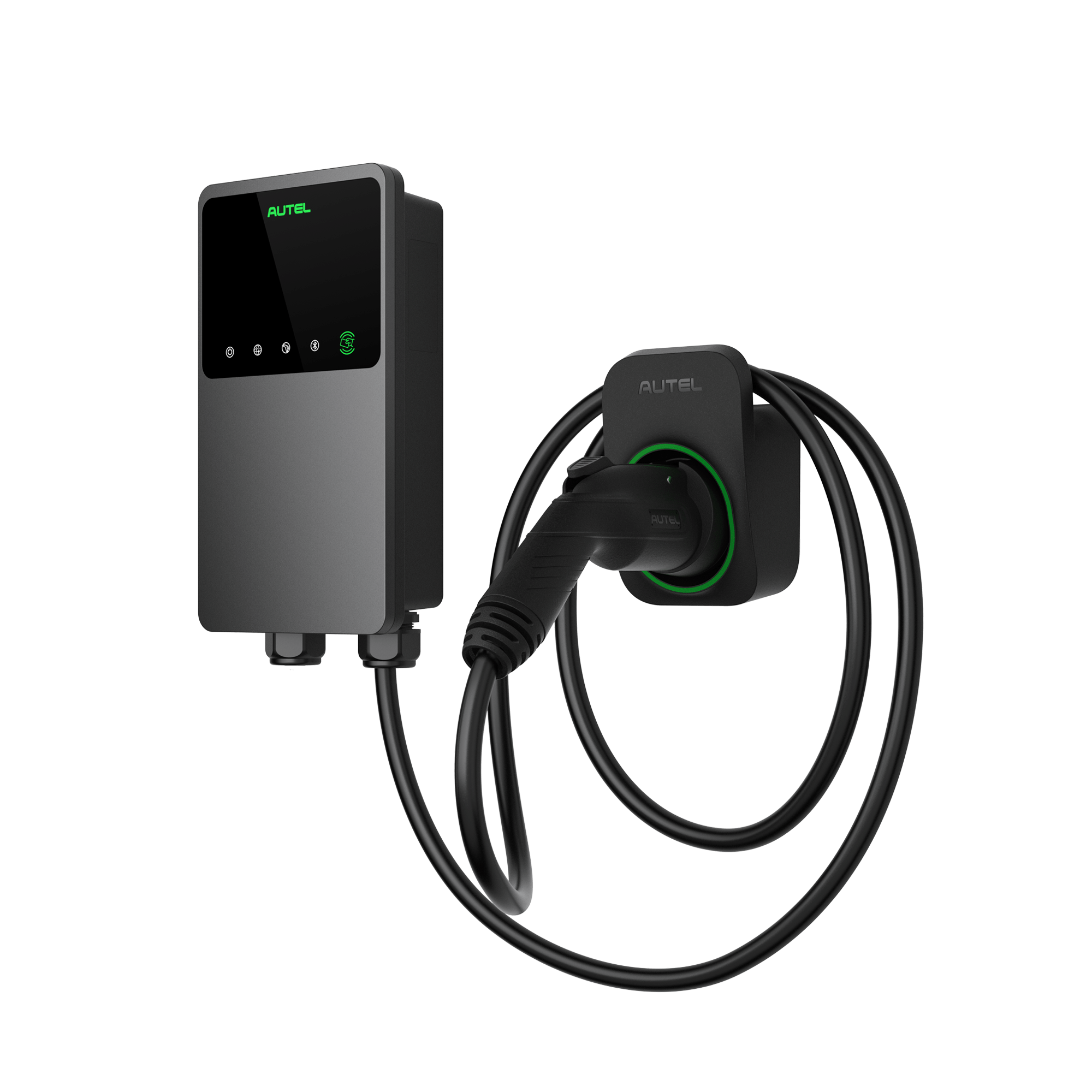

Featuring a sleek dark gray enclosure with an in-body holster and a 25-foot charging cable, the Elite Home 50A is built to endure harsh Canadian weather with a NEMA 4X water/dust rating and cold-weather operation down to -40°C (-40°F). Equipped with Bluetooth, Wi-Fi, Ethernet, and dynamic load balancing (DLB), it allows for total control and energy scheduling through the Autel Charge Mobile App.
Key Product Features & Core Technology
-
12 kW Rapid Level 2 Charging: Delivers up to 50 Amps of continuous current on a dedicated circuit, adding up to 78 km (48 miles) of range per hour of charge.
-
Flexible Amperage Control: Output current can be dynamically adjusted via internal DIP switches or the Autel Charge App (16A, 24A, 32A, 40A, 48A, or 50A) to match household electrical panel capacity.
-
Rugged NEMA 4X & IK10 Weatherproofing: Built with heavy-duty weather and impact resistance, tested to operate flawlessly in extreme conditions from -40°C to +55°C.
-
Smart App & Connectivity Hub: Connects via Bluetooth, Wi-Fi, Ethernet, CAN, and RS485. Allows users to schedule off-peak charging, track energy bills, adjust current, and receive real-time notifications.
-
Dynamic Load Balancing (DLB): Integrated load management prevents home circuit overloads by automatically adjusting charger output relative to total household power consumption.
-
Smart AI Voice Control: Fully compatible with Siri and Autel's AI voice assistant for hands-free start/stop and charging status checks.
-
Safety & Rebate Certified: Fully CSA C22.2 certified for Canadian electrical safety standards and ENERGY STAR certified for peak energy efficiency and utility rebate eligibility.
Technical Specifications Summary
| Specification / Parameter | Detail |
| Brand / Model | Autel MaxiCharger AC Elite Home 50A (Maxi US AC W12-H) |
| Max Output Power | Up to 12 kW @ 240V AC (50 Amps) |
| Input Voltage / Frequency | 208V / 240V AC, Single Phase, 60 Hz |
| Adjustable Amperage Range | 16A, 24A, 32A, 40A, 48A, 50A (App & DIP switch configurable) |
| Connector Type | Universal SAE J1772 (or NACS Tesla options available) |
| Charging Cable Length | 25 feet (7.6 meters) |
| Enclosure Rating | NEMA 4X (Outdoor / Indoor rated, water, ice, and dust resistant) |
| Operating Temperature | -40°F to 131°F (-40°C to +55°C) |
| Network Connectivity | Bluetooth, Wi-Fi, Ethernet (RJ45), RS485, CAN |
| User Authentication | Autel Charge App, AutoStart, RFID Card (optional) |
| Safety Certifications | CSA Certified, UL 2594, UL 2231-1/2, FCC Class B, ENERGY STAR |
| Unit Dimensions (H × W × D) | 13.2" × 7.4" × 3.35" (336 mm × 187 mm × 85 mm) |
| Unit Weight | ~14.8 lbs (6.7 kg) |
| Warranty | 3-Year Limited Manufacturer Warranty |
Package Contents
-
1 × Autel MaxiCharger AC Elite Home 50A Main Wallbox
-
1 × 25-Foot Universal J1772 Charging Cable with In-Body Holster
-
1 × Wall Mounting Bracket & Fastener Hardware Kit
-
1 × Wall Anchor Template
-
1 × User Installation & Operations Manual
Safety & Installation Guidelines
Electrical Circuit Requirements: A dedicated 60 Amp double-pole circuit breaker is required to continuously operate the charger at its maximum 50 Amp output setting (per the 80% continuous load rule under NEC / Canadian Electrical Code).
Hardwire Installation: For maximum 50A output and outdoor durability, hardwired installation by a licensed electrician is required.
Cold Weather Cable Care: While rated for -40°C, extreme sub-zero temperatures may cause rubber cables to stiffen. Uncoil the cable prior to freezing rain or heavy snowfall to prevent kinking.
